Model 3/Y Auto Present Door Handle (V5 Pro) Installation Instruction

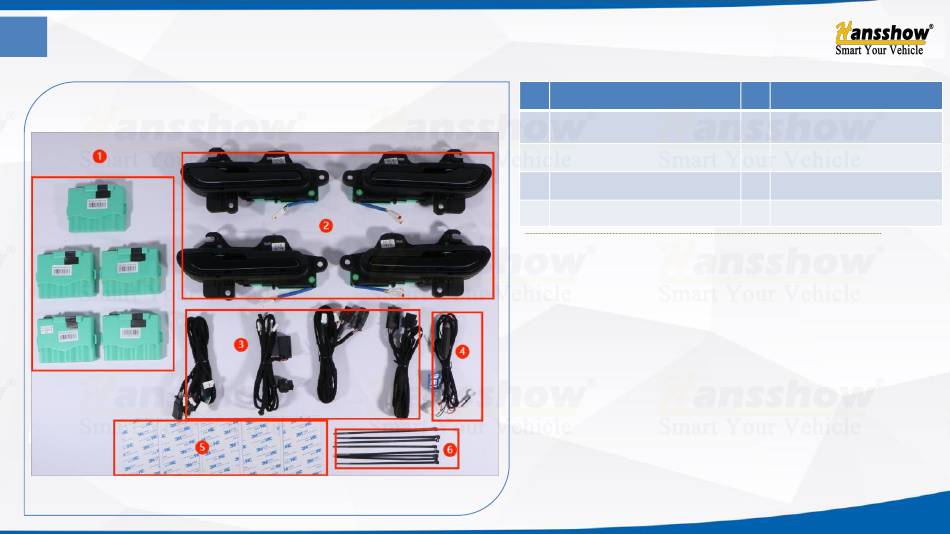

Packing List
Five control boxes
①

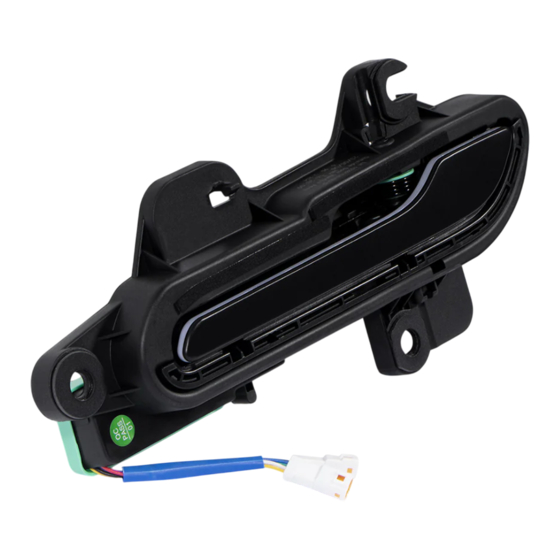

Auto door handle
②
Auto door handle adapter cable
③
Main control box power cable
④
1. Tools required for installation
Plastic pry bar; Socket screwdriver
2. Installation precautions
Note: To expedite the installation process, please carefully
read this instruction manual.
Five pieces of 3M adhesive
⑤
Cable ties
⑥
⑦
⑧
Advertisement
Related Manuals for Hansshow V5 Pro
Summary of Contents for Hansshow V5 Pro
- Page 1 Model 3/Y Auto Present Door Handle (V5 Pro) Installation Instruction Packing List Five control boxes Five pieces of 3M adhesive ① ⑤ Auto door handle Cable ties ② ⑥ Auto door handle adapter cable ③ ⑦ Main control box power cable ④...
- Page 2 +1-949 3584 793 provided that include all parts of the product and can display the damage. (If the product is Email: support@hansshow.com notified of the damage after installation, claims and reissues will not be accepted, and you will need to purchase the parts again at your own expense.)
- Page 3 Installation Step 1. Loosen these two screws 2. Pry open this and then unscrew the screw 4. Use a pry bar to pry it open and then lift it 3. Pry open this speaker and then upwards to remove the door trim panel unplug the connector...
- Page 4 Installation Step 6. Loosen these two screws (with the 5. Unplug the door connector window raised to the highest position) 7. Remove the window sealing strip and 8. Loosen the surrounding screws then lift the glass upwards to extract it...
- Page 5 Installation Step 10. Pry open the connector of the wires inside 9. Loosen the screws around the speaker the interior trim panel and unplug it 12. Loosen the screws along these three locations 11. Remove the interior trim panel and unplug the door handle connector...
- Page 6 Installation Step 14. Loosen these two screws to remove 13. Pull out the plug the original vehicle module 15. Install the original vehicle module 16. Tighten the three securing screws onto the power door handle...
- Page 7 Installation Step 18. After plugging in the connector, remove 17. Plug in the colorful door handle connector the plug of the original vehicle lock block 19. Connect the adapter plug to the original 20. Secure the wires along the original vehicle vehicle plug, and connect the other plug to harness using cable ties (pay attention to the the original vehicle lock block...
- Page 8 Installation Step 22. Align the holes with the clamp of the window 21. Tighten the screws regulator and tighten the screws to secure it 24. Attach the control box to the back using 3M 23. Secure the speaker by tightening adhesive, then plug in the adapter cable connector the screws...
- Page 9 Installation Step 25. Restore the original connection 26. After installing the window of the wires in the car door sealing strip, reinstall the car door 28. Loosen the two screws, pry open the clips, 27. Secure the three screws and and lift the door upwards to remove it then install the speaker...
- Page 10 Installation Step 30. Pry open the window rubber seal and 29. Disconnect the door wires remove it (the rubber seal has small clips inside) 31. Loosen the two screws and remove 32. Loosen the screws around the the car window inner panel...
- Page 11 Installation Step 33. After unplugging the connector, pry 34. Remove the original door handle open the fastening wires from the inner and install the auto door handle (follow panel and remove the inner panel the same installation method as before) 35.
- Page 12 Installation Step 38. Pry open this clip and remove the kick plate 37. Remove this trim panel 40. Plug the power cable (white plug) into 39. Pry open this clip and pull it the control box towards the left...
- Page 13 Installation Step 41. Connect the blue male plug to the blue 42. Remove the cover of the frunk female plug (original vehicle) 44. Loosen the screws (the same applies to 43. Loosen these four screws (after removing the left and right sides) the pad, there are two screws inside)
- Page 14 Installation Step 46. Guide the threading tool along the rubber 45. Remove the cover plate grommet to the passenger footwell area 48. Secure the positive and negative wires by tightening 47. Wrap the positive and negative wires with the screws and use cable ties to secure the wire harness. the threading tool and pull them to the battery Then, restore the vehicle to its original state location.
- Page 15 Common Troubleshooting Guide Problem Reason Solution How to switch the light color? Switch the light color by manually clicking the Please refer to the detailed pictures for instructions button inside the door handle How many colors are there for There are seven colors available for switching: switching? Colorful, White, Green, Blue, Yellow, Red, and Purple...
