2022 Model S Power Frunk Installation Manual (YXW)
Note:
1. The installation instructions may be slightly different
from the actual operation. If there is any difference,
please contact us according to the actual situation.
2. Warning: Please do not disassemble any part by
yourself,any improper operation will not be covered by
our warranty.
3. Before installing the product, please turn off the
vehicle power supply and cut off the negative pole of the
battery on the frunk.
4. Before installing the product, watch the installation
video and instructions carefully.

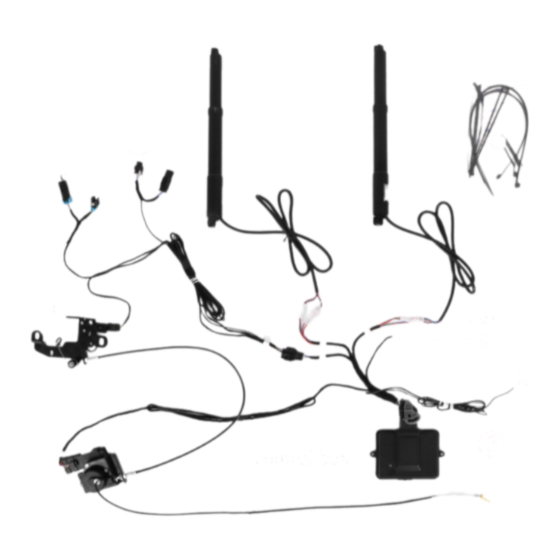

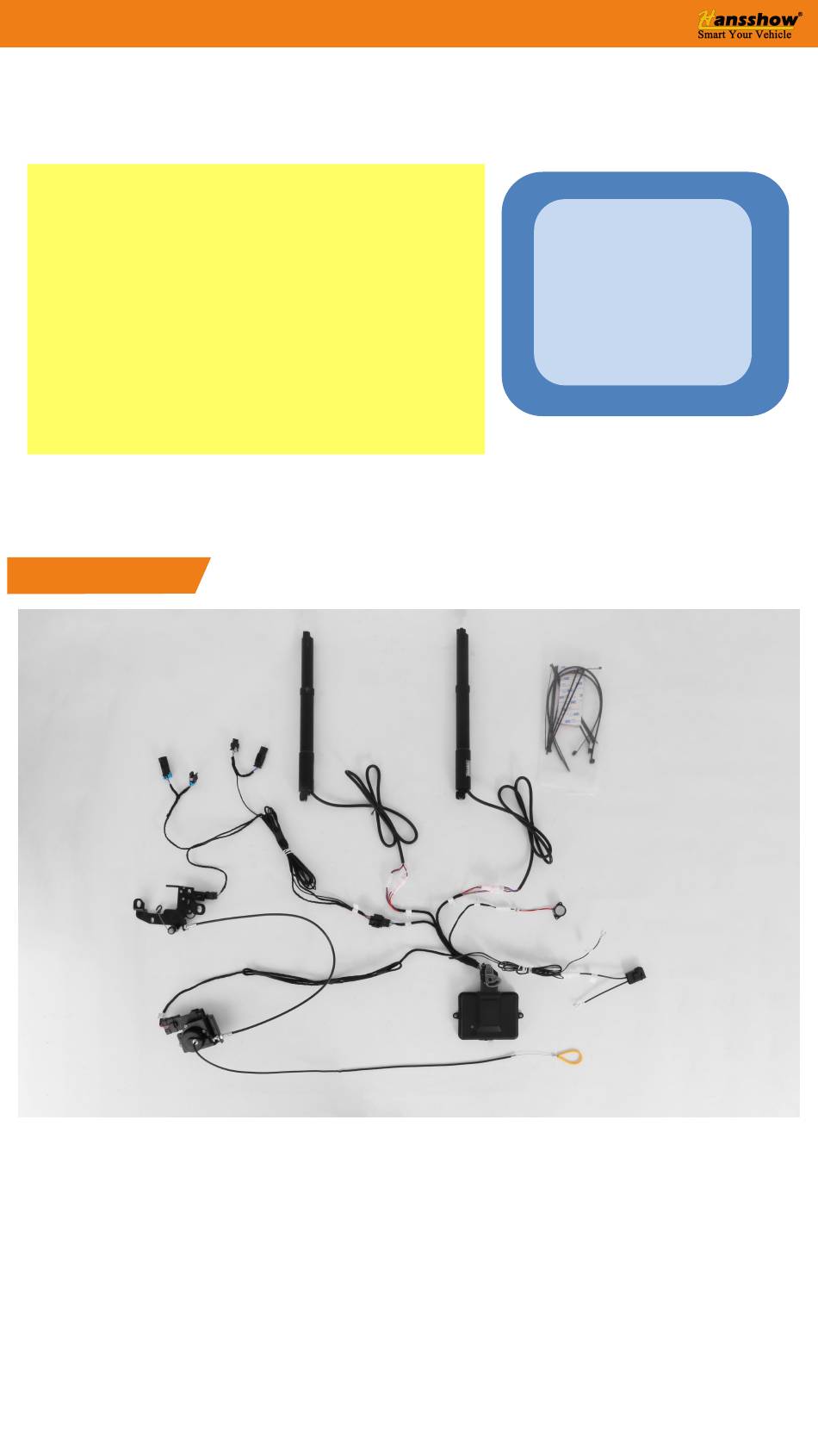

Product List
adapter plug for
original lock block
adapter plug for
original lock motor
③
④
lock block
suction lock
①
strut(L&R)
②
control box
Aftersale Service:
+86 156 2278 2181
(phone/whatsapp)
①
buzzer
⑥
emergency cable
cable tie
GND negative pole
⑤
12V positive pole
Advertisement
Related Manuals for Hansshow PLGM
Summary of Contents for Hansshow PLGM
- Page 1 2022 Model S Power Frunk Installation Manual (YXW) Note: 1. The installation instructions may be slightly different from the actual operation. If there is any difference, please contact us according to the actual situation. Aftersale Service: 2. Warning: Please do not disassemble any part by yourself,any improper operation will not be covered by +86 156 2278 2181 our warranty.
- Page 2 2022 Model S Power Frunk Installation Manual (YXW) Adjustment mode and steps: 1. Open the frrunk to the highest position; 2. Press the black button on the control box until you hear the sound from the control box. If you hold on long enough, you will hear a beep sound, up to sounds: First sound: save the opening height of the frunk,...
- Page 3 2022 Model S Power Frunk Installation Manual (YXW) Installation Steps ① ② ③ ④ 2. Remove the trim panel cover in 1.Remove the frunk trim panel sequence as shown in the picture Remove 3. Remove the air conditioner 4. Remove the Frunk spare box trim panel cover (remove the orginal vehicle screws first)
- Page 4 2022 Model S Power Frunk Installation Manual (YXW) 2. 饰板盖拆除 7. Unscrew two screws and 8. Remove the original lock remove the lock block of the block spring original vehicle 9.After remove the spring, buckle 10.Then combine the equipped t h e e l e c t r i c s u c t i o n b u c k l e lock block and the original lock equipped with the lock module to block together, and then install...
- Page 5 2022 Model S Power Frunk Installation Manual (YXW) Connect the 12V power to After plug in the control box this position of the original and buzzer，the control box vehicle and wrapped with plug should be faced down, electrical tape a n d t h e n f i n d a s u i t a b l e Connect the negative pole position and fix it with a tie to the negative grounding...
- Page 6 2022 Model S Power Frunk Installation Manual (YXW) suction lock The electric suction lock must be pasted under the lock block of the original vehicle (behind the front bumper) and fixed with cable tie to prevent water from entering. The emergency cable shall be routed to the front trailer port of the original vehicle Fixing position of emergency cable After prying off the trailer cover of the front bumper, tie the emergency...
