Copeland Site Supervisor 818-7241 Quick Start Manual

Site Supervisor

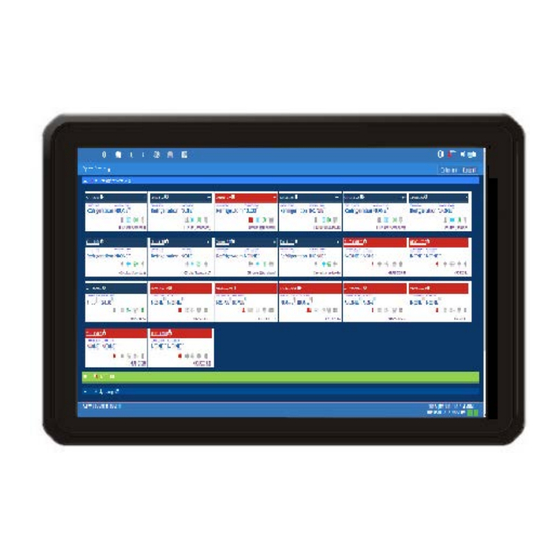

15.6-Inch Display (P/N 818-7241)
The Site Supervisor 15.6-Inch Display (P/N 818-7241) is a remote user
interface for the Site Supervisor that connects to the controller using the
Ethernet network through the Ethernet port. The Site Supervisor UI
allows users to perform critical actions in the controller quickly.
Functions such as lighting overrides, controlling heating and cooling
stages, status information, and viewing alarms can all be performed
using the 15.6-Inch Display
General Warnings and Safety Precautions
• The Display should not be used for purposes different from those described in this guide. It cannot be used as a
safety device.
• When using an external power supply, it is necessary to separate the power of the device from the rest of the
electrical devices connected inside the electrical panel.
• Disconnect all electrical connections before any kind of maintenance is performed.
WARNING
• Do NOT open the Site Supervisor Display. Do NOT open the panel rear cover when power is applied.
• Check that the supply voltage is correct before connecting.
• Do not expose to water or moisture: use the controller only within its operating limits to avoid sudden temperature
changes with high atmospheric humidity to prevent condensation.
• Wire polarity must be observed: a wrong connection may cause possible malfunctioning and damage to the
controller or display.
For a copy of the full Supervisor Guide (P/N 026-1803), visit
monitoring-systems/facility-controls-electronics
026-4054 R5
©2024 Copeland LP.
https://www.copeland.com/en-us/products/controls-
or contact Copeland Customer Service at 770-425-2724.
QUICK START GUIDE
