Screw Listing
Where used:
1 One screw that secures the memory expansion compartment cover to the
base enclosure (documented in Section 5.4, step 3)
2 One screw that secures the mini PCI compartment cover to the top cover
(documented in Section 5.6, step 3)

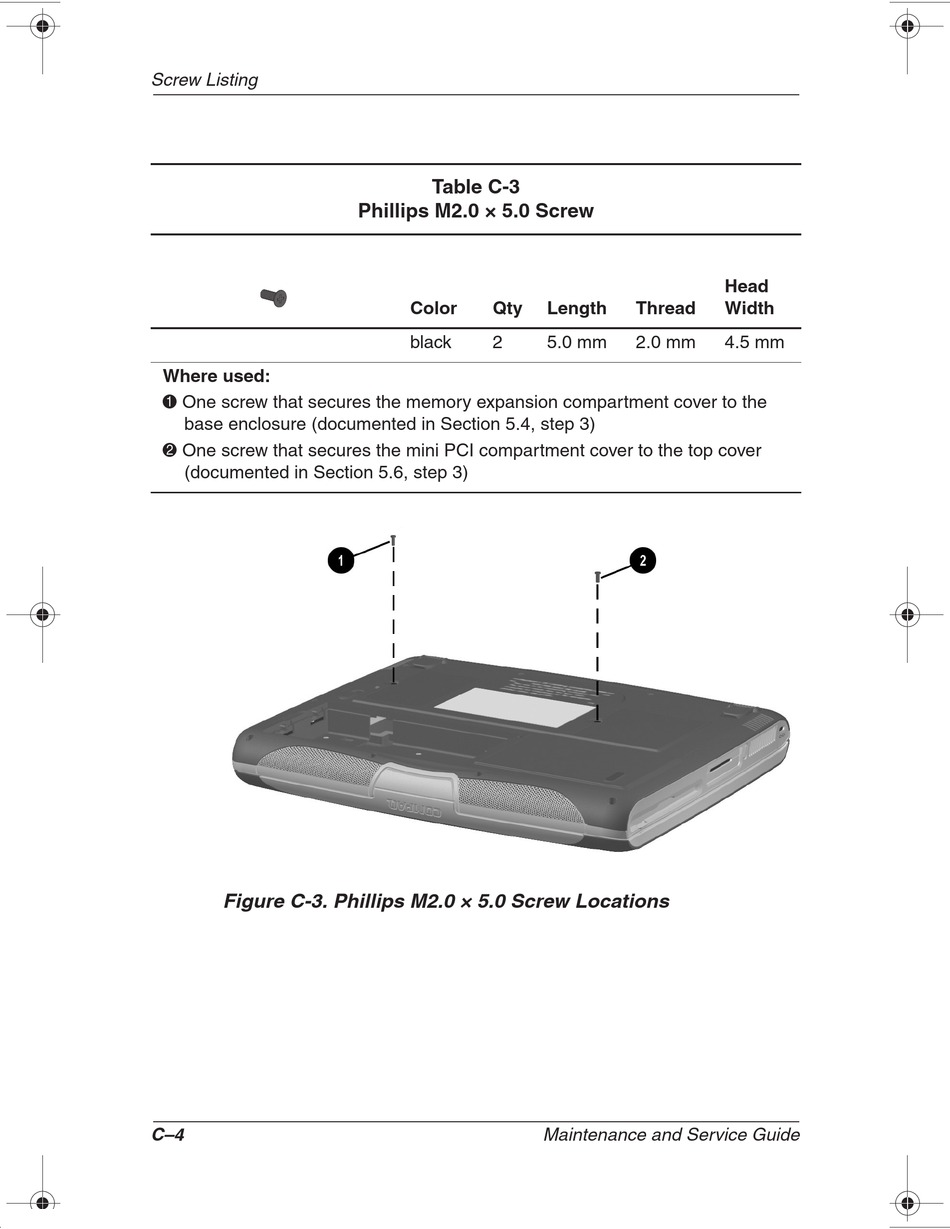

Figure C-3. Phillips M2.0 × 5.0 Screw Locations
C–4
Table C-3
Phillips M2.0 × 5.0 Screw
Color
black
Qty Length
2 5.0 mm
Maintenance and Service Guide
Head
Thread Width
2.0 mm 4.5 mm
