Industrial Electronic Devices
User Manual
Revision 1.010
English
Ethernet / DeviceNet master - Converter
(Order Code: HD67154-A1, HD67154-B2)
For Website information:
www.adfweb.com?Product=HD67154
For Price information:
www.adfweb.com?Price=HD67154-A1
www.adfweb.com?Price=HD67154-B2
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com S.r.l.
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
User Manual Ethernet / DeviceNet master
Document code: MN67154_ENG
Revision 1.010
For other DeviceNet products see also the following link:
DeviceNet Slave from/to
www.adfweb.com?Product=HD67043
www.adfweb.com?Product=HD67058
www.adfweb.com?Product=HD67134
www.adfweb.com?Product=HD67136
www.adfweb.com?Product=HD67137
www.adfweb.com?Product=HD67138
www.adfweb.com?Product=HD67139
www.adfweb.com?Product=HD67140
www.adfweb.com?Product=HD67141
www.adfweb.com?Product=HD67235
www.adfweb.com?Product=HD67554
DeviceNet Master from/to
www.adfweb.com?Product=HD67151
www.adfweb.com?Product=HD67152
www.adfweb.com?Product=HD67153
www.adfweb.com?Product=HD67555
Do you have an your customer protocol? See the following link:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
in India
Page 1 of 24
(Ethernet)
(M-Bus)
(CANopen SDO Client)
(CANopen SDO Server)
(J1939)
(Modbus Slave)
(Modbus TCP Client)
(Modbus TCP Server)
(Modbus Master)
(CAN)
(PROFIBUS)
(Modbus Slave)
(Modbus TCP Server)
(CANopen)
(PROFIBUS)
Advertisement
Table of Contents
Related Manuals for Axis ADF web HD67154-A1
Summary of Contents for Axis ADF web HD67154-A1
- Page 1 Do you have an your customer protocol? See the following link: www.adfweb.com?Product=HD67003 Do you need to choose a device? do you want help? Ask it to the following link: www.adfweb.com?Cmd=helpme User Manual ADFweb.com S.r.l. Axis Solutions Pvt Ltd is the Authorized Distributor of in India www.axisindia.in | info@axisindia.in...
-
Page 2: Updated Documentation
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 2 of 24 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you Page that you need to check that the following document is: INDEX Updated UPDATED DOCUMENTATION... -
Page 3: Security Alert
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 3 of 24 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Connection Scheme
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 4 of 24 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67154-A1 ADFweb.com S.r.l. - Page 5 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 5 of 24 Industrial Electronic Devices Figure 1b: Connection scheme for HD67154-B2 ADFweb.com S.r.l.

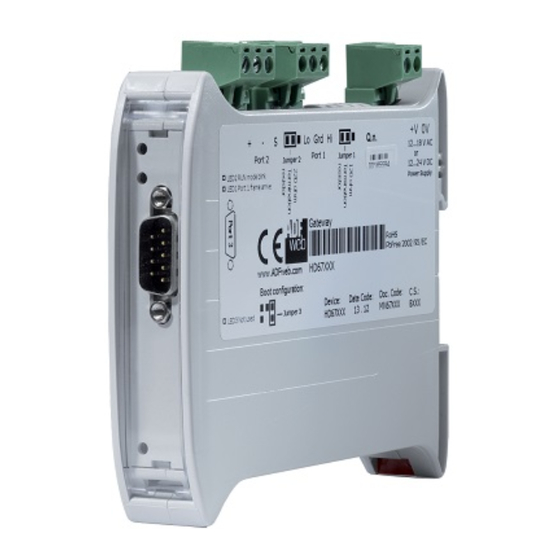

- Page 6 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 6 of 24 Industrial Electronic Devices CHARACTERISTICS: The HD67154-A1 and HD67154-B2 are converters from Ethernet to DeviceNet master and vice-versa. They have the following characteristics: Up to 63 DeviceNet slaves devices; Triple isolation between Ethernet - Power Supply, Ethernet - DeviceNet, Power Supply - DeviceNet.
-
Page 7: Power Supply
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 7 of 24 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax... -
Page 8: Function Modes
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 8 of 24 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’... - Page 9 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 9 of 24 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
- Page 10 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 10 of 24 Industrial Electronic Devices DEVICENET: For terminating the DeviceNet line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ for the HD67154-A1 or Dip2 of ‘Dip- Switch B’...
- Page 11 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 11 of 24 Industrial Electronic Devices USE OF COMPOSITOR SW67154: To configure the Converter, use the available software that runs with Windows called SW67154. It is downloadable on the site www.adfweb.com and its operation is described in this document.
-
Page 12: New Configuration / Open Configuration
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 12 of 24 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “Ethernet / DeviecNet Master - Converter”... -
Page 13: Software Options
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 13 of 24 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 14: Set Communication
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 14 of 24 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two buses Ethernet and DeviceNet. By pressing the “Set Communication” button from the main window for SW67154 (Fig. 2), the “Set Communication”... -
Page 15: Devicenet Network
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 15 of 24 Industrial Electronic Devices DEVICENET NETWORK: By pressing the “DeviceNet Network” button from the main window for SW67154 (Fig. 2), the window “DeviceNet Network” appears (Fig. Here it is possible to define the slaves DeviceNet Devices with their ID, number of Input and number of Output bytes. -
Page 16: Update Device
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 16 of 24 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device UDP” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 17 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 17 of 24 Industrial Electronic Devices If you know the actual IP address of the device you have to use this procedure: Turn on the Device with the Ethernet cable inserted; Insert the actual IP of the Converter;...
-
Page 18: Ethernet Protocol
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 18 of 24 Industrial Electronic Devices ETHERNET PROTOCOL: This protocol has got two functions for write and read frames. These routines can use both the UDP protocol and the TCP. UNCTION The request include the following byte: Byte Number... - Page 19 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 19 of 24 Industrial Electronic Devices RITE UNCTION The request include the following byte: Byte Number Description Type of Operation (Write = 2) ID of the Slave DeviceNet to Write Starting Address Hi Starting Address Lo Number of Byte to Write Hi...
- Page 20 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 20 of 24 Industrial Electronic Devices IAGNOSTIC With this command is possible to see if all the nodes defined in the “DeviceNet Network” table are in communication with the Converter The request include the following byte: Byte Number Description...
-
Page 21: Mechanical Dimensions
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 21 of 24 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67154-A1 Figure 8: Mechanical dimensions scheme for HD67154-B2 ADFweb.com S.r.l. -
Page 22: Ordering Informations
User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 22 of 24 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67154 – x x Connectors Type 1: Removable 5mm Screw Terminal 2: Fixed 5mm Screw Terminal Enclosure Type A: 1M, 35mm DIN Rail mounting... - Page 23 User Manual Ethernet / DeviceNet master Document code: MN67154_ENG Revision 1.010 Page 23 of 24 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
-
Page 24: Warranties And Technical Support
ADFweb.com S.r.l. Via Strada Nuova, 17 IT-31010 Mareno di Piave TREVISO (Italy) Phone +39.0438.30.91.31 Fax +39.0438.49.20.99 www.adfweb.com ADFweb.com S.r.l. Axis Solutions Pvt Ltd is the Authorized Distributor of in India www.axisindia.in | info@axisindia.in...
