Homelegance SH1171LB-36 Assembly Instruction

SKETCH
NO.
A
B
C
D
E
F
G
H
Step 1
C
G
7
6
5
8
DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED.
MADE IN VIETNAM
Thank you for purchasing this product. Please take time to read and follow
instructions below. Check that you have all parts and hardware before assembly. Parts
apparently missing are often found in packing matterials. If you do not have all parts
listed, call us and they be sent to you immediately
PARTS LIST
DESCRIPTION
TABLE TOP
TABLE LEAF
LEFT LEG
RIGHT LEG
MOUNTING PLATE
SHELF
LEFT SIDE PANEL
RIGHT SIDE PANEL
D
H
C
X8
D
G H
C
C
G
H
D
ASSEMBLY INSTRUCTION
ITEM NO:SH1171LB-36/SH1171DB-36

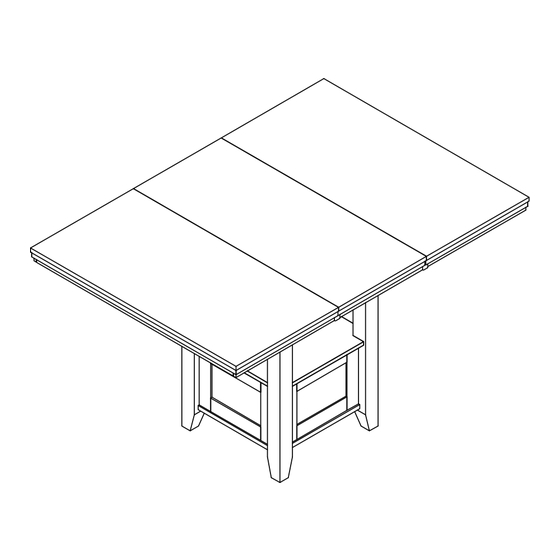

COUNTER HEIGHT TABLE
It is recommended to install protective pads under all legs and supports to avoid
damage or scratches when placing furniture on a wood floor or other hard surface,
and to limit indentation and prevent discoloration if placing on carpet.
Q'TY
DESCRIPTION
NO.
1 BOLT
1PC
2
LOCK WASHER
1PC
FLAT WASHER
3
2PCS
4 BOLT
2PCS
5
BOLT
6 LOCK WASHER
1PC
7 FLAT WASHER
1PC
ALLEN KEY
8
2PCS
**ABOVE HARDWARE ARE PACKED IN #SH1171LB-36/SH1171DB-36 FOR ASSEMBLY
2PCS
Step 2
Step 3
HARDWARE LIST
SIZE SKETCH
Ø5/16" x 2"
Ø5/16"
Ø5/16"x 3/4"
Ø1/4" x 1-1/4"
Ø1/4" x 1-1/2"
Ø1/4"
Ø1/4"x 5/8"
1/6'' x 2-1/4''
F
X4
8
E
1
2
3
X4
Q'TY
8PCS
8PCS
8PCS
4PCS
16PCS
20PCS
20PCS
1PC
7
6
4
8
Page 1 of 3
