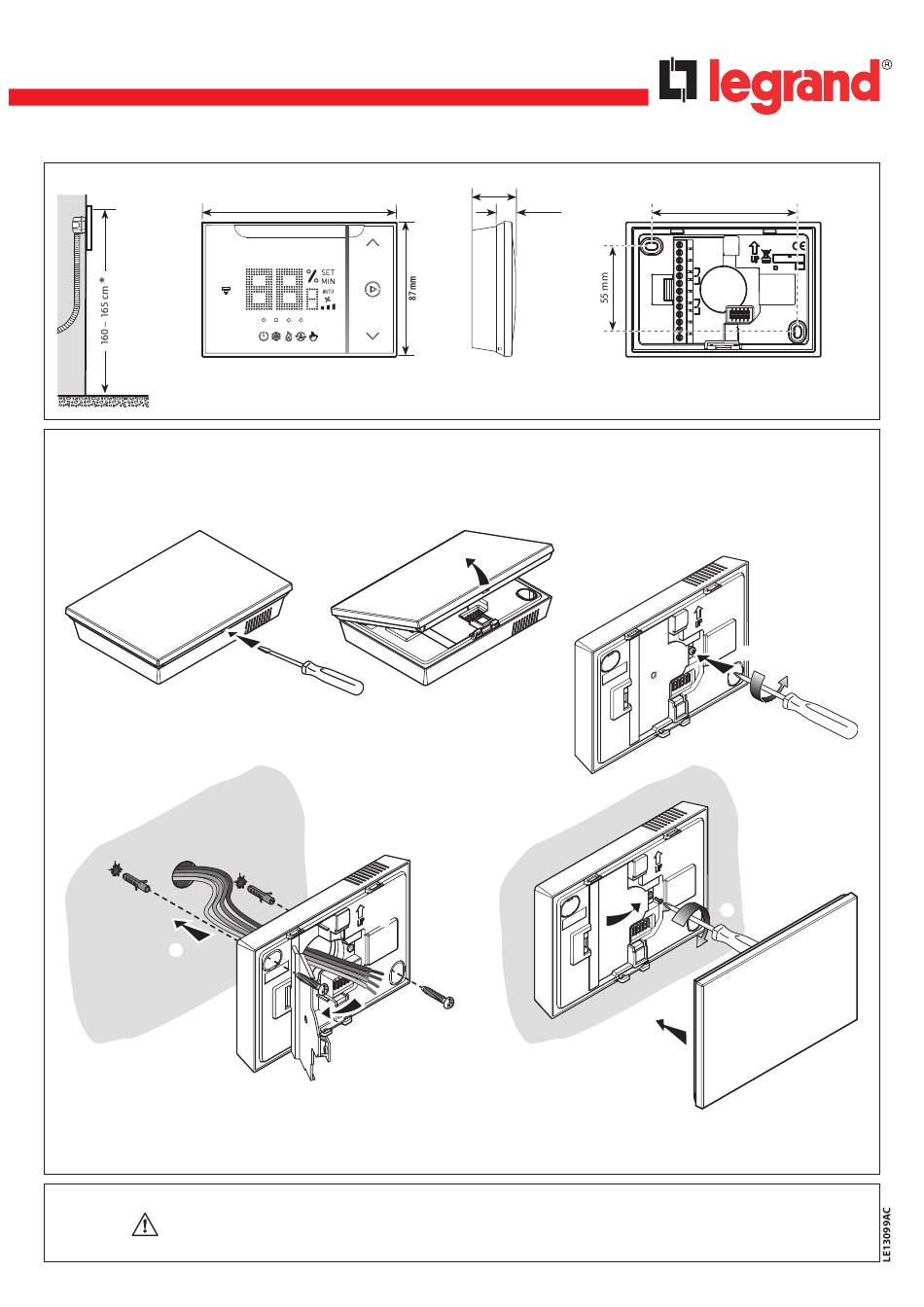

Dimensional data
* Recommended height, unless different regulations are specified.
Mounting
Note : install the Smarther so that it is within the field of view of the air conditioning unit, making sure that there are no obstacles in between (plants, furniture, light fittings,
etc.) that may impair communication between the infrared transmitter and receiver.
4
4
4 4
- Caution : avoid tightening the screws too much, in order to prevent any base distortion that may compromise the correct installation of the device. The front must be
tightly fixed to the base and the fastening clip should lock into place.
Once the installation has been done, wait for 2 hours before checking the read temperature.
During power shortage the device is not working and not reachable, any collection of personal data is stopped.
126 mm
1
1
1 1
5
5
5 5
28 mm
11 mm
2
2
2 2
6
6
6 6
95 mm
L
N
110 - 240 V 50/60 Hz
2 W max.
HEATING
5(2) A
NC
C
NO
NC
C
BTICINO SpA
Viale Borri, 231
NO
21100 VARESE
COOLING
ITALY
3
3
3 3
7
7
7 7
8
8
8 8
