Mosaic
™

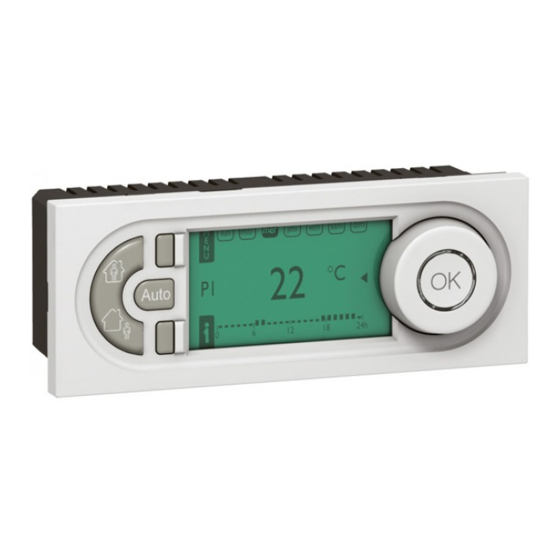

Thermostat programmable
767 21
Activates the selected program
Presence mode (see page 4)
Absence mode (see page 4)
230V~
Use the same power supply phase for supply and relay.
For an optimal temperature control it is advisable to use a contactor when
operating with a load greater than 4A.

Technical data

Supply voltage:
Power consumption:
Relay output:
Accuracy:
Wire cross-sections:
Programs (saved by EEPROM) 4x predefined, 1x individual
Running reserve:
Range of adjustment:
Frost protection temperature:
Storage temperature:
Ambient temperature
Operating principle:
Day of week
Softkey
M
T
W
19.0
P1
Auto
0
6
12
Softkey
Program
N L
230V 50/60Hz
1 W
1 changeover contact 8A 250V~ cos ϕ = 1
± 1 s /day, day under typical installation conditions
single strand
1,5...4 mm
2
100h for all settings
+7°C ... +30°C
+7°C
- 10°C to +60°C
- 5°C to +50°C
Typ 1.B. EN 60730-1
Lighted Ring
prompt to confirm adjusted menu
options/parameters
Set point
T
F
S
S
°C
18
24h
Rotating knob
• Selection of the menu options or adjusting
the parameters.
Softkeys
Displays the MENU
Back
AUTO
Information
Adjust number of days (1-30)
1
of absence and presence-mode
®
multi strand
1,5...2,5 mm
2
Confirmation of the selection
or the actual settings of the
parameters

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mosaic 767 21 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Mosaic 767 21

Summary of Contents for LEGRAND Mosaic 767 21

  • Page 1: Technical Data

    Mosaic ™ Thermostat programmable ® 767 21 Technical data Supply voltage: 230V 50/60Hz Power consumption: 1 changeover contact 8A 250V~ cos ϕ = 1 Relay output: Accuracy: ± 1 s /day, day under typical installation conditions single strand multi strand Wire cross-sections: 1,5…4 mm 1,5…2,5 mm...
  • Page 2 MENU SETUP (PARAMETRAGE) LANGUAGE (LANGUE) ENGLISH / DEUTSCH / FRANCAIS / ESPANOL / NEDERLANDS DATE/TIME DATE TIME SUMMERTIME EUROPE, US NONE, USER DEFINED TEMP. -SETTINGS T° COMFORT T° REDUCED WALL COMPENS. + 0.0°C PRESENCE TIME 6-22 O’CLOCK 0-24 O’CLOCK DISPLAY CONTRAST BRIGHTNESS PROGRAMMS...

  • Page 3: Temperature Setting

    Select language Temperature setting MENU MENU PARAMETRAGE SETUP PROGRAMMES PROGRAMS AUTO AUTO OPTIONS OPTIONS PARAMETRAGE LANGUE TEMP. -SETTINGS SETUP ENGLISH LANGUE LANGUAGE HORADATAGE T° COMFORT DEUTSCH DATE/TIME T° REDUCED T° DE PROGR. FRANCAIS TEMP. -SETTINGS TEMP. -SETTINGS T° REDUCED 16.0 T°...

  • Page 4: Absence Mode

    Presence mode PRESENCE MODE PRESENCE MODE AUTO 19.0 °C °C 19.0 AUTO Activates the comfort level between Adjust number of After expiration of 6:00-22:00/0:00-24:00, the rest of days (1-30) of If button is not pressed the adjusted days the day the reduced level is active. presence-mode for 20s or button OK is or pressing the key...
