HD2VD21-860
HD2VD21-836
HD SDI 1080P ICR OSD 21 IR
FEATURES
•
SDI 1080P - 1920 x 1080
•
CVBS Service Monitor Output
•
1/2.8" Sony CMOS 2.0 Megapixel
•
6.0mm or 3.6mm Megapixel Lens
•
21 IR LED; Distance up to 50ft / 15m
•
12V DC, 390mA max.
•
IP65 Rating
Please read the Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.
MADE IN TAIWAN
Copyright © 2014. All Rights Reserved.
6.0mm Megapixel Lens
3.6mm Megapixel Lens

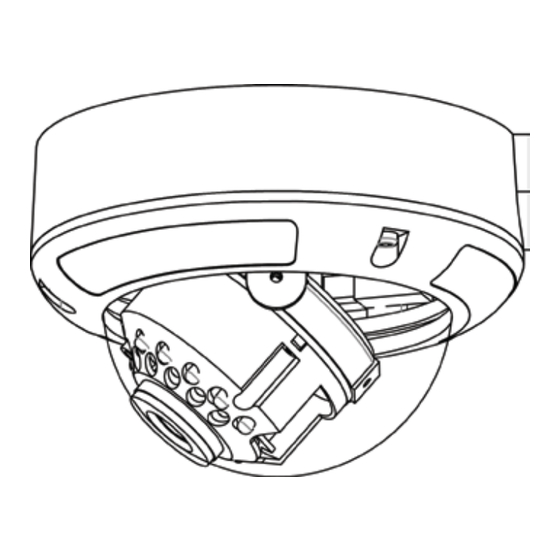

Vandal Dome Camera
USER MANUAL
www.okinausa.com
HDC-34 / HDC-35
R201402-V25
Advertisement
Related Manuals for Okina USA HD2VD21-860
Summary of Contents for Okina USA HD2VD21-860
- Page 1 HD2VD21-860 6.0mm Megapixel Lens HD2VD21-836 3.6mm Megapixel Lens HD SDI 1080P ICR OSD 21 IR Vandal Dome Camera USER MANUAL FEATURES • SDI 1080P - 1920 x 1080 • CVBS Service Monitor Output • 1/2.8” Sony CMOS 2.0 Megapixel •...
-
Page 2: Limited Warranty
When the video product exhibits a distinct change in performance. LIMITED WARRANTY OKINA USA products are covered under warranty for one (1) year from the date of purchase. The warranty will automatically be voided if any of the following occurs: 1. -
Page 3: Package Contents
PACKAGE CONTENTS One (1) HD2VD21-860 or HD2VD21-836 Dome Camera One (1) Allen Wrench Three (3) Wall Mounting Screws Three (3) Screw Washers Three (3) Wall Anchors One (1) User Manual * For any returns, please include all components listed above with original packaging in Resalable Condition. - Page 4 MAIN MENU SETUP 1. LENS ↲ 2. EXPOSURE 3. WHITE BAL 4. DAY&NIGHT AUTO↲ ↲ 5. NR ↲ 6. SPECIAL ↲ 7. ADJUST ↲ 8. RESET ↲ 9. EXIT LENS Default LENS VIDEO MANUAL Vari-Focal lens can be installed on this camera. Manual –...
- Page 5 SHUTTER AES (auto electronic shutter) - the camera automatically sets the optimum shutter speed. FL - flicker less mode avoids interference from light sources (recommended for video-iris or DC-iris lenses only). FIXED - forces a fixed shutter speed. Regulate the gain or amplification of the video signal, mainly used in low-light conditions with the iris fully open.
- Page 6 SPECIAL SPECIAL CAM TITLE 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ＜＞ POS END FREEZE OFF,ON MIRROR OFF,MIRROR,V-FLIP,ROTATE OFF,ON D-ZOOM X2.0~62.0 D-EFFECT D-ZOOM PAN&TILT D-ZOOM DEFAULT RETURN RET / END NEG. IMAGE OFF,ON RETURN RET / END SELECT AREA1,AREA2,AREA3 DISPLAY POSITION MOTION SENSITIVITY 0~100 MOTION VIEW OFF,ON DEFAULT RETURN RET / END...
-
Page 7: Specifications
RET / END RESET RESET FACTORY RETURN RET / END EXIT SPECIFICATIONS Model HD2VD21-860 HD2VD21-836 Image Sensor 1/2.8” SONY CMOS : 2.0 Megapixel Resolution 1920(H) x 1080(V) @ 30 FPS Video Output SDI / CVBS (for service monitor) Electronic Shutter... - Page 8 www.okinausa.com www.okinausa.com HDC-34 / HDC-35 MADE IN TAIWAN Copyright © 2014. All Rights Reserved. R201402-V25...
