School Pattern Recess Adaptor
– Jumper Valve
Installation and Maintenance Instructions
VP308
VP314
VP315
VP317S
VP349
VP349NS
VP354NS
technical data
Jumper Valve
Working Pressure Range
Maximum Static Pressure 1200 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00534_20 Dec 2023
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
95°C
Advertisement
Table of Contents
Related Manuals for Watts ENWARE VP308
Summary of Contents for Watts ENWARE VP308

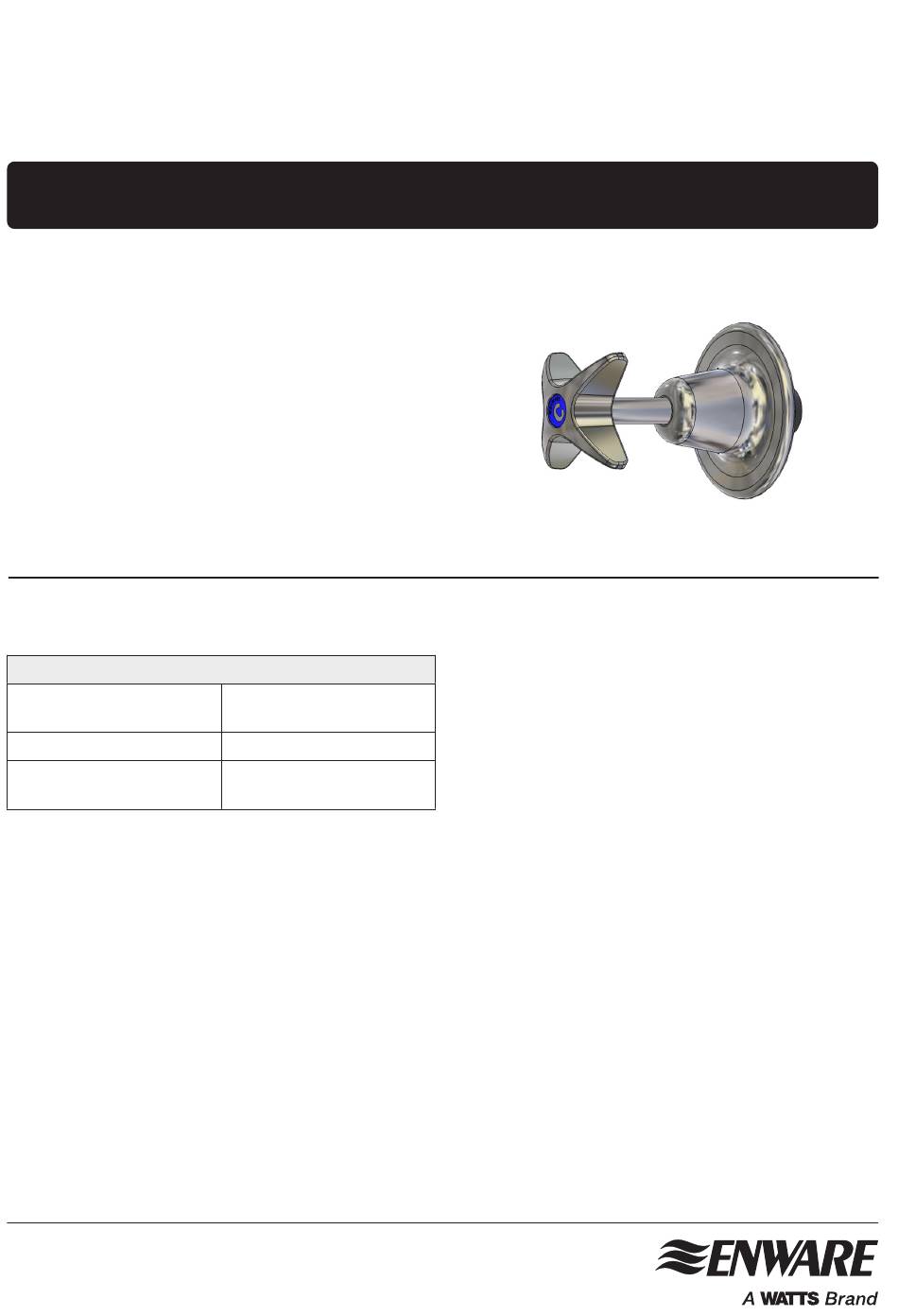

- Page 1 School Pattern Recess Adaptor – Jumper Valve Installation and Maintenance Instructions VP308 VP314 VP315 VP317S VP349 VP349NS VP354NS technical data Jumper Valve Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa 95°C Maximum Working Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.

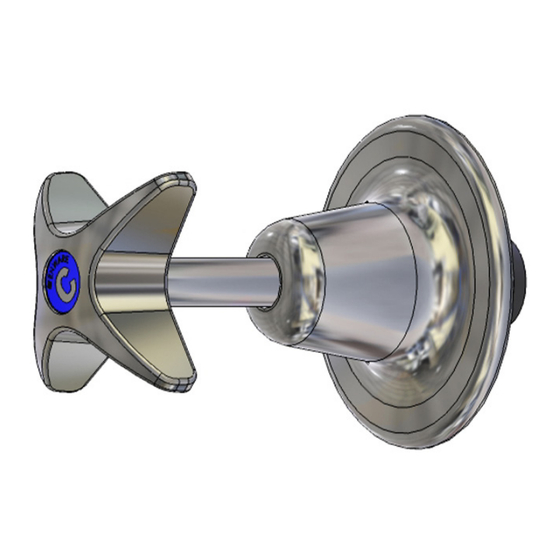

- Page 2 VP JUMPER VALVE DESCRIPTION Indicator Button Handle Circlip Insert Flange Stuffing Box Red Fibre Washer Spindle Spindle O-Ring Jumper Valve Protective Cap Spanner Key www.enware.com.au Page 2 © Enware Pty Ltd...
-
