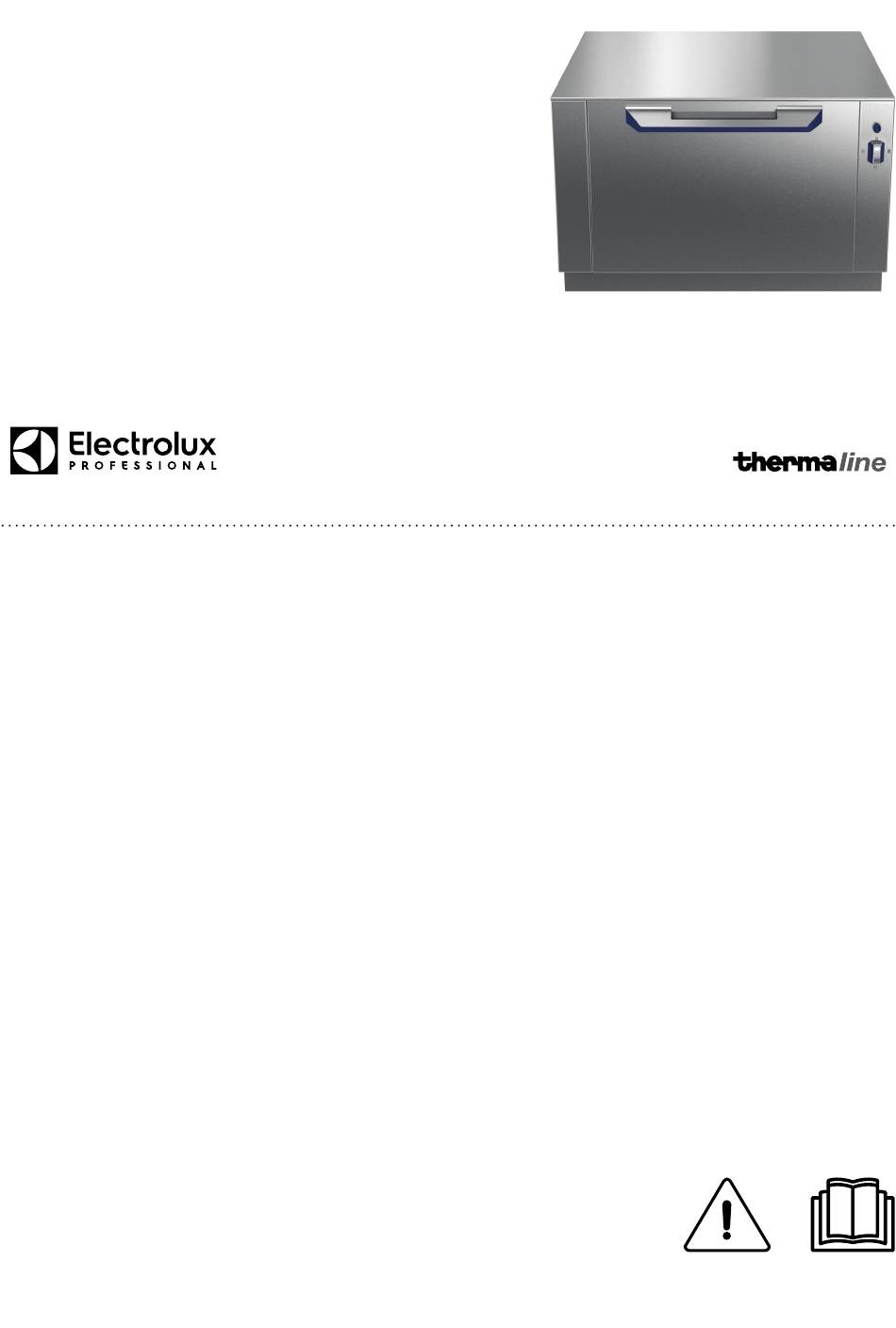

- Page 1 Static Gas Oven Installation and operating manual * 599A18801 - 82.8131.01- 2024.10 *Original instructions...
- Page 2 Foreword Read the following instructions, including the warranty terms before installing and using the appliance. Visit our website www.electroluxprofessional.com and open the Support section to: Register your product Get hints & tips of your product, service and repair information The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the appliance.
-
Page 3: Table Of Contents
Contents A WARNING AND SAFETY INFORMATION....................5 General information ........................5 General information ........................5 Personal protection equipment ......................7 General safety ..........................7 Protection devices installed on the appliance ..................8 Safety signs to be placed on the appliance or near its area ..............9 Reasonably foreseeable improper use .................... - Page 4 H NORMAL APPLIANCE USE ........................27 Characteristics of personnel enabled to operate on the appliance ............27 Basic requirements for appliance use....................27 PRODUCT DESCRIPTION ........................28 Appliance overview ........................28 Use ............................28 Knob............................28 OPERATING............................28 First use ........................... 28 Switching on/off..........................
-
Page 5: Awarning And Safety Information
WARNING AND SAFETY INFORMATION General information To ensure safe use of the appliance and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators. - Page 6 documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators. WARNING Danger of electrocution - dangerous voltage. CAUTION Risk of damage to the appliance or the product. IMPORTANT Important instructions or information on the product Equipotentiality...
-
Page 7: Personal Protection Equipment
Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the appliance's service life. Stage Protective Safety Gloves Glasses Safety garments footwear helmet ● ○ ○ — — Transport — ● ●... -
Page 8: Protection Devices Installed On The Appliance
Disconnect the appliance from the power supply before carrying out any installation, assembly, cleaning or maintenance procedure. • Do not remove, tamper with or make illegible the CE marking, the safety, danger and instruction signs and labels on the appliance. •... -
Page 9: Safety Signs To Be Placed On The Appliance Or Near Its Area
Safety signs to be placed on the appliance or near its area Prohibition Meaning do not remove the safety devices do not use water to extinguish fires (placed on electrical parts) Keep the area around the appliance clear and free from combustible materials. -
Page 10: Transport, Handling And Storage
this manual the Manufacturer has taken steps to inform operators of such risks, carefully indicating the personal protection equipment to be used by them. In order to reduce the risks, provide for sufficient spaces while installing the unit. To preserve these conditions, the areas around the appliance must always be: •... -
Page 11: Installation And Assembly
load to fall off the vehicle. Before unloading the appliance components, make sure all the anchoring systems are removed. A.11 Installation and assembly • The operations described must be carried out in compliance with the current safety regulations and provisions in force in the country of use. •... -
Page 12: Appliance Cleaning
Preventive Maintenance In order to ensure the safety and performance of your equipment, it is recommended that service is undertaken by Electrolux Professional authorised engineers every 12 months, in accordance with Electrolux Professional Service Manuals. Please contact your local Electrolux Professional Service Centre for further details. -
Page 13: Appliance Disposal
– plumbing parts, components or consumable cleaning subject to local terms and conditions. products that are not approved by the manufacturer; Check on Electrolux Professional website the list of authorized customer care. TECHNICAL DATA Data plate position... -
Page 14: How To Interpret The Factory Description
Type ref. certification group of the appliance 3 - Machine type + 4 - Zones power supply voltage power supply frequency G French top with chimney on static gas oven power input 4 zones burners on static gas oven absorbed current SVGW num SVGW number 4 zones burners on static gas oven passthrough... -
Page 15: Gas Consumption
Testing and inspection Manufacturer Electrolux Professional or any other serv- Our appliances have been designed and optimized, with ice centre authorised by Electrolux laboratory testing, in order to obtain high performance and Professional. -
Page 16: Responsibility
Protection safety measures consisting of the use of The employer, workplace manager or service technician are devices specific technical means (guards and responsible for identifying and choosing adequate and suitable safety devices) for protecting operators personal protection equipment to be worn by operators, in against risks. -
Page 17: Dimension Drawings For Floor Installations
Dimension drawings for floor installations CAUTION When installing with concrete plinth, the wall niche must be at least 70 mm deep but must not exceed 100 mm to ensure the appliance has a solid base and sufficient ventilation inside it. Floor installation options: 3. -
Page 18: Installation And Connection Diagram
Installation and connection diagram French tops with gas oven 1000 G = Gas connection... - Page 19 Gas cookers with gas oven 15 0 13 0 1000 G = Gas connection...
-
Page 20: Accessing The Appliance's Internal Components
Accessing the appliance’s internal components INSTALLATION AND ASSEMBLY Introduction Customer's responsibilities The tasks and works required of the Customer are: WARNING • check the floor planarity on which the appliance is placed; Refer to “WARNING and Safety • arrange an earthed power socket of suitable capacity for the Information“. -
Page 21: Before Installation
NOTE! 1. Transport the appliance on its transport pallet directly in For information regarding the electrical connection, front of the point of installation. refer to “A.12 Electrical connection“. The installation connections that are sticking out of the floor should be as close as possible to the side of the Before installation transport pallet. -
Page 22: Securing Or Adjusting To The Floor (Optional)
The parts in wood and cardboard can be disposed of, 2. Push the units together. Use the adjusting screws on the respecting the current regulations in the country where the feet to bring the appliances to the same height, then level appliance is used. -
Page 23: Side Panels And Base Models
Side panels and base models 2. Bring the side panel D into position. Put the 5 hooks of the panel F into the slots E. All side panels are available in two different versions: • Side panel with an overhang of 12,5 mm for individual mounting on walls. -
Page 24: Fixing The Side Cover Without Overhang
F.11 Fixing the side cover without overhang 3. Insert the hooks on the bottom of end rail F into the eyelets of the connecting rail. The side cover should only be used as a closing off against the Attach the side of side cover E using the 4 flathead screws wall, against a niche and in between appliances (provided that supplied. -
Page 25: Conversion To Another Type Of Gas
• DVGW work sheet G 600 (TRGI) “Technical regulations for However, if a category B flue is expressly requested, this type gas installations“; of connection requires its own certification. • TRF “Technical regulations for liquid gas“; Combustion air and combustion products are extracted in the installation area. -
Page 26: Sealing
If the gas pressure is higher than that specified or is difficult to regulate (not stable), install a gas pressure regulator in an 1. Electrolux Professional responsibility easily accessed position ahead of the appliance. 2. Specialized personnel responsibility The pressure regulator should preferably be fitted horizontally, to ensure the right outlet pressure. -
Page 27: Main Burner Nozzle Replacement
Ignition burner nozzle replacement 2. Remove the spoiler sheet B from the gas pipe holder A; 3. Replace the spoiler sheet B at distance D in accordance 1. Unscrew fitting E and replace nozzle F with the nozzle with the nozzle table (spare parts catalogue); suitable for the gas type;... -
Page 28: Iproduct Description
PRODUCT DESCRIPTION Appliance overview Knob 1. Ignition control 2. Power level control 3. Oven door The appliance is intended for industrial use by trained personnel. Ignition control (1) This appliance must only be used for its expressly designed purpose, i.e. for cooking food. Any other use is considered improper. -
Page 29: Kappliance Cleaning And Maintenance
APPLIANCE CLEANING AND MAINTENANCE WARNING IMPORTANT Keep stainless steel surfaces clean at all times and Refer to “WARNING and Safety make sure they are well ventilated. Information“. Please follow these instructions: • Remove grime, fat and other cooking residuals from steel Care information surfaces when cool using soapy water, with or without Care operations have to be carried out by the owner and/or... -
Page 30: Descaling
Descaling • periodically air the premises. WARNING Changing the batteries Refer to “Personal protection Units are delivered with battery-powered ignition. If the indicator lights red when you turn on the machine, you equipment“. need to change the batteries for the igniter and indicator. To access the batteries, unscrew the control panel (refer to E.4 IMPORTANT Accessing the appliance’s internal components). -
Page 31: Troubleshooting
2. Switch off the safety circuit breaker ahead of the • the Ser. No. (appliance serial number). appliance; IMPORTANT 3. Close the gas and water tap(s), if they are present; The appliance PNC and serial number are essential 4. Remember to specify: for identifying the type of appliance and date of •... - Page 34 Electrolux Professional AG Allmendstrasse 28 CH - 6210 Sursee www.electroluxprofessional.com...
