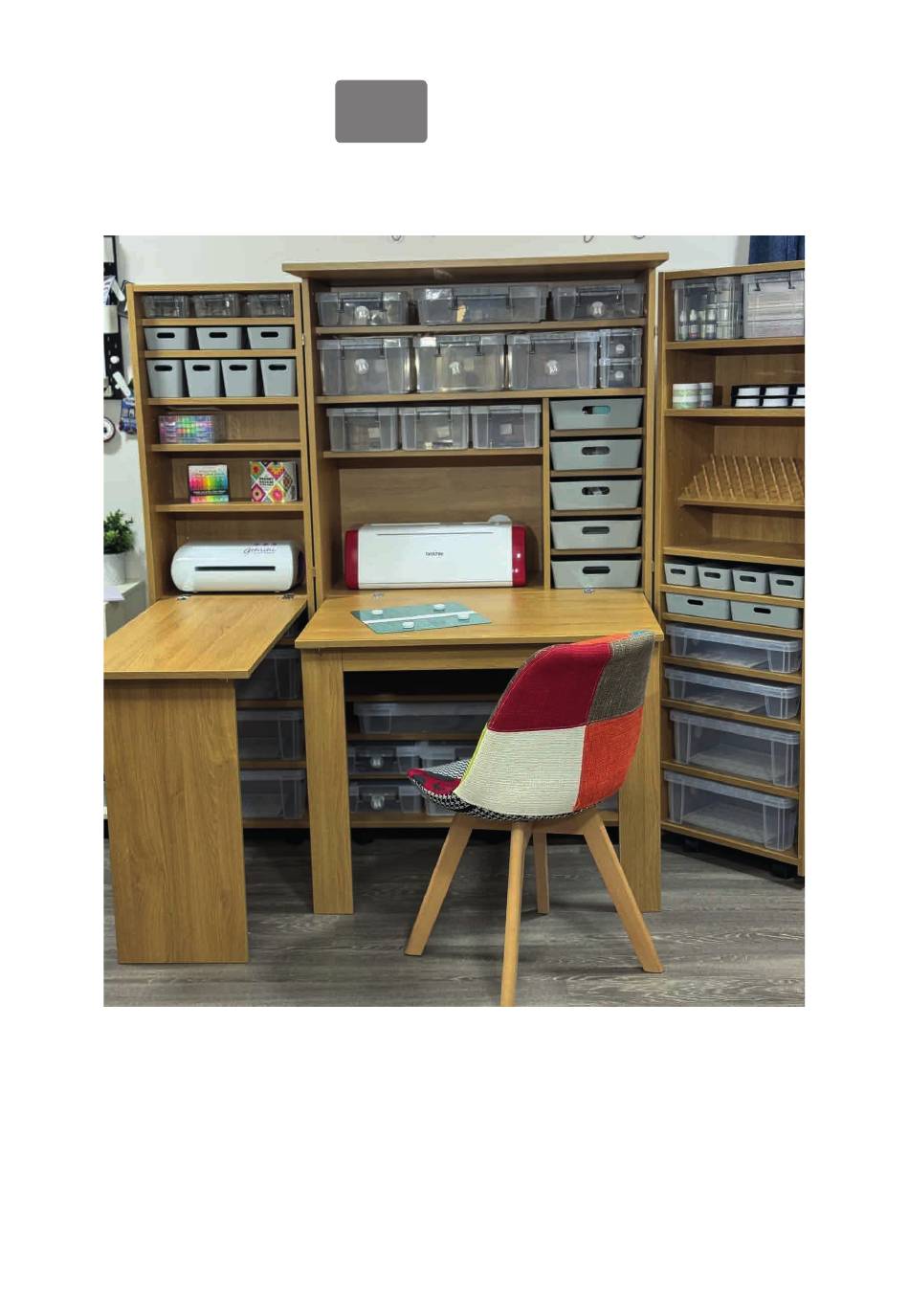

store
Lydford
away
Allstore
Assembly Instructions
revised 1024 - 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lydford Allstore and is the answer not in the manual?

Questions and answers

Related Manuals for store away Lydford Allstore

Summary of Contents for store away Lydford Allstore

  • Page 1 store Lydford away Allstore Assembly Instructions revised 1024 - 1.0...
  • Page 2 It is strongly recommended to have two persons present when assembling this item. We advise that you follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
  • Page 3 Your hardware pack should contain the following: CONNECTING FOLDING LEG BOLT (CB1) BRACKET (FLB1) TABLE X 68 HINGE WOODEN CONNECTING DOWEL LOCK (CL1) X 81 X 68 CABLE MINI SHELF SUPPORT CONNECTING OUTLET (SP3) LOCK (CB2) X 108 X 16 SHELF RETAINER (SR1) BOLT SHELF...
  • Page 4 STEP 1 Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all the holes marked with a blue circle screw in to this point Screw CB1 Bolts into all the holes marked with a red circle LYD M SIDE LYD M SIDE Use: - Angle Bracket AB1...
  • Page 5 STEP 2 Insert CL1 Locks into the holes as indicated with a blue circle LYD M BASE Front Edge Attach castors C2 with screws 35-17S as shown to holes marked with red circles STEP 3 Insert CL1 Locks into the holes in the LYD M LOW BACK x 2, LYD M MID BACK, LYD M TOP BACK panels from this box...
  • Page 6 STEP 4 With the LYD M SIDE (LEFT) laying on the solid flat clean surface (we recommend the floor) attach the four back panels and the base. Secure by turning all of the connecting locks in the backs and the base approx one half turn.
  • Page 7 STEP 5 With the unit still laying on the floor place the LYD M SIDE (right) onto the top and secure all the connecting locks and angle brackets. Then carefully stand the unit onto its wheels. IT IS HIGHLY RECOMMENDED TO HAVE TWO PEOPLE TO COMPLETE THIS STEP TO AVOID INJURY OR DAMAGE TO THE PRODUCT.
  • Page 8 STEP 6 screw in to this point LYD M TOP Screw CB1 Bolts into all the holes marked with a red circle Fit the LYD M TOP to the unit by tightening all of the connecting locks. LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK...
  • Page 9 STEP 7 LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK screw in to this point Screw CB1 Bolts into all the holes marked with a red circle BACK EDGE S A - L Y D - M R H S Y D - M...
  • Page 10 STEP 8 You will require LYD M BCD. Fit the bottom centre divider as shown below using connectiing locks and the bolts you have already fitted to the base. Ensure you fit it the correct way up - there will be a small drilled dot in the top back corner of the panel.
  • Page 11 STEP 9 You will require LYD M DSH. Fit the table hinges and connecting bolts as shown below. screw in to this point Screw CB1 Bolts into all the holes marked with a red circle OTHER SIDE OF PANEL Use screws 35-15S to attach the table hinges...
  • Page 12 STEP 10 Fit the desk shelf and tighten all of the connecting locks including those pre-fitted into the underside of the desk shelf. LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK BACK EDGE S A - L Y D - M R H S...
  • Page 13 STEP 11 You will require LYD M MCD. Fit the mid centre divider as shown below using connectiing locks and the bolts you have already fitted to the desk shelf. LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK BACK EDGE S A - L...
  • Page 14 STEP 12 Fit the LYD M FIXSH to the unit by tightening all of the connecting locks. screw in to this point Screw CB1 Bolts into all the holes marked with a red circle LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK BACK EDGE...
  • Page 15 STEP 13 - You will require LYD M DESK, LYD M TLEG x 2 and LYD M LBAR Attach Bolts BB1 with Screws 35-15S LYD M DESK LYD M TLEG LYD M LBAR LYD M BAR Attach the LYD M LBAR to the LYD M TLEGs by pushing the panels together and attaching with the dowels that are already inserted...
  • Page 16 STEP 14 Attach the complete desk to the main section using the table hinge that you have already attached to the desk desk shelf use screws 35-15S. Once in place ensure it is secured with bolts supplied. LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK...
  • Page 17 STEP 15 SA-LYD-DR NOTE When tting the CB2 Bolts in the blue circles these are used to t the desk in the door section. Please t these to the left OR right door section depending on which side you require the desk LEFT HAND DOOR SECTION RIGHT HAND DOOR SECTION Screw CB2 Bolts into all...
  • Page 18 STEP 16 Insert CL1 connecting locks into the LYD D TOP and the LYD D BASE as shown below. Then attach the C2 casters to the LYD D BASE using screws 35-17D as shown below. Repeat this process for both top and base panels.
  • Page 19 STEP 17 With the LYD D LHS laying on the solid flat clean surface (we recommend the floor). Attach the LYD D LHS and LYD D RHS to the LYD D BASE and LYD D TOP and secure by tightening the locks you have already fitted. Then fix the angle brackets to the base using screw 35-17D.
  • Page 20 STEP 19 With the Door Fascia Panel LYD D FASCIA laying on the solid flat clean surface (we recommend the floor). Attach the section that you have already assembled and secure by tightening the locks which you have already inserted into the panels. LEFT HAND SIDE DOOR SECTION RIGHT HAND SIDE DOOR SECTION screw in to...
  • Page 21 STEP 18 Using Hinge H2 and Screws 30-15S attach the completed door sections to the centre section you have already constructed. Fix handles to the door sections using screws S30. LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK BACK EDGE S A 3...
  • Page 22 STEP 19 Screws 35-15S LYD D DESK Attach the LYD D DLEG to the LYD D DESK using the Folding Leg Bracket (FLB1) and screws S10 (to t into the brass inserts) and screw 35-15S (to x into the pre-drilled holes) Attach Hinges (H3) to the reverse of the desk panel using screws 35-15S...
  • Page 23 STEP 20 Fit the LYD D DSH into the Left hand or right hand door section according to preference. Insert onto the CB2 bolts you have tted and tighten the connecting locks. Fit the LYD D FIXSH into the door section that is not having a desk. This is designed to strengthen the door section and should be tted close to the middle of the door section.
  • Page 24 STEP 21 Attach the complete door desk to the door section using the table hinge that you have already attached to the desk use screws 35-15S. Once in place ensure it is secured with bolts supplied. LYD M TOP BACK LYD M MID BACK LYD M LOW BACK LYD M LOW BACK...

  • Page 25: Box Layout

    STEP 21 A standard layout of boxes is shown below. The best way to fit the boxes is to start at the bottom of each section, insert boxes or trays then add shelf pegs (SP3) and a shelf above then continue until the section is full. Use shelves as indicated below and SP3 shelf pegs as supplied.
  • Page 26 Lydford away Allstore The Storeaway Lydford Allstore unit is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
