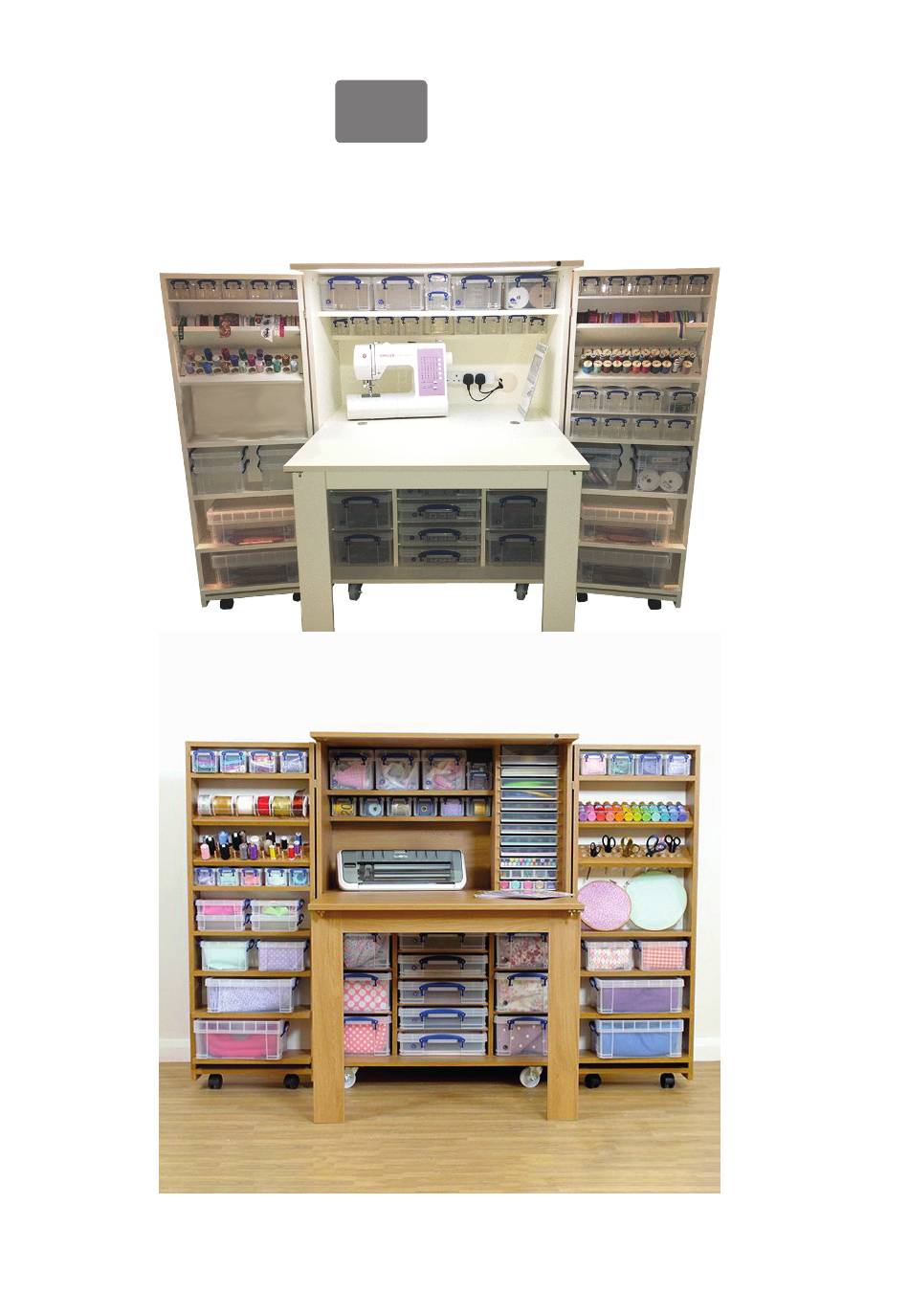

- Page 1 store Dunster away Edition 2.0 Assembly Instructions revised 120819 - 1.3...
- Page 2 This page is intentionally blank...
- Page 3 It is strongly recommended to have two persons present when assembling this item. We advise that you unpack the boxes in the order shown in these instructions and follow the assembly instructions carefully. Please be careful during construction as section of the cupboard may be unstable until construction is complete.
- Page 4 STEP 1 SA500/130-1S You will need to open box - Insert CL1 Locks into the holes as indicated Screw CB2 Bolts into all the holes marked with a red circle screw in to this point Screw CB1 Bolts into all the holes marked with a blue circle SA500-...
- Page 5 STEP 2 SA500/2BCB You will need to open box - From this box you will require panel SA500-BASE SA433- BASE Insert CL1 Locks into the holes as indicated BACK EDGE Attach the White Castors C1 to the base using washer W1 and Screw CHSC-10 - castor locations are marked in orange STEP 3...
- Page 6 STEP 4 With the SA500/130LHS laying on the solid flat clean surface (we recommend the floor) attach the two back panels and the base. Secure by turning all of the connecting locks in the backs and the base approx one half turn. The screw the remaining 35-17D screws into the angle brackets to secure the side to the base. SA2B SA2B BACK EDGE...
- Page 7 STEP 5 With the unit still laying on the floor place the SA500/130RHS onto the top and secure all the connecting locks and angle brackets. The carefully stand the unit onto its wheels. IT IS HIGHLY RECOMMENDED TO HAVE TWO PEOPLE TO COMPLETE THIS STEP TO AVOID INJURY OR DAMAGE TO THE PRODUCT. SA2B SA2B BACK EDGE...
- Page 8 STEP 6 SA500/13- You will need to open box - SA500/ 13TOP screw in to this point Screw CB1 Bolts into all the holes marked with a blue circle Place the SA500/13-TOP onto the top of the section you have already constructed and tighten the connecting locks to secure.
- Page 9 STEP 7 SA500-DS You will need to open box - Fit the SA500-DS into the unit as indicated. Then secure by tightening the locks which are fitted into the panel SA500-DS Screw CB2 Bolts into all the holes marked with a red circle BACK EDGE...
- Page 10 STEP 8 You will require 2 x SA-BCD from boxes you have already opened. Fit the SA-BCD Panels as indicated and secure by tightening the locks which are fitted into the panels BACK EDGE...
- Page 11 STEP 9 SA-SH SA-SSH Optional shelves SA-SH and SA-SSH (found in box SA-DESK) can be fitted into this section if requried, you can use either shelf pegs SP1 or mini connecting locks CB2 to fix the shelves BACK EDGE...
- Page 12 STEP 10 - You will need to open box SA-DESK You will require SA500-DESK, SA-LBAR and 2 x SA-TLEG from box SA-DESK which you may have already opened. Attach Bolts BB1 with Screws 30-15G SA500-DESK Add a small quantity of PVA glue into each hole marked with a red circle.
- Page 13 STEP 11 Attach the complete desk to the main section using the two part hinges that are already attached to the desk and the desk shelf. The hinges can be adjusted to ensure the desk is level by turning the small adjustment screw clockwise or counter clockwise.
- Page 14 STEP 12 SA130/13 You will need to open box - 2STB This box contains the sides, tops and bases for the door sections for your unit. Follow the instructions below carefully to construct your door section. To fit to the LEFT HAND SIDE To fit to the RIGHT HAND SIDE screw in to this point...
- Page 15 Insert CL1 Locks into STEP 13 the holes as indicated SA13-TOP Attach Castor C2 to With the SA13-130S1 laying on the solid flat SA13-BASE using clean surface (we recommend the floor). 35-17D Screws Attach the SA13-130S1 and SA13-130S2 to the SA13-BASE and SA13-TOP and secure by tightening the connecting locks CL1.
- Page 16 STEP 14 With the Door Fascia Panel laying on the solid flat clean surface (we recommend the floor). Attach the section that you have already assembled and secure by tightening the locks which are fitted to the panels. screw in to Screw CB1 Bolts into all the holes marked with a blue circle...
- Page 17 STEP 15 Using Hinge H2 and Screws 30-15S attach the completed door sections to the centre section you have already constructed. Fit the SA-BCD Panels as indicated and secure by tightening the locks which are fitted into the panels Optional shelves SA-SH and SA-SSH (found in box SA500-DESK) can be fitted into this section if requried, you can use either shelf pegs SP1 or...
- Page 18 STEP 16 Add shelves and racks to the door sections you have just attached. SA13-SH To fit a flat shelf with NO acrylic front (for storing boxes) use an SA13-SH with slot facing down (not visible). Use shelf pegs SP2 to fit the shelf and then add a DB1 self adhesive shelf stop above the shelf as shown on the next page.
- Page 19 STEP 16 continued DB1 Self adhesive Shelf Stop SA13-SH FLAT SHELF (no acrylic) SP2 Shelf Peg SA13-ACRYLIC FLAT SHELF (with acrylic) SA13-TR THREAD RACK ( tted at) SP2 Shelf Peg ANGLED SHELF (with acrylic) SP1 Shelf Peg ANGLED THREAD RACK SA13-GLUE/TOOL ANGLED TOOL/STICKLE RACK SP1 Shelf Peg...
- Page 20 STEP 17 A standard layout of boxes is shown below. The best way to fit the boxes is to start at the bottom of each section, insert a box then add shelf pegs (SP1) and a shelf above then continue until the section is full. Use MDF shelves and SP1 shelf pegs as supplied.
- Page 21 STEP 17 continued If you have opted for the addition of the tray storage within you Dunster 2.0 then this is the suggested box layout. To fit you tray pack use CB2 - mini connecting bolts to fit the centre divider in the desk section and secure in the same way as the centre dividers you fitted earlier.
- Page 22 STEP 17 continued Another standard layout of boxes is shown below. The best way to fit the boxes is to start at the bottom of each section, insert a box then add shelf pegs (SP1) and a shelf above then continue until the section is full. Use MDF shelves and SP1 shelf pegs as supplied.
- Page 23 This page is intentionally blank 0.75L 0.75L...
- Page 24 store Dunster away Edition 2.0 The Storeaway Dunster 2.0 unit is designed and manufactured in the UK by: storage C R A F T S www.storage4crafts.co.uk...
