EtherWAN EX78900H Series Installation Manual

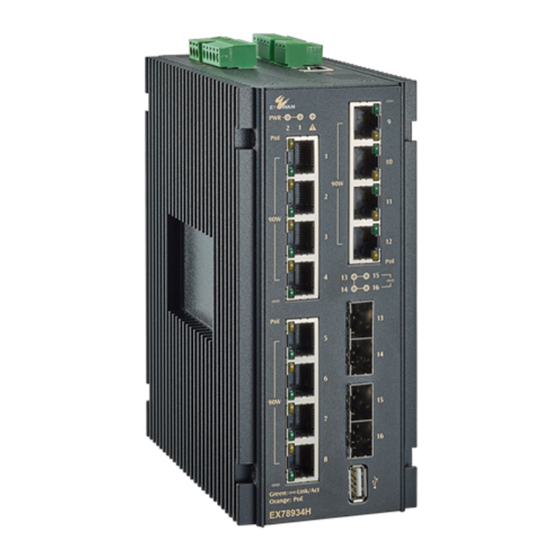

EX78900H Series Hardened Managed Ethernet Switch

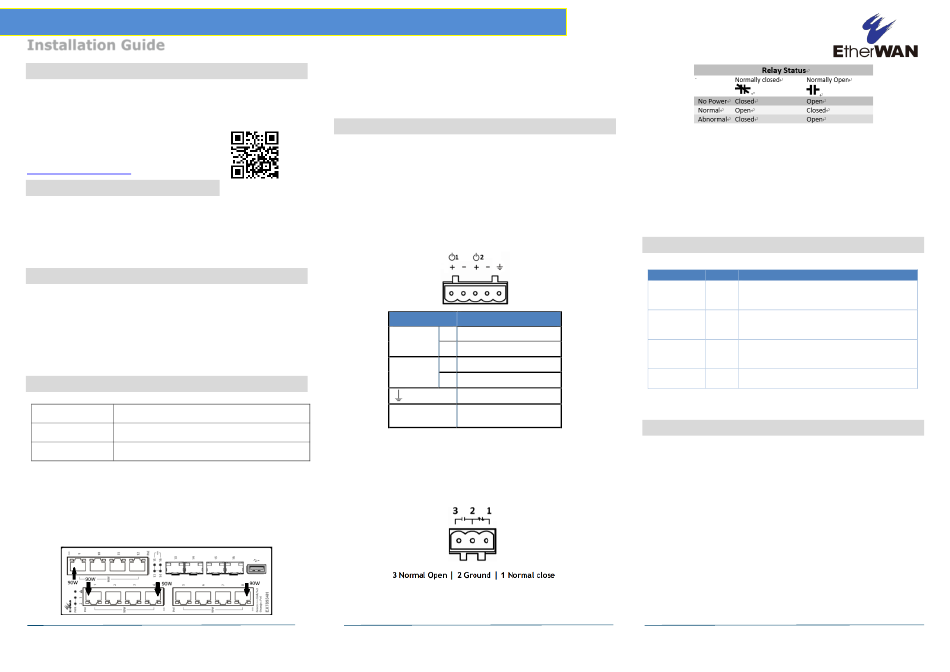

Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One EX78900H hardened managed switch
➢
➢ One RJ-45 console cable
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material. The full product manual can be
downloaded from:
https://www.etherwan.com
2
What Else You Need
Appropriate cables for data ports. To prevent damage to the switch
➢
from electrical surges, it is recommended to use STP (Shielded
twisted pair) cabling.
➢ Personal computer or laptop
➢ Appropriate SFP modules for SFP ports
3
Select a Location
➢ Installations: DIN-Rail mount.
Select a power source within 6 feet (1.8 meters).
➢
Choose a dry area with ambient temperature between -40 and 75ºC (-
➢
40 and 167ºF).
➢ For use at altitudes up to 2000 meters, indoor use only.
Humidity range (Operational): 5% to 95%, non-condensation
➢
4
Connect to the Data Ports
12-port 10/100/1000BASE-T 90W PoE
EX78934H-0VB
+ 4-port 100/1000M SFP
8-port 10/100/1000BASE-T 90W PoE
EX78924H-0VB
+ 4-port 100/1000M SFP
8-port 10/100/1000BASE-T 90W PoE
EX78922H-0VB
+ 2-port 100/1000M SFP
10/100/1000BASE-TX (PoE) Ports
Ports that support Power over Ethernet provide power to networked
devices such as IP Phones, Wireless LAN Access Points, and IP security
cameras with a power budget of 360 Watts.
PoE 90W Limitation
When using PoE ports at 90 Watts, use PoE ports – 1, 4, 8, and 9 for
90W PoE. See example below:
EX78900H
10/26/2021
100/1000M SFP Ports
SFP transceivers can be installed directly into SFP slots. Ensure that the
same type of transceiver is used at both ends of the link and that the
correct type of fiber cable is used.
5
Apply Power
➢ The switch has two pairs of power inputs.
➢ Only one power input is required to operate the switch. However,
redundant power supply functionality is supported.
52V/4.97A 57V/4.54A
➢
Note: Use qualified power supply by SELV or double insulation of
➢
UL60950 or UL61010-1 or UL61010-2-201 standards.
Terminal Block
The switch provides two power inputs on a 52-57VDC terminal block. The
terminal block has 5 terminal posts.
Pin Description
+
Power 1 52-57VDC
−
Power Ground
Power 2 + 52-57VDC
- Power Ground
Earth Terminal
Relay Output 0.5A @48VDC
Rating
Relay Output Alarm
The switch provides two relay output contacts. Both Relay 1 and Relay 2
signal actions from one of the digital inputs. The relay outputs can be
connected to an alarm signaling device. The Current is 0.5A@48VDC at
Normal Open or Normal Close.
Copyright 2021 EtherWAN Systems, Inc.
All Rights Reserved
Power-Up Sequence
When you apply power:
All Link/ACT LEDs blink momentarily.
➢
The Power 1 LED goes ON.
➢
LEDs for every port connected to a device flash, as the switch
➢
conducts a brief Power On Self-Test (POST).
6
Front Panel LEDs
LED Color Status
On: Power on
Power 1 & 2 Green
Off: Power off
On: Network connection established
Link/Act Green
Flashing: Port sending or receiving data
Amber On: Powered device is connected
PoE
Off: Powered device is disconnected
Link down or power down
Alarm Red
7
Digital IO-Setting
Connecting the Digital Inputs
The pin definitions for the digital input module are shown below. Each digital
input consists of two contacts on the 5-pin connector located on the top of
the switch. The inputs can be wired as either dry or wet contacts.
Dry Contacts:
[DI1-/GND] [DI2-/GND]
Logic level 1: Close to GND( )
10mA
Logic level 0: Open
Wet Contacts:
[DI1+/DI1-] [DI2+/DI2-]
Logic level 1 (High): 13~30 Volts (
3.2mA)
Logic level 0 (Low): 0~3 Volts
Configuring Digital Input Alarms Using the Web Interface
Located under the Diagnostics group, the Digital IO-Setting page allows for
quick configuration and enabling of digital input and environmental alarms.
Page 1
W70G-EX78900H1
