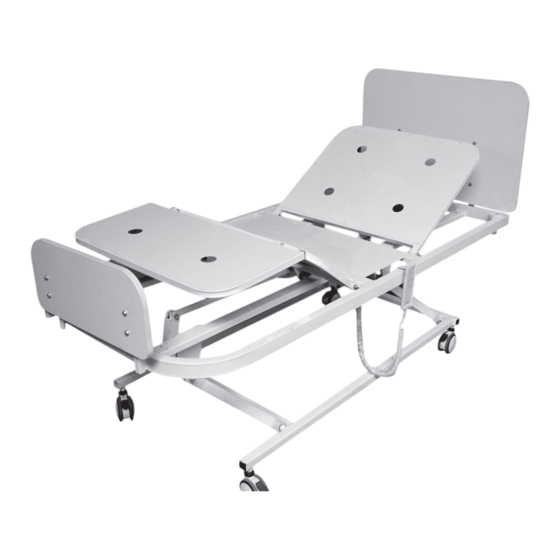

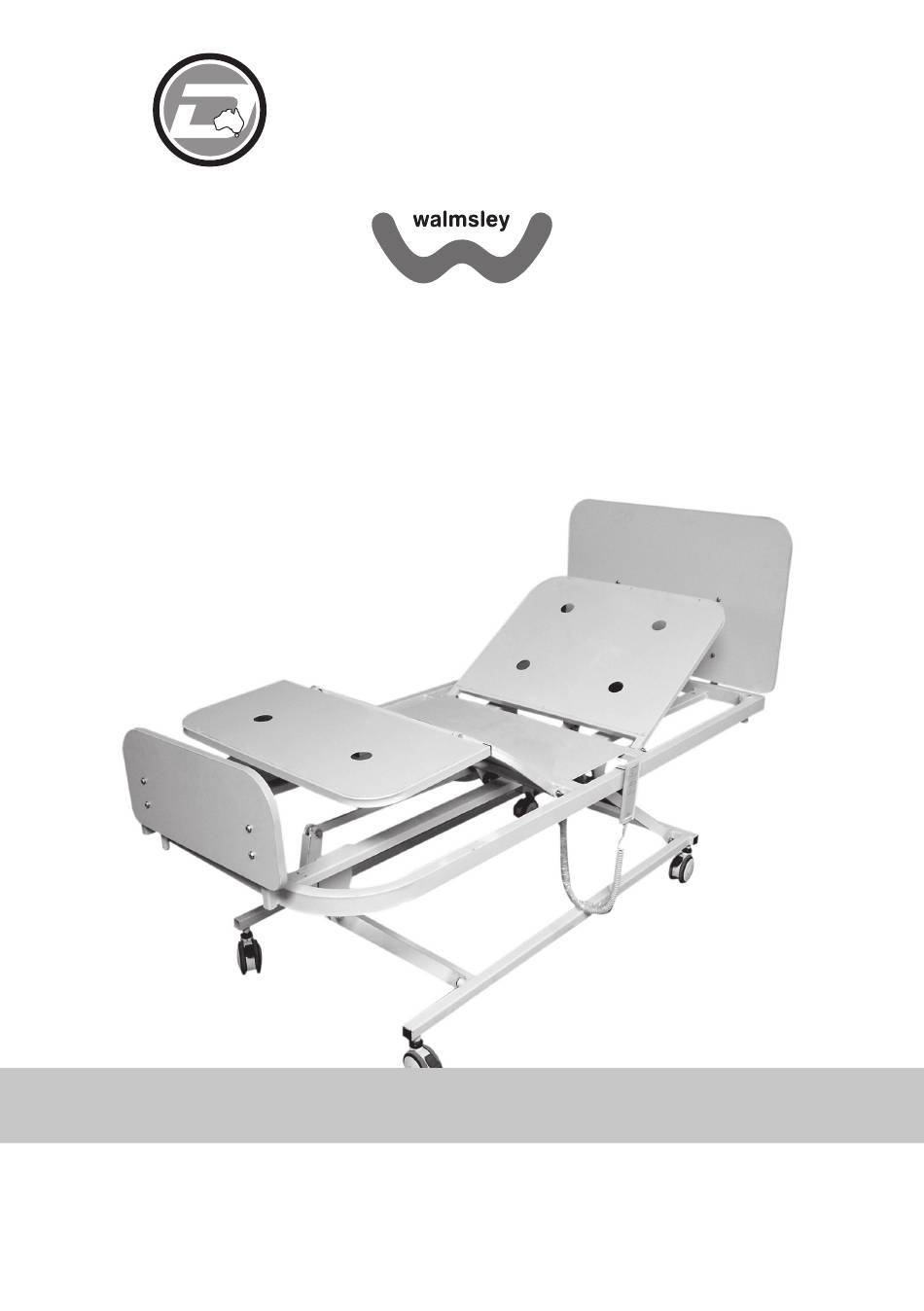

- Page 1 DEUTSCHER WALMSLEY RANGE LOW HEIGHT MEDICAL BEDS For Aged Care, Hospital and Home Care use. Another quality Australian Made product WM - SERIES OPERATION & MAINTENANCE MANUAL...
-
Page 2: Bed Specifications
Introduction and Bed Specifications Bed Operation and General Information Moving, positioning, operating CONTENTS Foot Extension, Self Help Pole, Side Rails, Cleaning and Storage Maintenance , Trouble Shooting Routine Maintenance and Warranty List of Spare parts & Accessories Introduction The Walmsley Range of low height beds has been designed to give you years of trouble free service. The beds have a low minimum height so patients can be lowered near the floor for sleeping. -
Page 3: Bed Operation
Bed Operation Figure 1. Component Parts see Figure 1. 1. Central locking pedal ( Optional) 2. Locking castor. (toe brake units fitted to standard bed) 3. Self help pole sockets. 4. ‘Knee bend’ function. 5. Back rest. 6. Removable headboard. 7. -
Page 4: Moving The Bed
Moving the Bed the castors. Standard Walmsley beds are fitted with four toe brake castors. Once the bed is in position, lock the wheels by pushing down on the pedals. Models fitted with Central Locking: (i.e. Models with code numbers ending in ‘C’.) The central locking lever at the foot of the bed has three positions. -
Page 5: Foot Extension
Warning. The bed should be left in its lowest position with the mattress base in a flat profile when unattended in order to reduce the risk of patient injury due to falls while getting into or out of the bed, or whilst lying on the bed. -
Page 6: Bed Maintenance
Bed Maintenance Servicing and maintenance of this bed may only be performed by personnel who have received the necessary training and instruction. Troubleshooting Chart Symptom Possible Cause Remedy Green light on hand control does 1. Mains not connected. 1. Ensure plug fully not glow when button is pressed. - Page 7 • Check that the metal sheets on the mattress base have not become loose. Replace screws where necessary. Warranty : Deutscher Health Care will repair or replace, free of charge, any parts of the steel frame that is defective in materials or workmanship (or both) for a period of 10 years.
-
Page 8: Spare Parts
XXXX Dewert control box XXXX Dewert hand control Note: XXXX denotes parts where Deutscher Healthcare must be consulted for the exact specification, as the specification may vary for particular customers. Accessories WL 1080 Foot extension (standard bed) WL 1060 Self help pole with handle...
