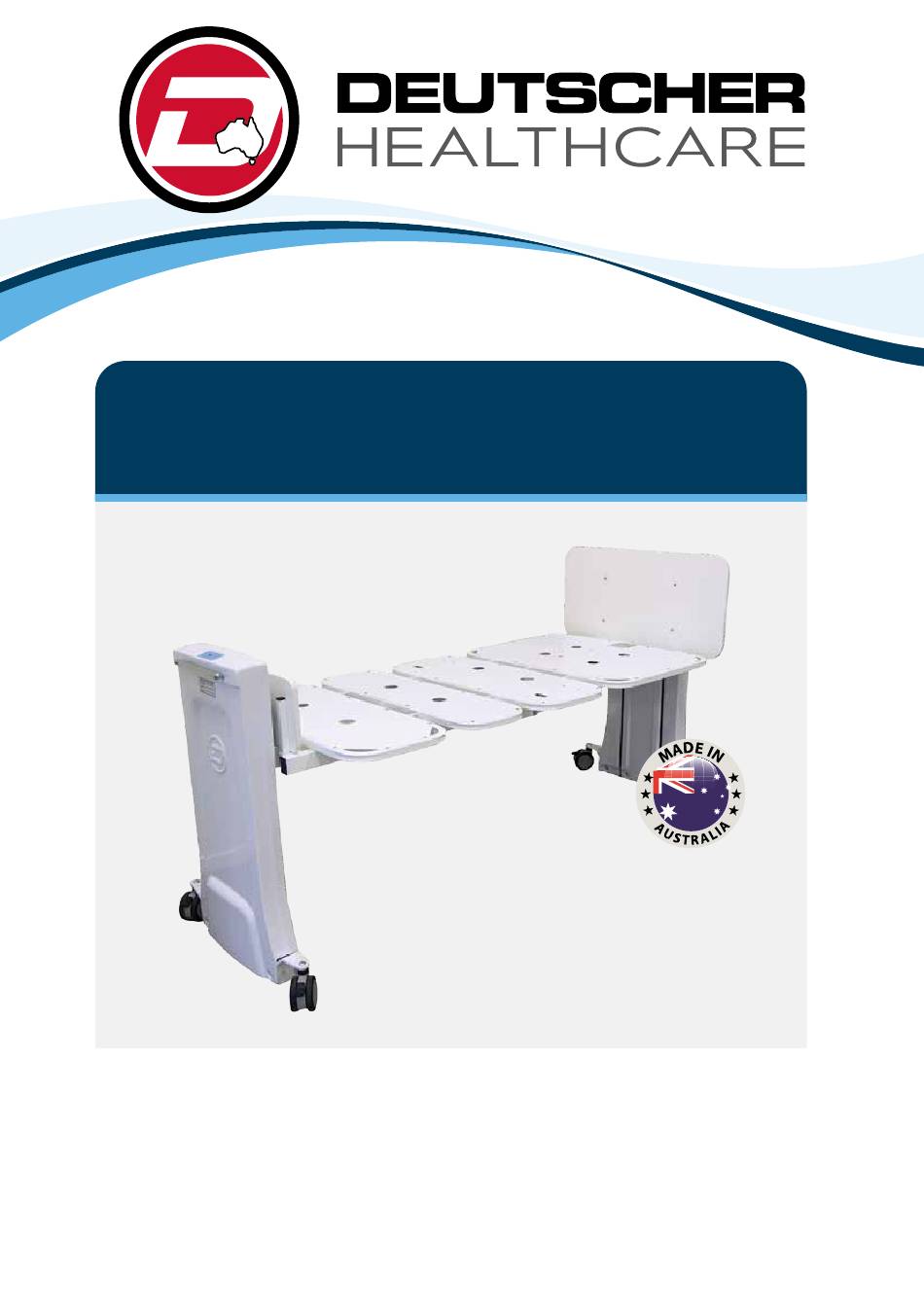

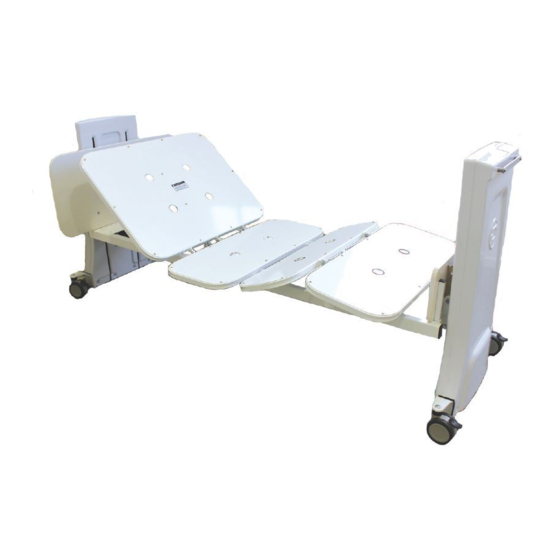

- Page 1 FLOORLINE BED ROSE II FLOORLINE MEDICAL BED For Aged Care, Hospital and Home use Models: WMR 1080 (HC, LC) WMR 1090 (HC, LC WMR 1090BT OPERATION & MAINTENANCE MANUAL Manufactured by Deutscher Healthcare | Ballarat VIC, Australia www.deutscherhealthcare.com.au...
- Page 2 QUALITY BEDS & ACCESSORIES...
-
Page 3: Table Of Contents
CONTENTS Introduction, General Information Bed Specifications & Components Bed Components Assembling the Bed Folding the bed Operation of the Bed, Installation of Accessories Cleaning, Storage and Handling, Disinfection Guidance Maintenance (Trouble Shooting) Routine Maintenance Removing Tower Covers Warranty Spare Parts Service History... - Page 4 INTRODUCTION The Deutscher Floorline bed has been designed to provide years of trouble free service. It’s very low minimum height reduces the need for side rails and reduces the harm risk associated with falls Designed and tested to IEC 60601-2-52:2010+A1:2015 to support a rated load of 220Kg* and extensively tested, this bed has a folding, robust, steel frame supported on stable end towers, facilitating easy storage and transport.
-
Page 5: Bed Specifications & Components
Side rails 3 bar and 4 bar • Alternative hand sets • Manual CPR release backrest Model No. and Description. Deutscher – Floorline WMR 1080 HC Standard bed with electrically operated hi-lo, tilt, backrest and knee break. WMR 1080 LC Added features to meet DHHS requirements WMR 1090 HC King Single with electrically operated hi-lo, tilt, backrest and knee break. -
Page 6: Bed Components
BED COMPONENTS SEE FIGURE 1. SEE FIGURE 1. Removable headboard Removable footboard Removable headboard Removable footboard (full width on BT bed) Back rest Back rest Bed Column Bed Column Control box (under bed) Handset Control (Plugs into control box Control box (under bed) Hand control Power Lead under back rest at head end of the bed) -
Page 7: Assembling The Bed
ASSEMBLING THE BED * A video of this process is available on our website - www.deutscherhealthcare.com.au NOTE: TWO PEOPLE ARE REQUIRED TO ASSEMBLE THE BED Tools required: 16mm spanner, 17mm spanner, 4mm allen key Ensure there is sufficient space in the room for the fully extended bed. Take care not to damage cables or hand control. -
Page 8: Folding The Bed
Step 4. Ensure ALL cables and fingers are clear. Keep foot end tower vertical and allow the mattress base to unfold. Step 5. While one person continues to hold the column with the free castors, the other inserts the two lower bolts at the base of that column and loosely attaches the nuts. See Figure 4 below. - Page 9 OPERATION OF THE BED IMPORTANT. Do not operate or use a bed that appears to be damaged or is not functioning correctly. Contact your service personnel for technical advice. Before operating controls, ensure no people (especially children) or pets are near the mechanism or under the bed.
- Page 10 INSTALLATION OF ACCESSORIES Use only accessories designed specifically for this bed. ENSURE THE BED STICK IS SECURELY CLAMPED. Mattress pumps can be attached to the bracket shown in Figure 2. WLR1050S/K Side Rail sets - 3 bar WLR1055S/K Side Rail sets - 4 bar WLR1045 Bed Stick with ball knob WLR1045F...
- Page 11 CLEANING, STORAGE & HANDLING When cleaning the bed frame, it must not be immersed in water or washed with a high pressure cleaner, as the water may find its way into the steel tubing and cause rusting. Clean the powder coated surfaces with detergent and water. The bed must be stored in a dry environment.
- Page 12 BED MAINTENANCE Troubleshooting Chart SYMPTOM POSSIBLE CAUSE REMEDY 1. Mains not connected. 1. Ensure plug fully connected Bed will not operate 2. Mains fuse needs and switch turned on. re-setting. 2. Re-set breaker/fuse 3. Broken lead, handset. 3. Replace handset. 4.
-
Page 13: Routine Maintenance
ROUTINE MAINTENANCE Every 6 Months • Check for any visible damage of electrical or mechanical parts. • With Actuators fully extended, clean the back rest and knee break actuator shafts with a soft, dry cloth. • Check all electrically controlled functions. •... - Page 14 REMOVING END COVERS FOR SERVICING Head end • Remove six M6 flat head cap screws at base of cover and two M6 screws at the top of the cover. (M4 Allen key required) • Raise cover gently – using fingers to prise the cover over steel work. •...
-
Page 15: Warranty
WARRANTY Deutscher Health Care will repair or replace, free of charge, any part of the steel frame that is defective in material or workmanship (or both) for a period of 10 years. The actuators and electrical components are covered by the manufacturer of these parts and have a 1, 3 or 5 year warranty (depending on the part). -
Page 16: Spare Parts
Foil switch lead 5748 Tower Cover (head end) 5609 Tower Cover (foot end) 5481 Wear Pads for Knee Break Contact for Technical Assistance DEUTSCHER HEALTHCARE Spare Parts etc. 731 Creswick Road, Ballarat VIC 3350 Phone 03 5339 5708 Fax. 03 5339 3189... -
Page 17: Service History
SERVICE HISTORY SERVICE HISTORY DATE PURCHASED: SERIAL# DATE PURCHASED: SERIAL# DATE DATE... - Page 18 SERVICE HISTORY SERVICE HISTORY DATE PURCHASED: SERIAL# DATE PURCHASED: SERIAL# DATE DATE...
- Page 19 Thank you for purchasing an Australian made Instructional videos available on our website for your reference are: Deutscher Healthcare Profile Video Floorline bed assembly video Fitting handset control to a floorline bed video Fitting self help pole to a floorline bed video...
- Page 20 Designed and manufactured by Deutscher Healthcare Ballarat, Victoria, Australia. Edition 4, This manual: part number 5476 JUNE 2018...
