Radioddity GD77 Cheat Sheet

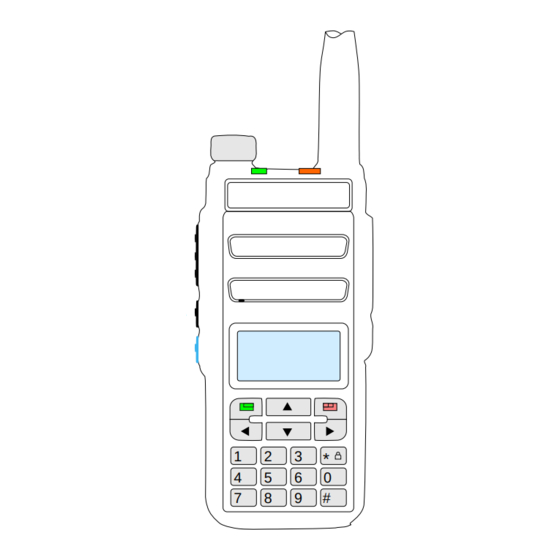

Radioddity GD77
OpenGD77 Cheatsheet
ON + Fn = Reset Radio
ON + Fn + S1 = Firmware mode
PTT + S1 = Show Last heard list
PTT + Fn = (FM) 1750Hz tone
PTT + numeric = (FM) DTMF tone
S1 = Backlight on (if Manual
set in Display options)
Fn + = Power
Fn + * = DMR <-> FM on current freq
MENU
Fn + = Ch details
Fn + S1 = RX <-> TX (repeater input)
MENU = Menu / Item Selection
DMR
TG up/dn
Chan up/dn
Fn+ Zone up/dn
S1 Show Freq
Scanning
= Scan / exit
(long)
While scanning:
= reverse scan direction
= skip nuisance channel
= skip once
Shortcuts
Fn + numeric = useful shortcut
•
The [BLUE] key is also referred to as the [FUNCTION] key.
•
The [GREEN] key as the [MENU] key.
• The [ORANGE] key as the [QUICK MENU] key.
The [BLACK] key is held on switch on to enable Hotspot mode when connected to a Raspberry pi running pi-
star by the programming USB cable.
OPENGD77 – Cheatsheet
On/OFF
PTT
S1
Fn
FM
Squelch
Freq up/dn
VFO Rx/Tx focus
Show offsets, sq%
DMR Talkgroups
Inverted display indicates receiving
on different TG to current Tx.
- Click
Volume
1 2 3
*
4 5 6 0
7 8 9 #
Fn to set Tx to received TG .
Quick Menu
- Double = toggle VFO A/B
- FM = VFO <-> Ch
- DMR = Filter (TS, CC, CTSS)
- VFO -> new channel
- BACK to exit
- MENU selects
Channel / Contact
Editing
- Fn + = bs, Fn + = space
- alphanumeric keypad
- MENU saves
- Fn + MENU saves permanently
Locks
MENU
, # = Lock PTT
MENU , = Lock keypad
*
Fn + = Unlock PTT, keypad *
Back / Cancel / Exit
Channel / VFO toggle
* = Toggle TS1, TS2 (DMR)
# = Enter DMR TG ID
to confirm
MENU
= return to prev TG
Private Call
# # = start Private Call
(Enter DMR ID and MENU
Fn + Back to exit.
# # # = select Digital Contact
Use to scroll. MENU to call.
Back to exit.
(Override DMR id with Fn
until reboot or
Fn + MENU = permanent)
)
+ #
