Vision3 Lighting IG2 Installation Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
(Failure to follow the warnings and instructions on this sheet could result in fi re, injury, failure of product, and/or voiding of warranty.)
1. Do not touch while lamp is on. Turn off /unplug and allow to cool
before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Keep lamp away from materials that may burn.
4. Do not install fi xture in contact with combustible materials.
5. Do not touch lamp at any time. Use a soft cloth. Oil from your skin
may damage lamp.
6. Do not operate with damaged or missing parts.
7. Do not disassemble beyond faceplate removal to facilitate lamp and
accessory installation/replacement, or as otherwise directed in the
installation instructions below.
8. Periodically remove any debris or build-up accumulated on the
faceplate and lens or in the housing. Failure to do so could result in
reduction in performance, fi xture overheating, or fi re.
Notes:
• This fi xture should not be mounted in such a way that the Faceplate is buried
or below grade.
• This fi xture requires a remote transformer.
• Wiring connections must not be exposed to moisture/water. All wiring must
be done using the provided Silicone Filled Wire Nuts, or in another industry
standard water tight manner. Failure to do so could result in water being
siphoned into the Body thru the wire strands in the Power Input Cable and
causing a moisture/water related failure.
• LED models should only be powered and controlled by compatible
transformers and control systems. Contact Vision3 Lighting for approved
transformer / controls list. Using non-approved transformers / controls could
cause the LED to not operate properly or fail.
• Integral LED options come with a High/Low switch. See 'Integral LED
Output Switching' instructions in the 'Integral LED Maintenance' section.
Switch will be set to 'High' setting at the factory, unless otherwise specifi ed
when ordered.
• Use only Vision3 approved Retrofi t MR16 LED options and supplied
Heatsink Mount, otherwise LED may overheat and fail.
• LED ratings subject to change without notice. See website or contact V3 for
most current info.
Caution! Fixture will be hot if lamp is on. Remove power and allow fi xture to
cool before performing any adjustments or maintenance.
Unpack:
1. Unpack the fi xture from it's box.
2. Check through all packaging material to make sure there aren't any items
hidden in it before discarding.
3. Remove the Faceplate Screws (4X) and remove the Faceplate/Cap and Body
assembly from the Housing (if shipped assembled).
Inspection:

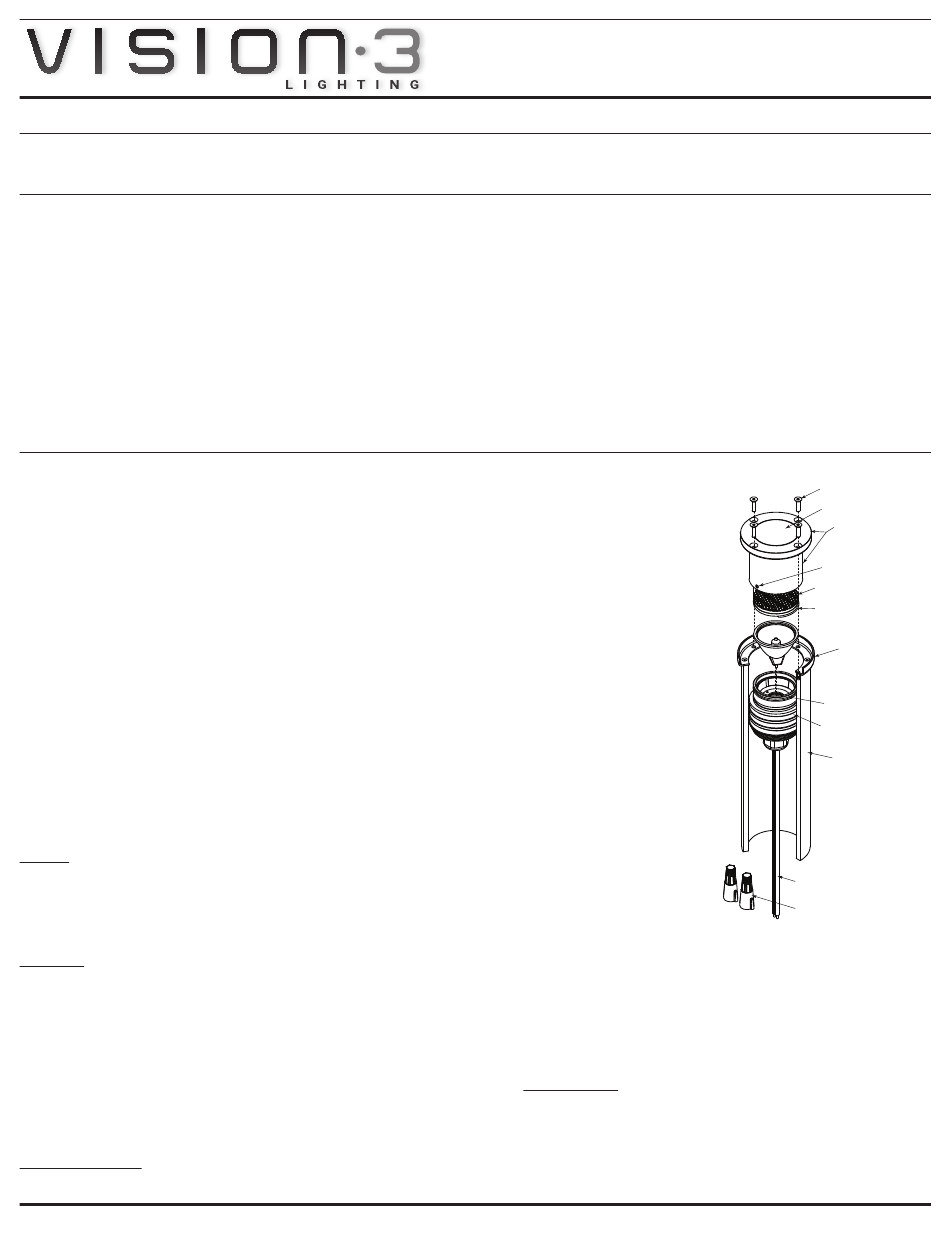

1. Referring to the sketch on the right, along with the packing list and order,
check that all components are accounted for. Contact Vision3 lighting imme-
diately if any discrepancies are found. Note: depending on the options and
accessories ordered, certain components may not be included.
2. Inspect all parts for shipping damage, such as: broken lenses, broken lamps,
cut or nicked cable, damage to the cable connector on the Body, cut O-ring,
etc. If any damage is found, do not install fi xture. Contact Vision3 lighting
so that damaged items can be repaired or replaced.
3. Cover and store all parts in a clean, dry, and safe place until it is time for
installation. Note: Plastic bags are handy for keeping parts organized and
clean during storage.
Housing Installation:
1. Before beginning Housing installation, examine Housing to ensure that there
©2003-2024 Vision3 Lighting™
Installation Instructions
P.O. Box 607, Fowler, CA 93625
MR16 In Ground Up Light
9. Do not install within 10 feet of a pool, spa, or fountain.
10. Have installed in accordance with all applicable installation codes
and standards by a person familiar with the construction, operation,
and hazards involved. Consult a qualifi ed electrician to ensure
correct branch circuit conductor.
11. Use only cable rated for low voltage. Cable buried more than 6"
must be suitable for direct burial. Direct burial cable may be ordered
from Vision3 Lighting.
12. Lens temperatures can get hot enough, with some lamps, to cause
injury when touched.
13. Failure to follow these instructions can cause fi re, injury, and/or
void warranty.
is no damage, visible defects, or
missing parts. Contact Vision3
lighting if any issues are found.
2. Dig an appropriately sized hole for
the Housing and trench for direct
burial power cable.
3. Run power supply cable (not
supplied) in the trench to the hole
in accordance with all applicable
installation codes and standards.
4. Feed the power supply cable thru
the bottom of the Housing. Note:
Feed enough thru so that there
will be at least 12" of excess cable
past the top of the Housing when
installed in the hole.
5. Place the Housing in the hole so
that it is at the desired elevation. If
using with the Pour Collar option,
the housing should be placed such
that the top of the Pour Collar is
fl ush or above grade level. If not
using the optional Pour Collar, the
Housing should be placed such that
the top of the Housing is at least
1/8" above grade level. Note: If
there is to be ground cover (such as
rock, bark, or low growing plants)
used around the fi xture, allow for
that during installation and raise
the installed height accordingly.
Caution!: The fi xture gets hot when operated and should not be installed so
that it is in contact with combustible materials!
6. Coil any excess power supply cable into the Housing.
7. Stuff a rag into the top of the Housing to keep dirt/concrete from entering
the Housing and threaded holes during the rest of installation. Alternatively,
a cover can be fashioned from wood or cardboard.
8. Fill in around the Housing:
Landscape Install
a. Begin fi lling in the hole around the Housing with soil in 1" to 2" incre-
ments, compacting as you go. Note: If the local soil conditions prevent
proper drainage, such as with clay, it is recommended that sand or a
loose soil/peat gravel mixture be used to backfi ll the hole. It may also
be required to dig a deeper hole to allow for thorough drainage around
fi xture.
