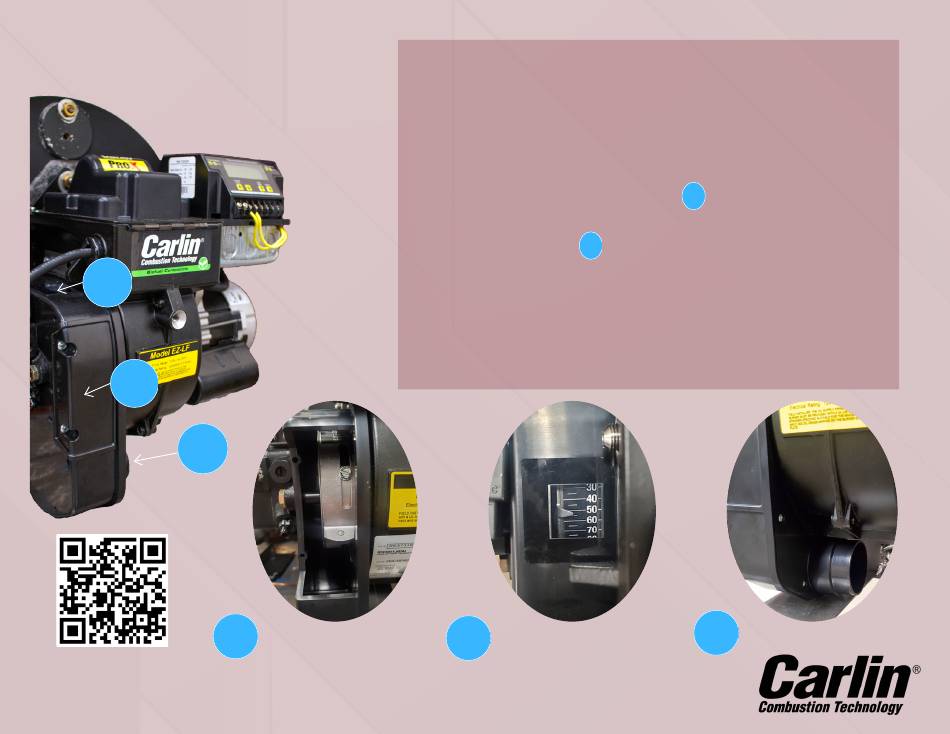

Carlin Air Boot
Quick Guide
2
1
3
SCAN THE QR CODE
FOR PRODUCT VIDEO,
LITERATURE AND MORE!
CARLIN BURNERS ARE FACTORY SET. However you must
use a combustion analyzer to verify that the burner is
properly set up per the appliance manufacturer's listed
settings.
TO ADJUST THE AIR SETTING:
1
Air Band Access Cover
(Removed)
WWW.CARLINCOMBUSTION.COM
1.
Remove the air band access cover.
2.
Loosen the lock screw and move the air band to achieve the
desired CO2 setting.
2
literature included with this unit for proper settings.
3.
Tighten the air band lock screw.
4.
Replace the air band access cover and use a combustion analyzer
to verify that the burner is properly set up per the appliance
manufacturer's listed settings.
Air Setting Window
2
• 203-680-9401 • NORTH HAVEN, CT
1
Consult the appliance manufacturer's
3
Air Inlet
