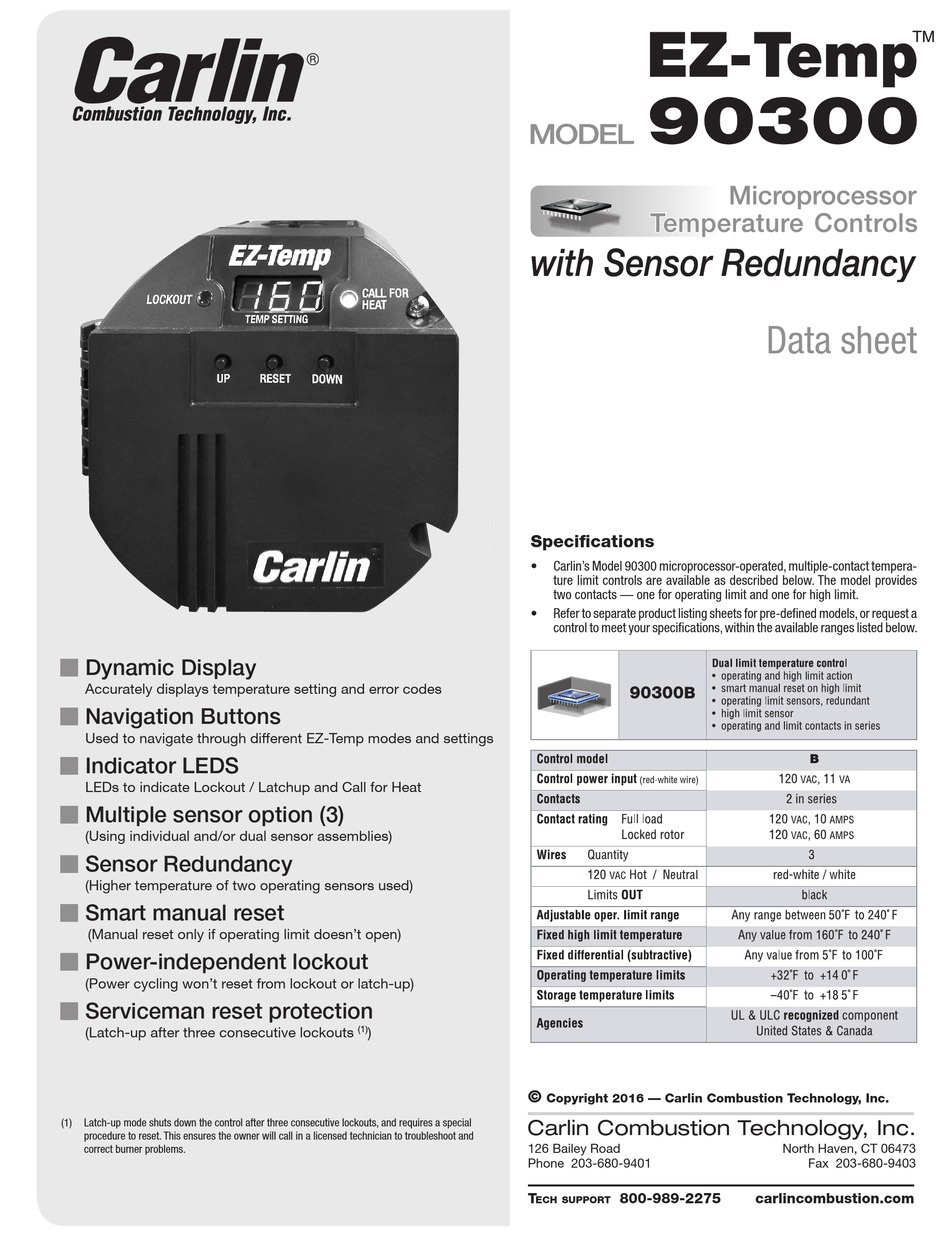

Carlin EZ-Temp 90300 Datasheet

Dynamic Display
m
Accurately displays temperature setting and error codes
Navigation Buttons
m
Used to navigate through different EZ-Temp modes and settings
Indicator LEDS
m
LEDs to indicate Lockout / Latchup and Call for Heat
Multiple sensor option (3)
m
(Using individual and/or dual sensor assemblies)
Sensor Redundancy
m
(Higher temperature of two operating sensors used)
Smart manual reset
m
(Manual reset only if operating limit doesn't open)
Power-independent lockout
m
(Power cycling won't reset from lockout or latch-up)
Serviceman reset protection
m
(Latch-up after three consecutive lockouts
(1) Latch-up mode shuts down the control after three consecutive lockouts, and requires a special
procedure to reset. This ensures the owner will call in a licensed technician to troubleshoot and
correct burner problems.
Specifications
•
•
(1) )
©
Carlin Combustion Technology, Inc.
126 Bailey Road
Phone 203-680-9401
T
ech support
Carlin's Model 90300 microprocessor-operated, multiple-contact tempera-
ture limit controls are available as described below. The model provides
two contacts — one for operating limit and one for high limit.
Refer to separate product listing sheets for pre-defined models, or request a
control to meet your specifications, within the available ranges listed below.
Copyright 2016 — Carlin Combustion Technology, Inc.
800-989-2275
Data sheet
North Haven, CT 06473
Fax 203-680-9403
carlincombustion.com
