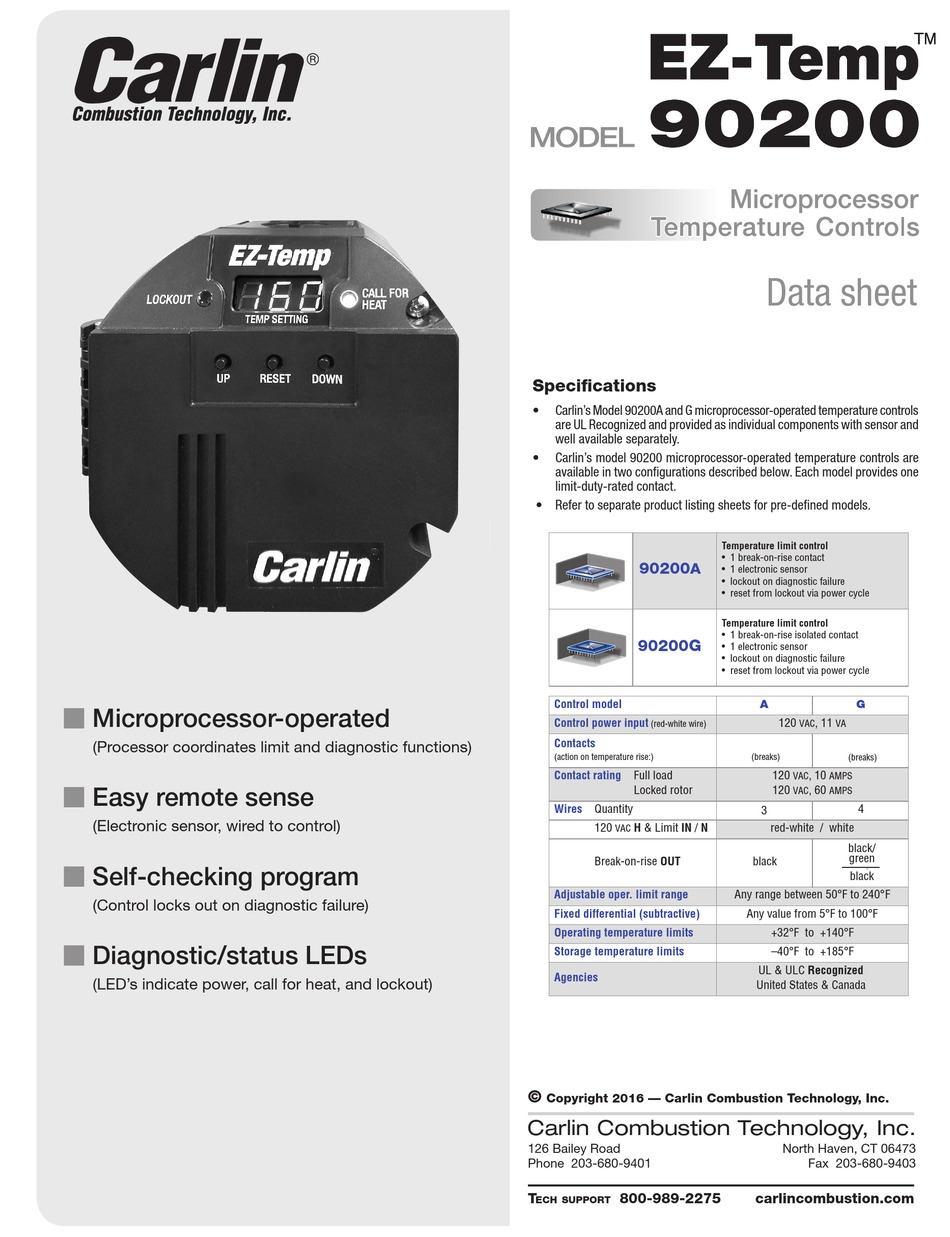

Carlin EZ-Temp 90200 Datasheet

Advertisement

Quick Links

Microprocessor-operated
m
(Processor coordinates limit and diagnostic functions)
Easy remote sense
m
(Electronic sensor, wired to control)
Self-checking program
m
(Control locks out on diagnostic failure)
Diagnostic/status LEDs
m
(LED's indicate power, call for heat, and lockout)
Specifications
Carlin's Model 90200A and G microprocessor-operated temperature controls
are UL Recognized and provided as individual components with sensor and
well available separately.
Carlin's model 90200 microprocessor-operated temperature controls are
available in two configurations described below. Each model provides one
limit-duty-rated contact.
• Refer to separate product listing sheets for pre-defined models.
90200
A
90200G
Control model
Control power input
(red-white wire)
Contacts
(action on temperature rise:)
Contact rating
Full load
Locked rotor
Quantity
Wires
120
H & Limit IN / N
VAC
Break-on-rise OUT
Adjustable oper. limit range
Fixed differential (subtractive)
Operating temperature limits
Storage temperature limits
Agencies
©
Copyright 2016 — Carlin Combustion Technology, Inc.
Carlin Combustion Technology, Inc.
126 Bailey Road
Phone 203-680-9401
T
800-989-2275
ech support
Data sheet
Temperature limit control
• 1 break-on-rise contact
• 1 electronic sensor
• lockout on diagnostic failure
• reset from lockout via power cycle
Temperature limit control
• 1 break-on-rise isolated contact
• 1 electronic sensor
• lockout on diagnostic failure
• reset from lockout via power cycle
A
G
120
, 11
VAC
VA
(breaks)
(breaks)
120
, 10
VAC
AMPS
120
, 60
VAC
AMPS
4
3
red-white / white
black/
green
black
black
Any range between 50°F to 240°F
Any value from 5°F to 100°F
+32°F to +140°F
–40°F to +185°F
UL & ULC Recognized
United States & Canada
North Haven, CT 06473
Fax 203-680-9403
carlincombustion.com
