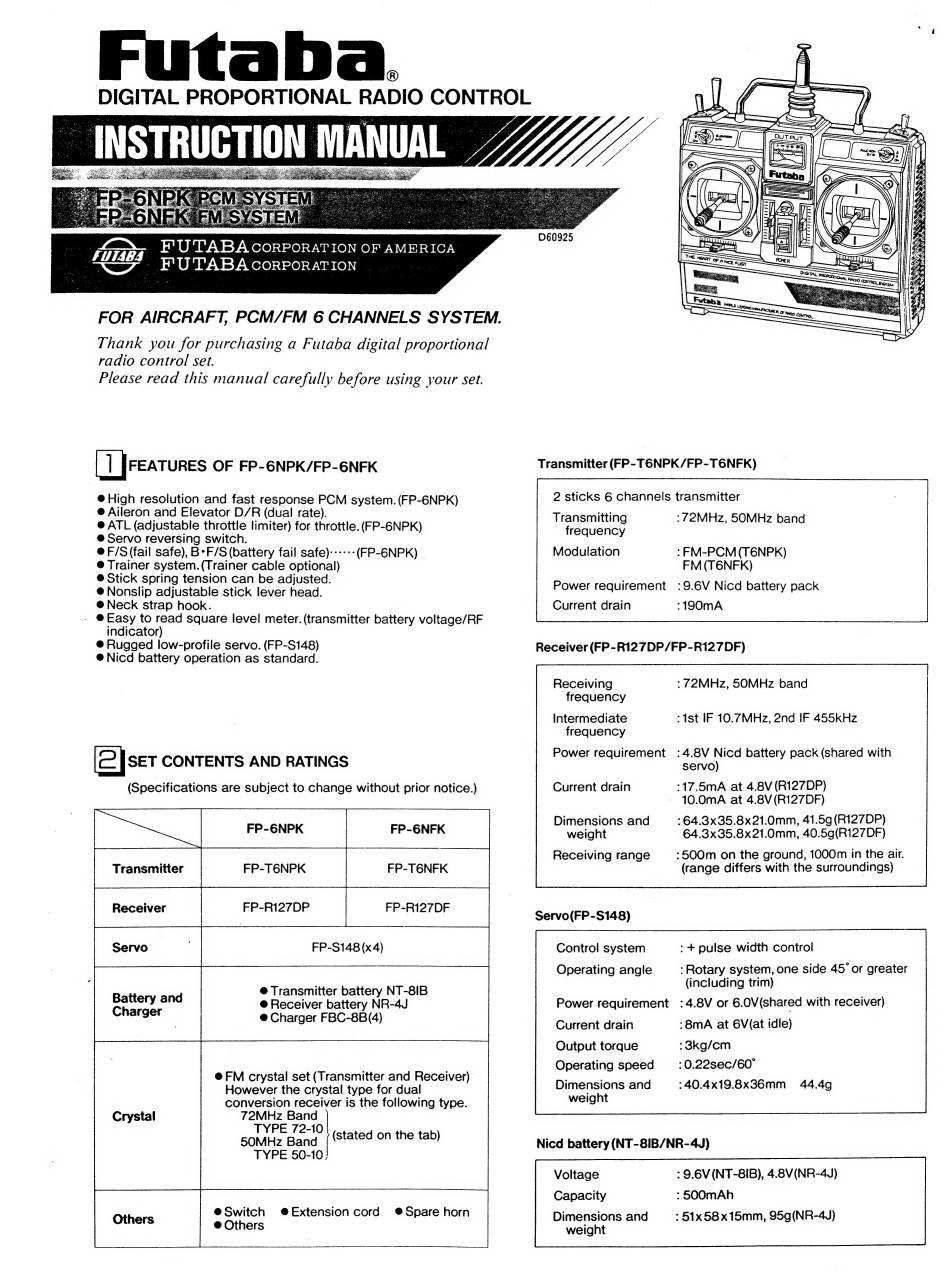

FUTABA FP-6NPK Instruction Manual

Futaba.
DIGITAL PROPORTIONAL RADIO CONTROL
or FTRT F'UTABA CORPORATION OF AMERICA
NS
FUTABA CORPORATION
FOR AIRCRAFT, PCM/FM 6 CHANNELS SYSTEM.
Thank you for purchasing a Futaba digital proportional
radio control set.
Please read this manual carefully before using your set.
| ] JFeaTurEs OF FP-6NPK/FP-6NFK
@ High resolution and fast response PCM system. (FP-6NPK)
è Aileron and Elevator D/R (dual rate).
@ ATL (adjustable throttle limiter) for throttle. (FP-6NPK)
@ Servo reversing switch.
@F/S(fail safe), B°F/S(battery fail safe) ----- (FP-6NPK)
@ Trainer system. (Trainer cable optional)
® Stick spring tension can be adjusted.
®Nonslip adjustable stick lever head.
@ Neck strap hook.
- @Easy to read square level meter. (transmitter battery voltage/RF
indicator)
® Rugged low-profile servo. (FP-S148)
@ Nicd battery operation as standard.
|2]ser CONTENTS AND RATINGS
(Specifications are subject to change without prior notice.)
Receiver FP-R127DP
Battery and
Charger
FP-T6NFK
FP-R127DF
® Transmitter battery NT-8IB
@ Receiver battery NR-4J
@ Charger FBC-8B(4)
è FM crystal set (Transmitter and Receiver)
However the crystal type for dual
conversion receiver is the following type.
72MHz Band
TYPE 72-10
50MHz Band
TYPE 50-10 |
(stated on the tab)
@ Switch @Extension cord @Spare horn
@ Others
———————L
OUT Ñ
D60925

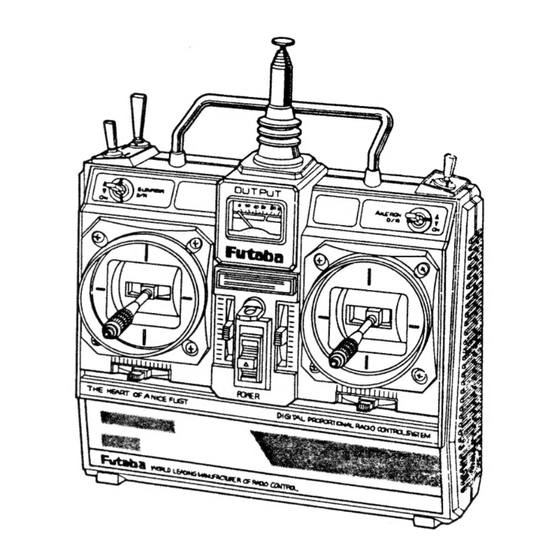

Transmitter (FP-T6NPK/FP-T6NFK)
2 sticks 6 channels transmitter
:72MHz, SOMHz band
Transmitting
frequency
Modulation : FM-PCM (T6NPK)
FM (T6NFkK)
Power requirement :9.6V Nicd battery pack
Current drain :190mA
Receiver (FP-R127DP/FP-R127DF)
Receiving : 72MHz, 50MHz band
frequency
Intermediate : 1st IF 10.7MHz, 2nd IF 455kHz
frequency
Power requirement :4.8V Nicd battery pack (shared with
servo)
:17.5mA at 4.8V (R127DP)
10.0mA at 4.8V(R127DF)
Dimensions and *64.3x35.8x21.0mm, 41.5g(R127DP)
weight 64.3x35.8x21.0mm, 40.5g(R127DF)
:500m on the ground, 1000m in the air.
(range differs with the surroundings)
Current drain
Receiving range
Servo(FP-S148)
Control system : + pulse width control
: Rotary system, one side 45° or greater
(including trim)
Power requirement :4.8V or 6.0V(shared with receiver)
:8mA at 6V(at idle)
:3kg/cm
:0.22sec/60°
:40.4x19.8x36mm 44.4g
Operating angle
Current drain
Output torque
Operating speed
Dimensions and
weight
Nicd battery (NT-8IB/NR-4J)
Voltage : 9.6V (NT-8IB), 4.8V(NR-4J)
: 500mAh
-51x58x15mm, 95g(NR-4J)
Capacity
Dimensions and
weight
