AFRISO ADS 160 Instruction Manual

INSTRUCTION MANUAL
AFRISO Sp. z o.o.
Customer Service Team
Szałsza, ul. Kościelna 7
phone: +48 32 330 33 55
42-677 Czekanów zok@afriso.pl
www.afriso.pl
WARNING!
The product may only be mounted, commissioned and dismantled by qualified,
specially trained staff.
Changes and modifications carried out by unauthorized persons may result in danger
and are prohibited for safety reasons.
The dirt separator is equipped with a magnetic element. People with pacemakers
are advised to maintain a safe distance from the device. Attention should also
be paid to electronic equipment installed near the device. The magnetic element
of the separator may cause interference.
Risk of burns from hot medium - see the section on MAINTENANCE.
APPLICATION
Magnetic dirt separator ADS 160 is designed for installation in systems where there is continuous circulation
of the medium. It is used to remove solid impurities that can cause damage to system components. It can
be used in installations where the working medium is water or mixtures of water and glycol with a glycol con-
centration not exceeding 50%.
TECHNICAL DATA
Parameter
Medium temperature
Medium pressure
Glycol concentration
Kvs
Recommended flow
Magnet power
Housing material
Connection material Connection material
Filtration mesh material
Filtration mesh size
Sealing material
953.001.0097
Magnetic dirt separator ADS 160
Art.-No 77 160 00
Value
max 90°C
max 3 bar
max 50%
6,9 m³/h
max 2,1 m 3 /h
1,4 T (14 000 Gs)
PA66 (poliamid)
brass
stainless steel
500 μm oraz 800 μm
EPDM
DESCRIPTION OF THE DEVICE/SCOPE OF DELIVERY
C C
A A
G G
H H

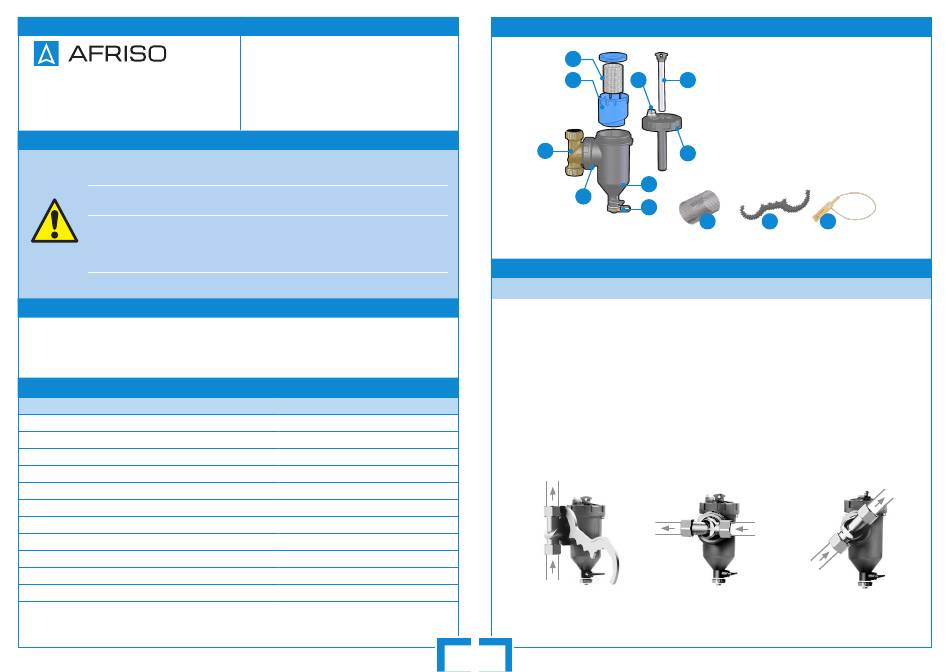

Fig. 1 Construction of the magnetic dirt separator ADS 160
INSTALLATION
Danger! Leave at least 150 mm of free space from the top edge of the separator to allow maintenance.
The ADS 160 dirt separator should be mounted on the return line to the heat/cold source, to intercept
solid contaminants that can cause damage to the heat/cold source, as well as to the circulation pumps. The
separator can be mounted on vertical pipes (Fig. 2), horizontal pipes, (Fig. 3), as well as on diagonal sections
(Fig. 4). The separator's drain valve should always face downward. The arrow on the connection housing
indicates the direction of flow from the system to the heat/cold source. Use the included wrench to change
the position of the connection. To simplify maintenance, we recommend installing a shut-off valve before and
after the separator. After installing the separator and opening the shut-off valves, unscrew the manual air
vent, using a flathead screwdriver, to get rid of the accumulated air.
The separator is factory-equipped with a mesh filter with a mesh size of 500 μm.
Such filter accuracy is recommended for new installations. For modernized installations, 2-stage filtration
is recommended. The first stage is to filter the installation with a mesh filter with 500 μm mesh size for about
one month. After this time, unscrew the lid (using the wrench included in the kit) and replace the existing filter
with a 800 μm mesh filter supplied in the kit.
Fig. 2 Installation of the
separator ADS 160 on the
vertical line
1 2
A. a flow director
B. a 14,000 Gs magnet
C. mesh filter (500 μm)
F F B B
D. separator settler
E. cover with pocket for magnet
F. manual air vent
G. movable connection 2x GW G1''
H. mounting ring
I. drain valve
J. additional mesh filter (800 μm)
E E
K. wrench
L. security seal
D D
I I
J J K K
Fig. 3 Installation of the Fig. 4 Installation of the
separator ADS 160 on the separator ADS 160 on the
horizontal line
L L
diagonal line
