Datacom Systems SS series SPAN User Manual

Aggregators/regenerators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Datacom Systems Inc
SPAN and Multi-link
Aggregators/Regenerators
USERguide
SS series SPAN Aggregators/Regenerators
VS series SPAN Aggregators/Regenerators
VS series Multi-link Aggregators/Regenerators
SS series SPAN
VS series SPAN
VS series Multi-Link
June 2007
541-0106-U-A.01
© 2004-2007 by Datacom Systems Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS series SPAN and is the answer not in the manual?

Questions and answers

Related Manuals for Datacom Systems SS series SPAN

Summary of Contents for Datacom Systems SS series SPAN

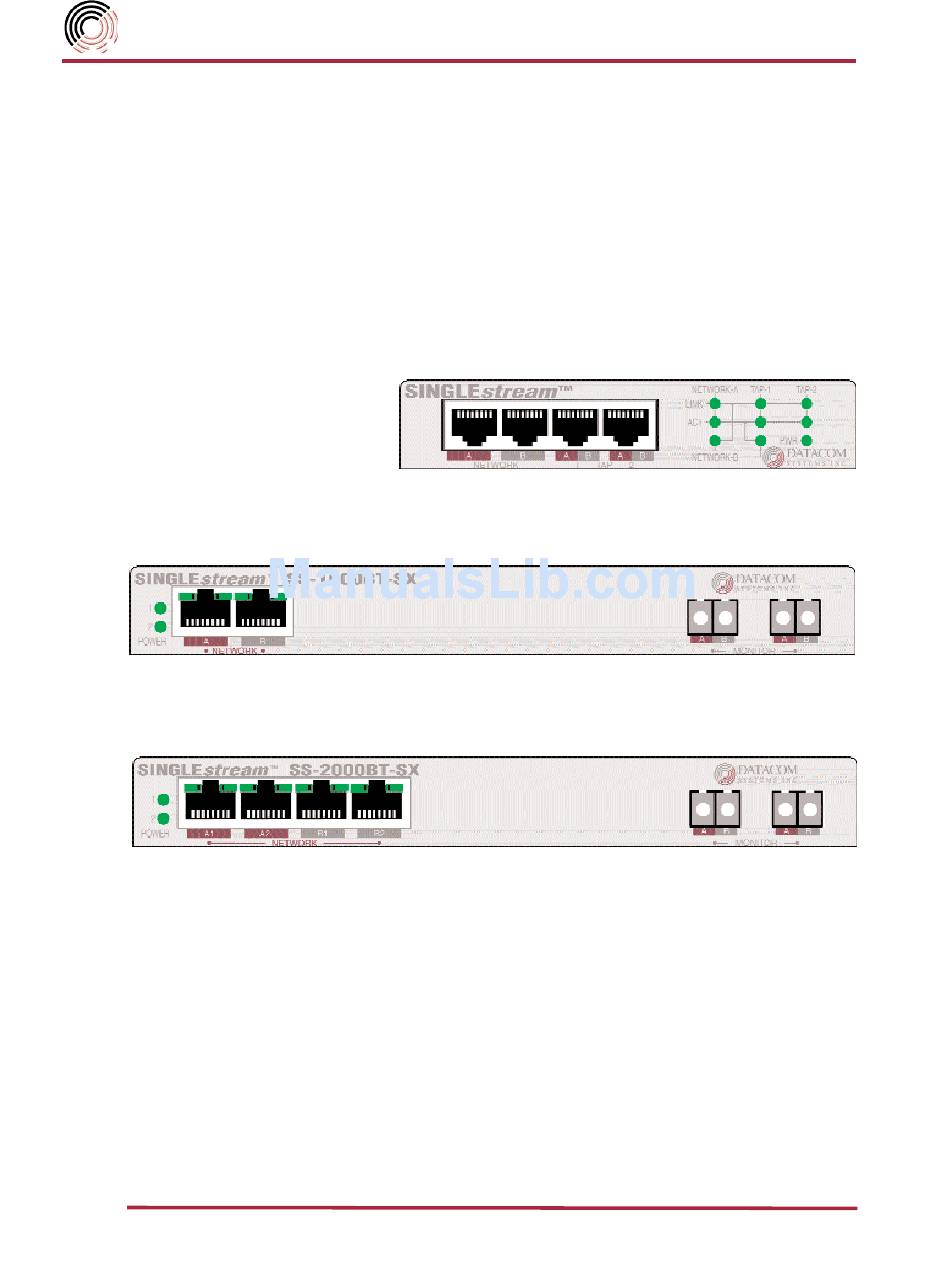

  • Page 1 Datacom Systems Inc SPAN and Multi-link Aggregators/Regenerators USERguide SS series SPAN Aggregators/Regenerators VS series SPAN Aggregators/Regenerators VS series Multi-link Aggregators/Regenerators SS series SPAN VS series SPAN VS series Multi-Link June 2007 541-0106-U-A.01 © 2004-2007 by Datacom Systems Inc. All Rights Reserved.

  • Page 3: License Agreement

    Datacom Systems, Inc. To obtain this permission, write to the attention of the Datacom Systems legal department at 9 Adler Drive, East Syracuse, New York 13057-1290, or call 315-463-9541.
  • Page 4 These explanatory labels are included in the information for the user in accordance with the requirements of IEC 60825-1. SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc CLASS 1 LASER PRODUCT...

  • Page 5: Table Of Contents

    Datacom Systems Inc Contents What Shipped? ........... 6 Introduction .

  • Page 6: What Shipped

    What Shipped ? SS series SPAN Aggregators/Regenerators 1 — SS-(200, 201, 202 or 203) 2 — Switching AC Adapters 2 — AC Power Cords 1 — Warranty Card 1 — QUICK install Guide 1 — USER guide VS series SPAN Aggregators/Regenerators 1 —...

  • Page 7: Introduction

    Datacom Systems Inc Introduction The SPAN and Multi-link Aggregator/Regenerators can combine data from multiple Ethernet network segments into one stream of data. A single device, such as an intrusion detection system, protocol analyzer, or network probe can receive the aggregated data with just one network interface card (NIC).

  • Page 8: Singlestream ™ Span Ss-200 Series Aggregators/Regenerators Overview

    8:30 AM to 5:30 PM EST. Support is available via phone, fax, e-mail, or website. SINGLEstream ™ Datacom Systems' SINGLE stream superior solution for 24x7 monitoring of full-duplex Ethernet links. While traditional Ethernet taps might enable full-duplex monitoring of all traffic on a network link, they transmit the data to the monitoring device (e.g.

  • Page 9: Ss-200 Features & Benefits

    A built-in memory buffer can manage overflows in data transmission and can allow seamless continuity of full-duplex monitoring. Just like all of Datacom Systems' tap products, the SINGLE stream Aggregator/Regenerator is completely non-intrusive. The SINGLE stream SPAN Aggregator/Regenerator redundant power supply design has been thoroughly tested.

  • Page 10: Ss-200 Specifications

    TAP 1 A/B TAP 2 A/B Distance Limit Power Requirements Operating Temperature Storage Temperature Humidity Dimensions Weight SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc MONITOR PORT SPEED TCP Reset 2(10/100BT) 2(100BT) 2(10/100BT) 2(100BT) Specification Two SPAN CAT 5E...

  • Page 11: Ss-200 Hardware Description

    Datacom Systems Inc SS-200 Hardware Description — Aggregator/Regenerator front panel. This is the location for all cable connections and status LEDs. Figure 1 - SS-200 Front Panel and functional diagram An explanation of each front panel legend follows: NETWORK A, B: These ports are RJ45 connectors used for network SPAN connection.

  • Page 12: Ss-200 Application & Hardware Installation

    NOTE: Let the “LINK” LED be your guide. If you are properly connected, NETWORK-A and NET- WORK-B “ LINK ” LEDs remain illuminated simultaneously. SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc ™ SS-100 and one power sup- ™...
  • Page 13 Datacom Systems Inc Step 3. Connect the other primary network cables to the primary SINGLEstream NETWORK B connector. The NETWORK-B LINK LED illuminates indicating link has been established between the NETWORK B connector and primary NETWORK B device. !!!: The network is bidirectional Tx/Rx path sensitive and correct connection is indicated by simultaneously illuminated NETWORK-A and NETWORK-B “...

  • Page 14: Versastream ™ Span Series Aggregators/Regenerators Overview

    VERSAstream able to collect data from the secondary segment, so you will never miss a single packet. SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc ™ SPAN aggregator/regenerator into a pair of ™ SPAN aggregator/regenerator will still be...

  • Page 15: Versastream Span Series Features & Benefits

    Datacom Systems Inc ™ VERSAstream SPAN Series Features & Benefits • Connect any compatible device (protocol analyzer, probe, intrusion detection system, more) for simultaneous monitoring of two full-duplex SPAN Ports - eliminates the need for network connectors to be disconnected and connected each time a segment needs to be monitored •...

  • Page 16: Versastream Span Series Specifications

    VS-1031BT-02, VS-1041SX-SX, VS-1062BT, VS-1082, VS-1082LX-BT, VS-1082SX-BT, or VS-1082SX-SX: Weight — VS-1022BT-BT, VS-1022SX-SX, VS-1031BT, VS-1031BT-02, VS-1041SX-SX, VS-1062BT, VS-1082, VS-1082LX-BT, VS-1082SX-BT, or VS-1082SX-SX: SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc MONITOR PORT SPEED TCP Reset 2(10/100/1000) 2(1000SX) LC 3(10/100/1000) 3(10/100/1000) 4(1000SX) LC...

  • Page 17: Versastream Span Series Hardware Description

    Datacom Systems Inc VERSAstream ™ SPAN Hardware Description — Figure 12 illustrates the VERSAstream This is the location for all cable connections and status LEDs. Figure 3 - VS-1022BT-BT Front Panel and functional diagram Figure 4 - VS-1022SX-SX Front Panel and functional diagram Figure 5 - VS-1031BT and VS-1031BT-02 (TCP reset) Front Panel and functional diagram SPAN and Multi-Link Aggregators/Regenerators •...
  • Page 18 Datacom Systems Inc Figure 6 - VS-1041LX-LX Front Panel and functional diagram Figure 7- VS-1041SX-SX Front Panel and functional diagram Figure 8 - VS-1062BT Front Panel and functional diagram SPAN and Multi-Link Aggregators/Regenerators • USERguide...
  • Page 19 Datacom Systems Inc Figure 9 - VS-1082 Front Panel and functional diagram Figure 10 - VS-1082LX-BT Front Panel and functional diagram Figure 11 - VS-1082SX-BT Front Panel and functional diagram SPAN and Multi-Link Aggregators/Regenerators • USERguide...
  • Page 20 Rx NETWORK port. LED Display Code Code Left LED Link Solid Green Data Flashing Green SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc WITH LINK OR DATA Right LED Code Green 1,000 Mbs Orange 100 Mbs 10 Mbs...

  • Page 21: Application & Hardware Installation

    Datacom Systems Inc MONITOR: These ports are either RJ45 or duplex-LC connectors used for connection to NIC MONITOR card connectors of each network monitoring tool. network con- nections. The LED Display Code Table deciphers the RJ45 jacks with inte- grated LEDs that display line status and line speed of each port. The LED associated with each duplex-LC jack indicates when light signal has been detected on the respective Rx MONITOR port.

  • Page 22: Full Duplex Aggregated Application

    1 and 2 ports, respectively, of the VERSA- stream ™ . Plug the power supplies into the external power source, furthermore, SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc NETWORK duplex-LC ports. The ™ MONITOR ports. Two DRL494–2m ™...

  • Page 23: Primary/Redundant Router Application

    Datacom Systems Inc connecting the second power supply to a different external power source circuit than the first power supply eliminates power as a single point of failure. The POWER 1 and 2 LEDs illuminate indicating power 1 and 2, respectively, are on.
  • Page 24 The LED Display Code table deciphers the RJ45 jacks with integrated LEDs that display line status and line speed of each port. SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc ™ VS-1022BT-BT SPAN Series aggregator/regenerator, RJ45 NETWORK ports. The NETWORK ™...

  • Page 25: Versastream ™ Multi-Link Series Aggregators/Regenerators Overview

    Datacom Systems Inc VERSAstream ™ Multi-link Series Overview — VERSAstream ™ Multi-Link Aggregator can combine data from multiple Ethernet network segments into one stream of data. A single Gigabit device, such as an intru- sion detection system, protocol analyzer, or network probe can receive the aggregat- ed data with just one network interface card (NIC).

  • Page 26: Features And Benefits

    • 2-year limited manufacturers warranty on hardware. • Datacom Customer Service personnel are available Monday through Friday from 8:30 AM to 5:30 PM EST. Support is available via phone, fax, e-mail, or website. SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc...

  • Page 27: Versastream ™ Multi-Link Series Features & Benefits

    Datacom Systems Inc VERSAstream ™ Multi-link Series Specifications NETWORK PORT SPEED VERSA stream ™ VS-1026BT-BT 6(10/100/1000) VS-1028 8(10/100/1000) VS-1028SX 8(1000SX) LC VS-1046 6(10/100/1000) VS-1046SX 6(1000SX) LC VS-1412 kit 12(10/100/1000) VS-1610 kit 10(10/100/1000) Feature Channel — Network: Monitor: Line Speeds Supported — Network: Monitor: Cable Type —...

  • Page 28: Versastream Multi-Link Series Hardware Description

    Datacom Systems Inc VERSAstream ™ Multi-link Hardware Description — Figure 16 through Figure 22 illustrates the VERSAstream ™ Multi-link Series aggregator/regenerator front panel. This is the location for all cable connections and status LEDs. Figure 16 - VS-1026BT-BT Front Panel and functional diagram...
  • Page 29 Datacom Systems Inc Figure 19 - VS-1046 Front Panel and functional diagram Figure 20 - VS-1046SX Front Panel and functional diagram Figure 21 - VS-1412 Front Panel (1 of 2 in kit) and functional diagram SPAN and Multi-Link Aggregators/Regenerators • USERguide...
  • Page 30 LEDs that display line status and line speed of each port. The LED associated with each duplex-LC jack indicates when light signal has been detected on the respective Rx MONITOR port. SPAN and Multi-Link Aggregators/Regenerators • USERguide Datacom Systems Inc WITH LINK OR DATA Right LED Code...

  • Page 31: Analyzing/Monitoring Gigabit Etherchannel

    Datacom Systems Inc DAISY: DAISY ports IN and OUT are RJ45 connectors cabled to the next aggregator. The LED Display Code Table deciphers the RJ45 jacks with integrated LEDs that display line status and line speed of each port. Analyzing/Monitoring Gigabit EtherChannel CONCERN: The popularity of web-based services has increased bandwidth consumption.

  • Page 32: Application & Hardware Installation

    Unlike other solutions, the VERSAstream SINGLEstream ™ Gigabit Aggregation Taps or other Datacom Systems Gigabit Ethernet taps provides complete visibility into Gigabit EtherChannel, while allowing network professionals to use their existing analysis and monitoring devices. The VERSAstream Aggregator is a simple "plug and play" solution that can combine data from multiple Gigabit Ethernet network segments into one stream of data.
  • Page 33 Datacom Systems Inc To connect the VERSAstream refer to Figure 23 and follow these steps: 1. Two power supplies are provided. Use of the second power supply is strongly recommended to assure uninterrupted monitoring. Connect both power supply barrel connectors into the power 1 and 2 ports, respectively, of the VERSA- stream ™...

  • Page 34: Vs-1028 With Taps Application

    Datacom Systems Inc VS-1028 with Taps Application — shown in Figure 24, focuses on a typical VERSAstream ™ VS-1028 Multi-Link Aggregator application deployed with Datacom Taps to combine traffic from different network segments and output the aggregated data to either a single network tool or two connected monitoring devices.
  • Page 35 Datacom Systems Inc To connect the VERSAstream refer to Figure 24 and follow these steps: 1. Two power supplies are provided. Use of the second power supply is strongly recommended to assure uninterrupted monitoring. Connect both power supply barrel connectors into the power 1 and 2 ports, respectively, of the VERSA- ™...

  • Page 36: Vs-1028 Span And In-Line Application

    Datacom Systems Inc VS-1028 SPAN and In-line Application — shown in Figure 25, focuses on a typical VERSAstream ™ VS-1028 Multi-Link Aggregator deployed to gain complete visibility into your SPAN and In-Line environments combining traffic from up to 8 different segments and outputting the aggregated data to two connected monitoring devices.
  • Page 37 Datacom Systems Inc To connect the VERSAstream refer to Figure 25 and follow these steps: 1. Two power supplies are provided. Use of the second power supply is strongly recommended to assure uninterrupted monitoring. Connect both power supply barrel connectors into the power 1 and 2 ports, respectively, of the VERSA- stream ™...

  • Page 38: Vs-1610 Kit Application

    Datacom Systems Inc VS-1610 kit Application — shown in Figure 26, focuses on a typical VERSAstream ™ VS1610 kit (Two VS-1610s mounted in RMC-2 Rack Mount Chassis and daisy-chained together) Multi-Link Aggregator deployed. This VS-1610 ™ kit is similiar to the VS-1412 kit VERSAstream...
  • Page 39 Datacom Systems Inc To connect the VERSAstream refer to Figure 26 and follow these steps: 1. Two power supplies are provided. Use of the second power supply is strongly recommended to assure uninterrupted monitoring. Connect both power supply barrel connectors into the power 1 and 2 ports, respectively, of the VERSA- ™...
  • Page 40 Datacom Systems Inc SPAN and Multi-Link Aggregators/Regenerators • USERguide...

  • Page 41: Customer Service, World Wide Web

    TION (RMA) NUMBER FROM DATACOM CUSTOMER SERVICE AT (315) 463-9541 Limitation On Liability The warranties set forth above are exclusive and in lieu of all other warranties. Datacom Systems, Inc. (DSI) makes no other warranties, expressed or implied, and DSI expressly disclaims all other warranties, including but not limit- ed to implied warranties of merchantability and fitness for a particular purpose.
  • Page 42 Datacom Systems Inc SPAN and Multi-Link Aggregators/Regenerators • USERguide...
  • Page 44 Datacom Systems Inc www.datacomsystems.com © 2004 by Datacom Systems Inc. All Rights Reserved.

This manual is also suitable for:

Vs series spanVs series multi-link
