Datacom Systems FTP-8000 Series Fast Start Manual

Tap Series FTP-8000/9000
FASTstart Guide

What is included?

Fiber taps allow you to make a copy of network traffic as it travels between two network devices. These highly reliable, non-
powered devices are the perfect solution to collect and capture network traffic for application analysis.

Installation

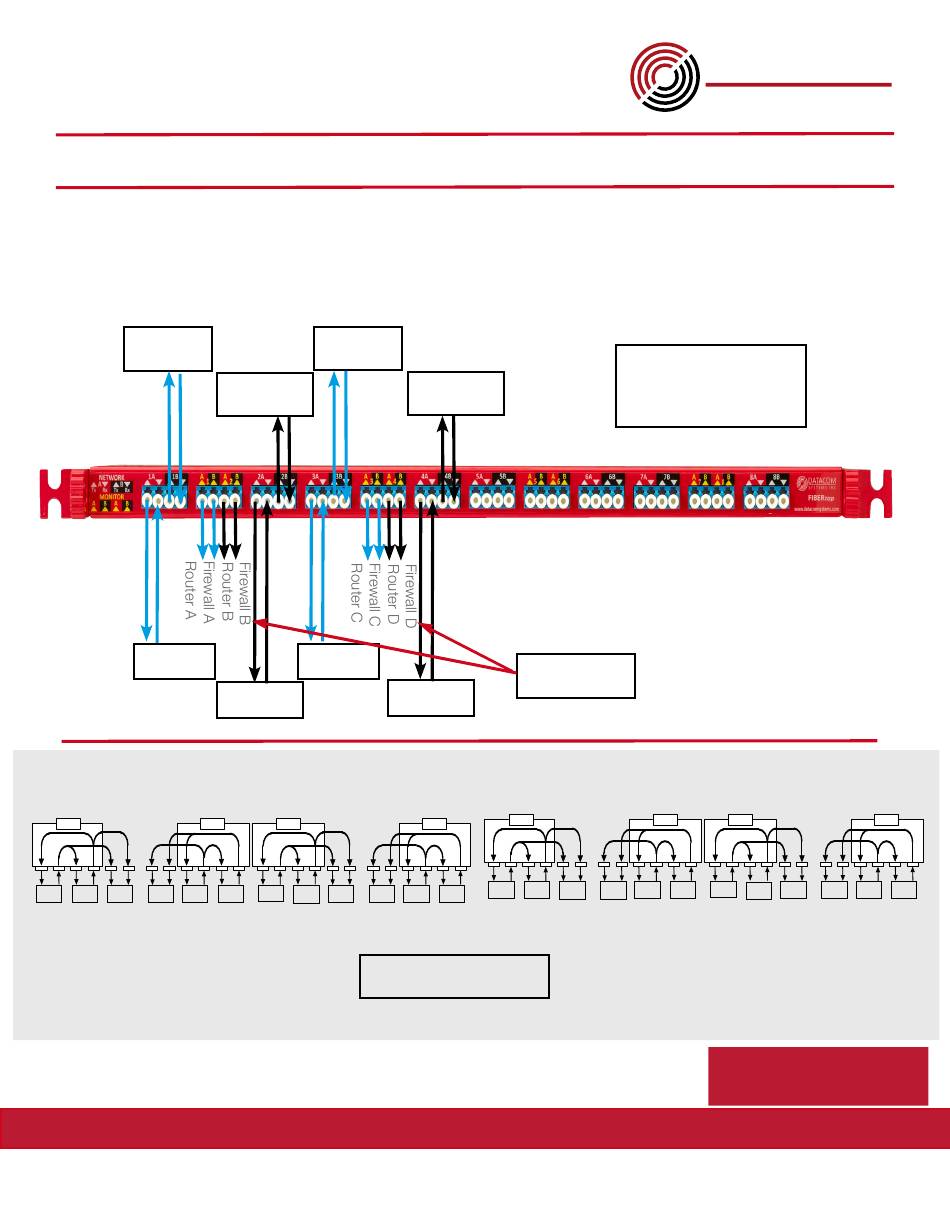

Follow the wiring diagrams shown below. Fiber taps are directional, and use specific inputs and outputs for TX and RX to work
properly. Make sure to clean all connectors with compressed air and clean patch cable connectors prior to installation.

Typical Insertion loss ratios*

Firewall A
Router A
Link 1
RX
TX TX RX TX TX TX TX TX
A A
B B
NET NET NET
MON MON
1A 1B 1 2 2A
