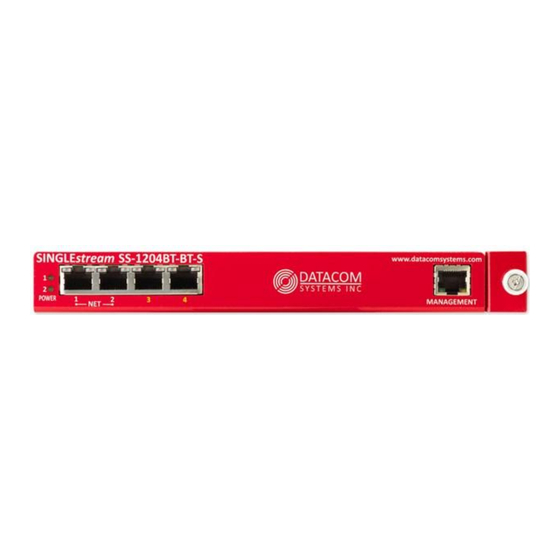

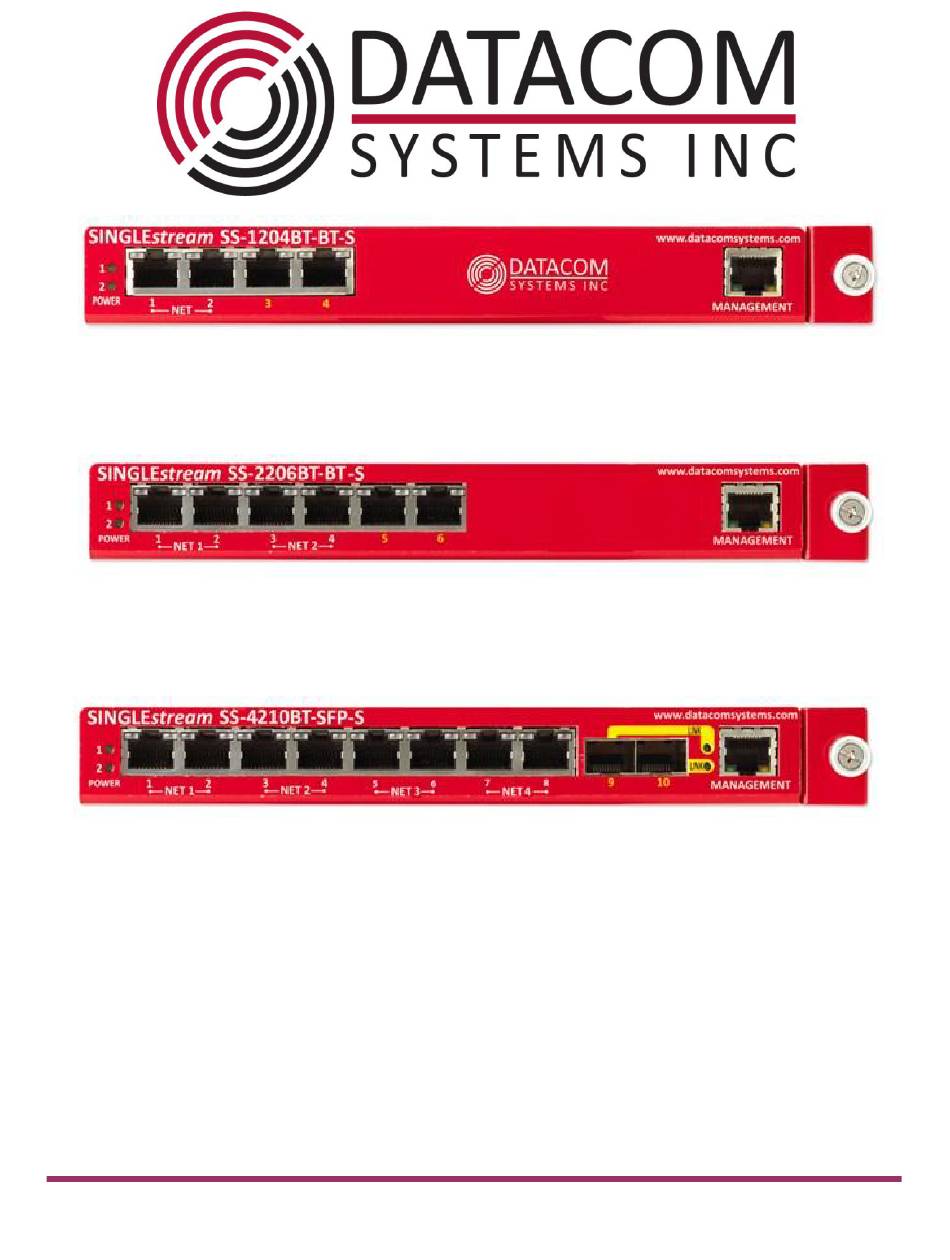

- Page 1 SS-1200-S Series Link Aggregation Taps SS-2200-S Series Dual-Link Aggregation Taps SS-4200-S Series Quad-Link Aggregation Taps Link Aggregation Taps USERguide Feburary 2017 © 2017 Datacom Systems Inc...
-
Page 2: Table Of Contents
Front Panel Description ..........................12 3.4.1 Power ..............................12 3.4.2 Copper Network Port Pairs ........................13 3.4.3 Fiber TAP Port Pairs ..........................13 3.4.4 Copper Any-To-Any Ports ........................14 3.4.5 SFP Any-To-Any Ports ..........................14 © 2017 Datacom Systems Inc... - Page 3 Show Device Uptime (SH DE UP) ......................26 4.4.13 Show Product (SH PR) ........................... 26 4.4.14 Show TCP CONNECTIONS (SH TC CO) ....................26 4.4.15 Show (SH) .............................. 26 4.4.16 Show Time (SH TI) ..........................26 4.4.17 SU ................................27 © 2017 Datacom Systems Inc...
- Page 4 Set SNMPv3 MontorUser (SE V3 MU) ....................33 4.8.11 Set SNMPv3 SuperUser (SE V3 SU) ......................33 4.8.12 Set SNMPv3 Trap Destination (SE V3 TR DE) ..................33 4.8.13 Show SNMP (SH SN) ..........................34 © 2017 Datacom Systems Inc...
- Page 5 Show SNMPv2C Trap Destinations (SH V2 TR DE) ................. 34 4.8.16 Show SNMPv2C Writecommunity (SH V2 WC) ..................34 4.8.1 Show SNMPv3 Trap Destinations (SH V3 TR DE) ................... 34 4.8.1 Show SNMPv3 Users (SH V3 US) ......................35 Customer Service ............................. 36 © 2017 Datacom Systems Inc...
-
Page 6: Terms Of Use
Datacom Systems, Inc. License Agreement Notice to All Users: By using Datacom Systems, Inc. products, you agree to the terms set forth. No licenses, express or implied, are granted with respect to the technology described and Datacom Systems, Inc. -
Page 7: Safety Notices And Warnings
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern. E. Reliable Earthing — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips). © 2017 Datacom Systems Inc... -
Page 8: Overview
This User Guide addresses the SINGLEstream family which includes the SS-1200-S, SS-2200-S and SS-4200-S series of products with specific models within each series. Additional support, documentation and help can be found on the Datacom Systems website: http://www.datacomsystems.com LINKprotect™... -
Page 9: What Shipped
SS-1200, SS-2200, SS-4200 Series USERguide What Shipped? SS-1200-S Series Link Aggregation Taps 1 — Model: SS-1200-S series Link Aggregation Tap 2 — Switching AC Adapters 2 — AC Line Cords (Adopts to Country of Destination) 1 — DRL512-2M-R serial cable, DB9 M/F straight thru SS-2200-S Series Dual-Link Aggregation Taps 1 —... -
Page 10: Supported Sfp Transceivers
SS-1200, SS-2200, SS-4200 Series USERguide Supported SFP Transceivers Datacom Systems supports the following small form-factor pluggable (SFP) transceivers in 1G Capable SINGLEstream series products. Model # Specification FCLF-8521-3 1000BASE-T FTLF1318P3BTL 1000BASE-LX FTLF1319F1GTL 1000BASE-LX FTLF8519P3BTL 1000BASE-SX 3 Hardware SS-1200 Series Front Panels 3.1.1... -
Page 11: Ss-1204Sx-Bt-S
SS-1200, SS-2200, SS-4200 Series USERguide 3.1.5 SS-1204SX-BT-S 3.1.6 SS-1204SX-SFP-S SS-2200 Series Front Panels 3.2.1 SS-2206BT-BT-S 3.2.2 SS-2206SX-SFP-S 3.2.3 SS-2206LX-SFP-S 3.2.4 SS-2210BT-BT/SFP-S © 2017 Datacom Systems Inc... -
Page 12: Ss-4200 Series Front Panels
1 and 2, respectively, are on. If either LED is not illuminated, it could indicate a defective power source and investigation for the cause is recommended to insure redundant power integrity. © 2017 Datacom Systems Inc... -
Page 13: Copper Network Port Pairs
Network device, the other copy to Monitor). Reverse Wiring: If the fibers are connected backwards, light will not be received on the monitoring port. This is because the internal coupler that splits the light is unidirectional. © 2017 Datacom Systems Inc... -
Page 14: Copper Any-To-Any Ports
The Management port is used for Telnet, SSH, and SNMP features. It is used for remote connectivity and configuration of the SINGLEstream, and for SNMP traps/alerts. This can be connected directly to a PC, or through a network switch for remote access. © 2017 Datacom Systems Inc... -
Page 15: Rear Panel Description
Two DC input power sockets are provided on the rear panel. Although only one switching AC adapter power supply is required to power the configurable unit, use of a second independent power source is strongly recommended to assure uninterrupted monitoring. © 2017 Datacom Systems Inc... -
Page 16: Installation And Configuration
Character Handling: Printable characters (ASCII codes 32-126) and non-printable codes noted below: Non-Printable Character Description <enter key> Executes command; places command in history buffer <backspace key> Erases previous character entry; removes history buffer entry © 2017 Datacom Systems Inc... -
Page 17: Initial Login (Default)
Open a support case by filling out the pertinent information at: http://www.datacomsystems.com/support/con tact-support You will be sent a password recovery tool and associated instructions by email. By following these instructions you can reset both passwords on the tap. © 2017 Datacom Systems Inc... -
Page 18: What Is That Clicking Noise? - Linkprotect Feature
Note that if LINKprotect® is enabled and the network ports are not connected, the SINGLEstream will make clicking sounds. The clicking sounds are part of the default configuration of the LINKprotect® feature, when one or both network ports don’t have link. Default SINGLEstream Traffic Flow © 2017 Datacom Systems Inc... -
Page 19: Normal Singlestream Operation
Switch and Firewall will be interrupted. On a tap without LINKprotect® enabled, the Switch would be unaware that the link has gone down. This is because the Switch is still linked to the SINGLEstream. LINKprotect Not Enabled © 2017 Datacom Systems Inc... - Page 20 Since the endpoints will now be directly connected, the Switch now sees that the link to the Firewall has gone down. Relay Closing After the Relay Closes © 2017 Datacom Systems Inc...
-
Page 21: What Happens After The Relays Close? - Manual Mode
The SINGLEstream will not try and resurrect the link in this mode, which is often preferable on some redundant/HA systems in place on the network devices connected to the SINGLEstream. See page 6 for an example on recovering the ports once they fail over. © 2017 Datacom Systems Inc... -
Page 22: What Happens After The Relays Close? - Auto Mode
If it detects that the link has been recovered, it will place the network pair back into normal operation mode and send traffic to the monitoring ports. Both Tap ports may go up/down to check the link status. © 2017 Datacom Systems Inc... -
Page 23: Linkprotect Commands
Every 10 seconds after the failover, the Tap will try and reconnect to the end devices to see if link is possible. Example #2: SET LP 1 off. This command will turn LINKprotect® off for the first network pair. © 2017 Datacom Systems Inc... -
Page 24: System Command List
Set Date MMDDYY Example Set Date 022317 4.4.5 Set Ping (SE PI) Usage This command is used set management port to respond to ping ICMP requests. Guidelines Syntax Set Ping (on/off) Example Set Ping on © 2017 Datacom Systems Inc... -
Page 25: Set Prompt (Se Pr)
Set Telnet (on/off) Syntax Example Set Telnet on 4.4.10 Set Time (SE TI) Usage This command is used to set the system time for the SINGLEStream. Guidelines Set Time HHMMSS Syntax Example Set Telnet 103045 © 2017 Datacom Systems Inc... -
Page 26: Set Upgrade (Se Up)
Guidelines serial number, and software version on the unit. Syntax Show Show Example 4.4.16 Show Time (SH TI) Usage This command is used to show the current time. Guidelines Syntax Show Time Show Time Example © 2017 Datacom Systems Inc... -
Page 27: Su Set Password (Su Se Pa)
Syntax Example Set IP 192.168.1.50 Set Subnet (SE SU) 4.5.3 Usage This command is used to change the subnet IP of the management port. Guidelines Set Subnet <valid IP address> Syntax Example Set Subnet 255.255.255.0 © 2017 Datacom Systems Inc... -
Page 28: Set Tcp Port (Se Tc Po)
Example Delete User maintenance 4.6.3 Edit User (ED US) This command is used to edit the credentials of an existing user, such as the Usage Guidelines password. Syntax Edit User <username> Edit User maintenance Example © 2017 Datacom Systems Inc... -
Page 29: Show Users (Sh Us)
Set Port Name (SE PO NA) Usage This command is used to set the name of a port for user-convienience. Guidelines Syntax Set Port Name <portnumber> to <name> Example Set Port Name 1 to Firewall © 2017 Datacom Systems Inc... -
Page 30: Set Port Speed(Se Po Sp)
Show Port Config (SH PO CO) This command is used to show all available configurable information on each port, Usage Guidelines including current link status and speed. Show Port Config Syntax Example Show Port Config © 2017 Datacom Systems Inc... -
Page 31: Show Port Routing (Sh Po Ro)
There MUST be at least one SNMP trap destination configured for the Guidelines SNMPv3 feature to work. Delete SNMPv3 Trap Destination <ipAddress> <portNum> <user> <security level> Syntax Example Delete SNMPv3 Trap Destination 192.168.1.50 162 DatacomTest authPriv © 2017 Datacom Systems Inc... -
Page 32: Delete Snmpv3 User (De V3 Us)
Set SNMPv2C Trap Destination 192.168.1.40 162 DatacomTest 4.8.9 Set SNMPv2C Writecommunity (SE V2 WC) Usage This command is used to set the Writecommunity field for an SNMPv2C trap. Guidelines Syntax Set SNMPv2C Readcommunity <string> Set SNMPv2C Writecommunity writegroup Example © 2017 Datacom Systems Inc... -
Page 33: Set Snmpv3 Montoruser (Se V3 Mu)
This command is used to set the trap destination for the SNMPv3 Trap. Guidelines Syntax Set SNMPv3 Trap Destination <IP address> <port number> <user> <security level> Example Set SNMPv3 Trap Destination 192.168.1.50 162 DatacomTest authPriv Security types are: noAuthNoPriv Command authNoPriv Notes authPriv © 2017 Datacom Systems Inc... -
Page 34: Show Snmp (Sh Sn)
Show SNMPv2C Writecommunity 4.8.1 Show SNMPv3 Trap Destinations (SH V3 TR DE) Usage This command is used to show the configured SNMPv3 Trap Destination. Guidelines Show SNMPv3 Trap Destinations Syntax Show SNMPv3 Trap Destinations Example © 2017 Datacom Systems Inc... -
Page 35: Show Snmpv3 Users (Sh V3 Us)
SS-1200, SS-2200, SS-4200 Series USERguide 4.8.1 Show SNMPv3 Users (SH V3 US) Usage This command is used to show the configured SNMPv3 monitor and super users. Guidelines Syntax Show SNMPv3 Users Example Show SNMPv3 Users © 2017 Datacom Systems Inc... -
Page 36: Customer Service
SS-1200, SS-2200, SS-4200 Series USERguide 5 Customer Service Datacom Customer Service is available via telephone and Internet. You may also find the assistance you need at our website: http://www.datacomsystems.com. Telephone: +1 315 463-9541 Internet website: http://www.datacomsystems.com/support/contact-support © 2017 Datacom Systems Inc... - Page 37 SS-1200, SS-2200, SS-4200 Series USERguide Datacom Systems Inc. 9 Adler Drive • East Syracuse, NY 13057 TEL: +1 315 463-9541 • FAX: +1 315 463-9557 http://www.datacomsystems.com...
