Summary of Contents for SENADA OSPREY

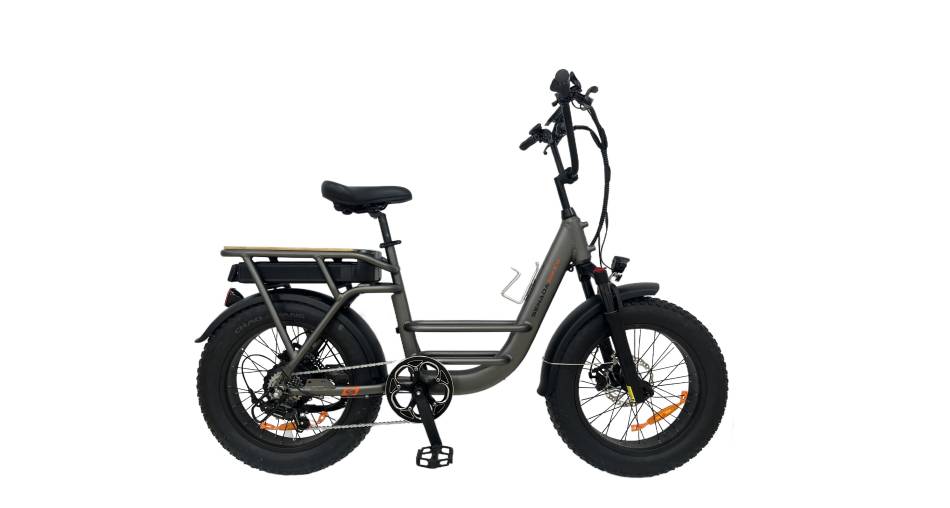

- Page 1 OSPREY Quick Operation Guide...
- Page 3 Make all the parts and tools ready Front wheel fender 16 in 1 tool Headlight Pedal Front Charger wheel Manual Saddle...
- Page 4 Accessories details Accessories details 1. 16 in 1 tool 2. Charger 3. Manual 4. Pedals 2pcs 5. Front wheel 6. Front fender 7. Saddle 8. Headlight...
- Page 5 1.Handle and front wheel installation 2.Foot pedal installation 3.Saddle installation 4.Battery removing and installation 5.Switch on and off...
- Page 6 1.Handle and front wheel installation Use a 6mm hex wrench to Place the handle in the center position The installation height of the remove the fixing screws from and cover the fixing cover handle shall not exceed the the car handle Security thread...
- Page 7 Use a No. 4 hexagonal wrench loose the screw pre-installed on front fork bracket, then fix the fender stick onto the front fork, tighten the screws...
- Page 8 Loose the screw on the front fork frame, fix the the headlight bracket front fender hanger onto the front fork frame, use your hand hold the 10mm socket nut to fix the nut at the back side of the light, use the No.
- Page 9 Install the front wheel, place the brake pads in the disc brake, and place the front wheel in the front fork...
- Page 10 Fix the front wheel, place the gasket in the front axle, and tighten the corresponding nut clockwise...
- Page 11 Adjust the handlebar parallel to the fork...
-
Page 12: Pedal Installation
2.Pedal installation mark "R" on the pedal shaft is the right pedal. mark "L" on the pedal shaft is left pedal. Turn the pedal shaft clockwise and pre tighten it. Turn the pedal shaft counterclockwise and pre tighten it. After enter the crank, and then turn clockwise with After enter the crank , and then... - Page 13 3.Saddle Installtion Insert the seat tube and adjust it to a proper height (Note: the depth of the seat tube shall Open the clamp of set tube be buried above the safety tick mark).
- Page 14 Fix the clamp of the set tube, tight the nut,if it is too tight or loose, please adjust the nut at the opposite side.
- Page 15 4.Battery removeing and installation When the key is in the position shown in the figure, press the key inward, then turn the key counterclockwise to unlock the battery lock, remove the key, and pull the battery out from the inside...
- Page 16 Push the battery inward, align it with the position, rotate the key clockwise, and then continue to rotate clockwise to connect the power supply...
-
Page 17: Switch On And Off
5.Switch on and off 1.Insert the key, turn it all the way clockwise, and then turn on the power 2.Long press the middle button of the meter to turn on and off...
