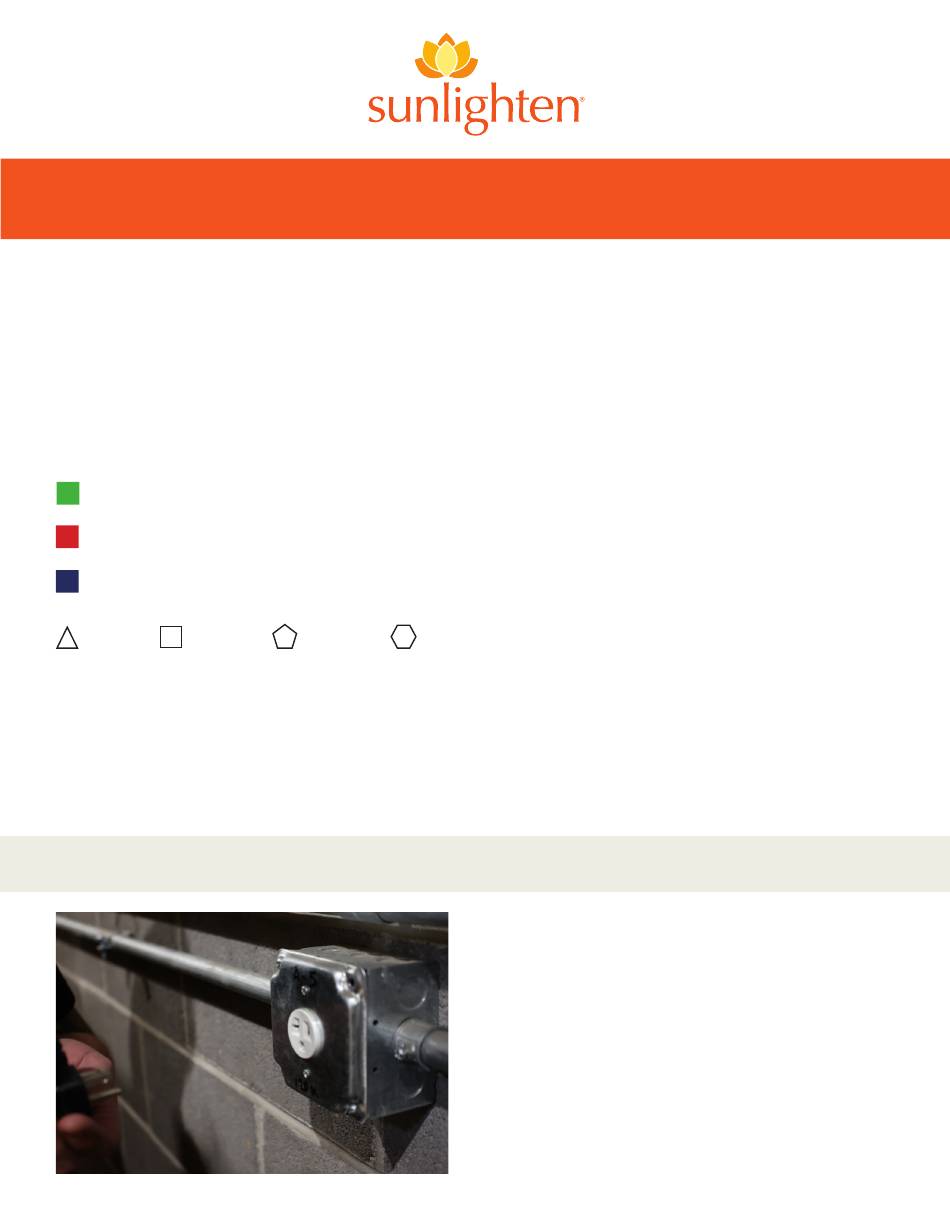

mPulse
We're very excited you received your replacement power box and are eager to get your unit
back up to optimal operation! This power box is designed with customer installation in mind
and this guide will help you through that process while avoiding any potential pitfalls.
Labeling
The wiring connections of your power box are labeled with stickers of particular shapes and
colors to help you classify them.
Near Infrared (NIR): green sticker; semi-transperent connector; red and white wiring
Heat: red sticker; solid white connector; black wiring
Sensor (NTC): blue/dark purple sticker; solid white connector; red and white wiring
Left Wall
Back Wall
Each wall is assigned a different shape. Walls are labeled with the viewpoint of facing the
back wall inside the sauna. Colors correspond with different levels of power distributed to
parts of the unit - power feeds, blue sensor or NTC feeds, and green near infrared feeds.
NOTE: The shapes of the blue, red, and green stickers may differ from what is listed in this
document, but the color will not.
Power Box 6 Installation Guide
®
Right Wall
Front Wall
INSTALLATION
Step 1
Unplug the unit from the power source or flip the
breaker for the dedicated circuit to the sauna.
You may find the power box area more easily
accessible if you also remove the bench. What
follows can be done without bench removal, but
is more efficient and comfortable with the added
space.
