Signature

We're very excited you received your replacement power box and are eager to get your unit

back up to optimal operation! This power box is designed with customer installation in mind,

and this guide will help you through that process while avoiding any potential pitfalls.

Labeling

The wiring connections of your power box are labeled with stickers to help you classify them.

Please see the diagram on the last page for which connections to pair as a reference.

Step 1

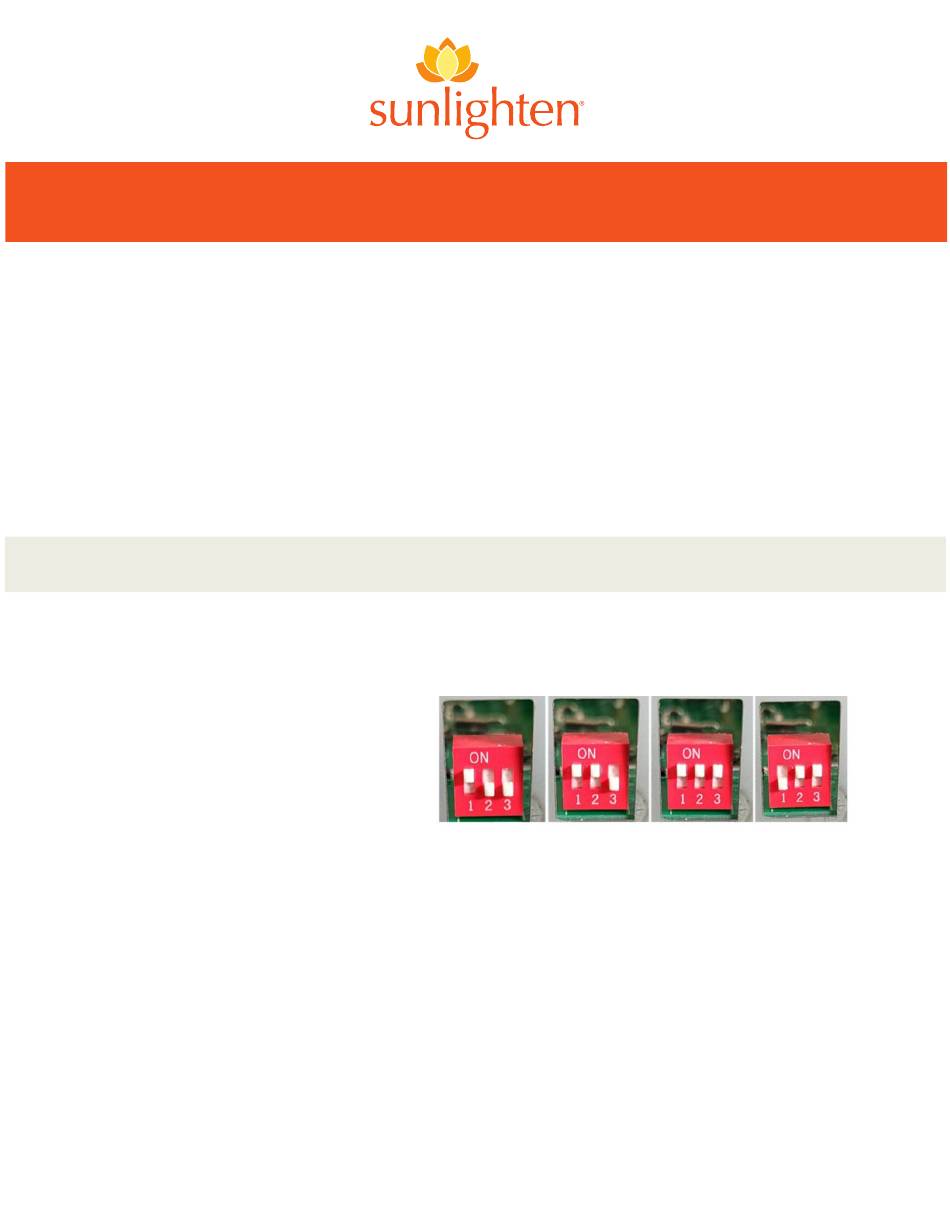

Ensure the dip switches are correctly oriented on the new box.

• Signature I: 1 up, 2 down, 3 down

• Signatue II: 1 up, 2 up, 3 down

• Signature III: 1 up, 2 up, 3 up

• Signature IV: 1 down, 2 up, 3 up

Step 2

Unplug the unit from the power source, or flip the breaker for the dedicated circuit to the

sauna.

Step 3

Your dust covers, the pieces of plywood board screwed down on the roof of the unit, cover

the power box. Elevate yourself with a stepladder or something similar so that you're looking

down into the roof of the sauna and unscrew the dust covers. Remove them, and you'll see

the roof divided into three segments, with your power box in the center.

Power Box Installation Guide

INSTALLATION

Need help?

Do you have a question about the Signature Power Box and is the answer not in the manual?

Page 1 Signature Power Box Installation Guide ® We’re very excited you received your replacement power box and are eager to get your unit back up to optimal operation! This power box is designed with customer installation in mind, and this guide will help you through that process while avoiding any potential pitfalls. Labeling The wiring connections of your power box are labeled with stickers to help you classify them.
Page 2 Signature Power Box Installation Guide Step 4 Once exposed, remove the phillips screws anchoring the power box to the ground. Two on the long front edge, and one on the right edge close to the back wall (as you are facing the back wall).
Page 3 Disconnect the black cord with the silver ring (G9) and the 4-pin connection (G7). Step 11 The Signature power box being replaced is now ready for extraction. Remove it from the central segment and insert your new replacement boxes. Step 12 Ensure you have proper placement of your power box prior to reconnecting.
Page 4 Back Wall Left Wall plugs into S3 plugs into S2 Front Wall BOX 2 plugs into S5 Connect SG15 to SG16 Right Wall plugs into S4 Connect SG15 to SG16 BOX 1 1. DC 12V 1. DC 12V output 1. AC power 1.
