SED2 Advanced Operator Panel AOP
Operating Instructions
CM1B5192en
05.11.2002
Siemens Building Technologies
HVAC Products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SED2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Siemens SED2

Summary of Contents for Siemens SED2

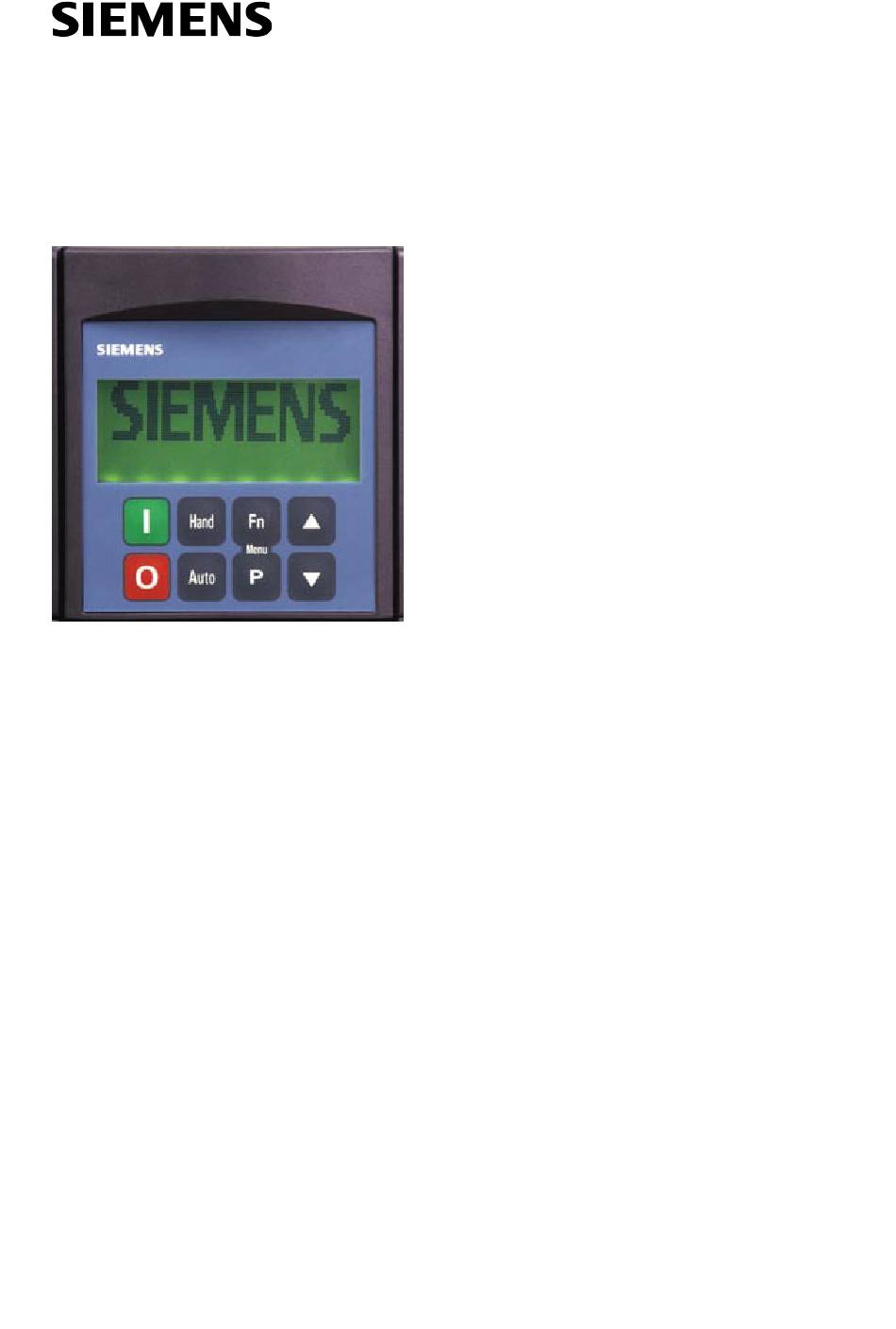

  • Page 1 SED2 Advanced Operator Panel AOP Operating Instructions Siemens Building Technologies CM1B5192en HVAC Products 05.11.2002...
  • Page 2 Siemens Building Technologies Ltd. HVAC Products Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 Fax +41 41-724 35 22 © 2001 Siemens Building Technologies Ltd. www.landisstaefa.com Subject to change 2/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products 05.11.2002...

  • Page 3: Table Of Contents

    Communications Failure ........................20 6.2.2 Displaying Drive Status........................20 6.2.3 Verifying Drive Type..........................20 Operating in Master Mode ........................20 6.3.1 Individual Control of SED2 VSD ......................20 3/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products Table of contents...
  • Page 4 Fault Indication/Fault Screen ......................28 9.1.1 Multiple Faults .............................28 Warning Indication/Warning Screen....................28 9.2.1 Multiple Warnings..........................28 Simultaneous Faults and Warnings ....................29 SED2 VSD Fault/Warning Record ......................29 Applicable Standards ..........................30 4/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products Table of contents...

  • Page 5: How To Use This Manual

    AOP Startup & Initialization, describes AOP power-on and initialization procedures and discusses using the AOP for single drive control or for control of a network of drives. AOP Applications, describes different applications of the AOP (controlling just a single SED2 drive or a network of up to 31 SED2 drives).

  • Page 6: Aop Overview

    Welcome Text not defined Communication User Defined Text Alarm / Warn / monitor Param. Set Names Techn. controller Set Time / Date AOP Reset TIMER 5192Z31en 6/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products AOP Overview 05.11.2002...

  • Page 7: Key Functions

    2.2 Key Functions Note: This symbol is used throughout this manual to indicate a special keypad function. To control an SED2 VSD with the AOP keys, the parameter P0700[1] must be set to 4 or 5 Key/ Functional Description Function Stops the motor.

  • Page 8: Aop Start-Up & Initialization

    Inhibit — When the AOP displays ‘Inhibit’, the SED2 VSD is in an inhibit mode of operation as reported by the USS message. This inhibit status clears when the SED2 VSD receives a valid start/stop command from the AOP.

  • Page 9: Language Selection

    Note: Once a language has been removed, it cannot be restored. Language selection is performed with the AOP online and connected to the SED2. After initial power-up or after a reset and after the AOP performs internal self-tests, the AOP prompts you to select a language.

  • Page 10: Quick Commissioning

    – MASTER – INTERNAL – SLAVE – PC mode UPREAD Allows you to read a parameter set from a SED2 VSD to the AOP. (UPLOAD) DOWNLOAD Allows you to write a parameter set from the AOP to a SED2 VSD. LANGUAGE Allows you to select a new language for the AOP display.
  • Page 11 P2014[1]=5000 (USS on BOP/AOP local link) to prevent unexpected drive opera- tion. In this mode, removal of the AOP from the SED2 VSD causes a timeout to occur in 5 seconds. Press to confirm the setting and the cursor returns to the parameter.

  • Page 12: Aop Applications

    4.1 Single Drive Control Using the AOP Per default, the AOP is configured to work with only one SED2 in LOCAL mode. In LOCAL mode, the AOP normally mounts directly onto the SED2. The RS-232 and RS-485 ports handle communications. Full operator control of the SED2 is available with access to all normal drive and AOP internal parameters.

  • Page 13: Network Setup (Pc Mode)

    Level P0003=3 (expert) and use P2011[0] USS Address to assign a unique address to each SED2 VSD. If using the AOP as the normal control means for the SED2 VSD, it is recommended that P2014[1] is set to 5000 (USS telegram off time for Serial Interface BOP Link). To do this, first set User Access Level P0003=3 (expert).

  • Page 14: Editing Parameters

    • P0003=3 Expert Parameters The access level defined for a SED2 VSD (not the AOP) determines the access to the various levels of pa- rameters. Extended level parameters permit access to all Standard level parameters as well as several others.

  • Page 15: Editing Indexed Parameters

    When you confirm this request, the AOP copies only the editable parameters to the selected parameter set; read-only parameters are accessed from the original parameter location. 15/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products Editing Parameters...

  • Page 16: Editing Aop-Stored Parameter Sets

    Default baud rate P8564 RS-232 Error count P8564 Enable Autobaud P8565 RS-485 Error count P8560 Battery level P8566 Null USS Responses P8561 Enable Backlight P8567 USS Timeouts 16/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products Editing Parameters 05.11.2002...

  • Page 17: Copying Parameter Sets

    The upload/upread procedure reads a parameter set from a SED2 VSD and stores that parameter set in the internal memory of the AOP. The AOP can read from a single SED2 VSD in LOCAL mode or from one specific SED2 VSD on a network of SED2 VSDs in MASTER mode.

  • Page 18: Wait Request

    5.6.2 Wait Request Certain tasks that the SED2 performs take longer than other tasks. If this occurs, a screen (such as the follow- ing) displays to inform you that the SED2 is completing a task. Upread To Param. Set 00 Please wait..

  • Page 19: Aop Operating Modes

    LOCAL mode is the default of the AOP on initial power-up or after a reset. In MASTER mode, the AOP can control up to 31 SED2 VSDs which connect in a multi-drop arrangement. An operator can control each SED2 VSD by accessing all normal SED2 and AOP •...

  • Page 20: Operating In Local Mode

    Press to acknowledge the warning condition. If the failure condition occurs again, the AOP assumes it is not connected to the SED2 VSD and returns to the main menu. If the AOP fails to establish initial communications with a SED2 VSD, any attempt to select OPERATE from the main menu results in an error warning screen.

  • Page 21: Broadcast Operation

    Indicates a non-SED2 VSD - parameter upload only. 6.3.2 Broadcast Operation The purpose of the broadcast function is to allow all connected SED2 VSDs to be controlled simultaneously. With the broadcast function selected it is possible to perform the following functions on all connected SED2 VSDs: Ø...

  • Page 22: Timer Function

    SED2 drives are under timed remote control and may start or stop unexpectedly. • To start or stop an attached SED2 VSD with the AOP timer function you must set the com- mand source parameters P0700[0]=4 and P0700[1]=4 (USS on BOP link or AOP).
  • Page 23 The cursor moves to the event view field. to select a blank event screen to set the required on or off time for the SED2 VSD, de- pending upon what timing event was previously set.

  • Page 24: Aop Setup & Configuration

    Press to confirm the selection. to adjust the contrast level. Press to confirm the selection and the AOP returns to the SETUP menu. 24/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products AOP Setup & Configuration 05.11.2002...

  • Page 25: Large Number Display

    8.1.3 Large Number Display You can configure the AOP for a large-number display of the SED2 VSD frequency. In the Large Number Display mode, you can temporarily switch to normal display mode (4 lines) with the keys . After an adjustable time delay, the display switches back to large characters.

  • Page 26: User Defined Text

    Repeat this step until the desired date (day-month-year) is set. Press and hold the key to accept the Day/Date settings and to return to the SETUP menu. 26/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products AOP Setup & Configuration 05.11.2002...

  • Page 27: Aop Reset

    If you want to reset only the AOP without deleting the parameter sets, press Simultaneously press at any time to display relevant help screens. 27/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products AOP Setup & Configuration 05.11.2002...

  • Page 28: Faults & Warnings

    9.1.1 Multiple Faults If a SED2 VSD or network of VSDs reports more than one fault condition, the AOP displays all fault messages by cycling through them until they are all acknowledged or cleared. See Fault Indication/Fault Screen above to acknowledge each fault message.

  • Page 29: Simultaneous Faults And Warnings

    9.3 Simultaneous Faults and Warnings If a SED2 VSD or network of VSDs reports a fault condition and a warning condition, the AOP displays all mes- sages by cycling through them. The AOP first displays a fault message and then a warning message separated by a 2-second interval.

  • Page 30: Applicable Standards

    Safety of machinery - Electrical equipment of machine European Machinery Directive The SED2 VSD series does not fall under the scope of the Machinery Directive. However, the products have been fully evaluated for compliance with the essential Health & Safety Requirements of the direc- tive when used in a typical machine application.
  • Page 31 31/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products 05.11.2002...
  • Page 32 Siemens Building Technologies Ltd. HVAC Products Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 Fax +41 41-724 35 22 © 2001 Siemens Building Technologies Ltd. www.landisstaefa.com Subject to change 32/32 Siemens Building Technologies SED2 Advanced Operator Panel AOP CM1B5192en HVAC Products 05.11.2002...
