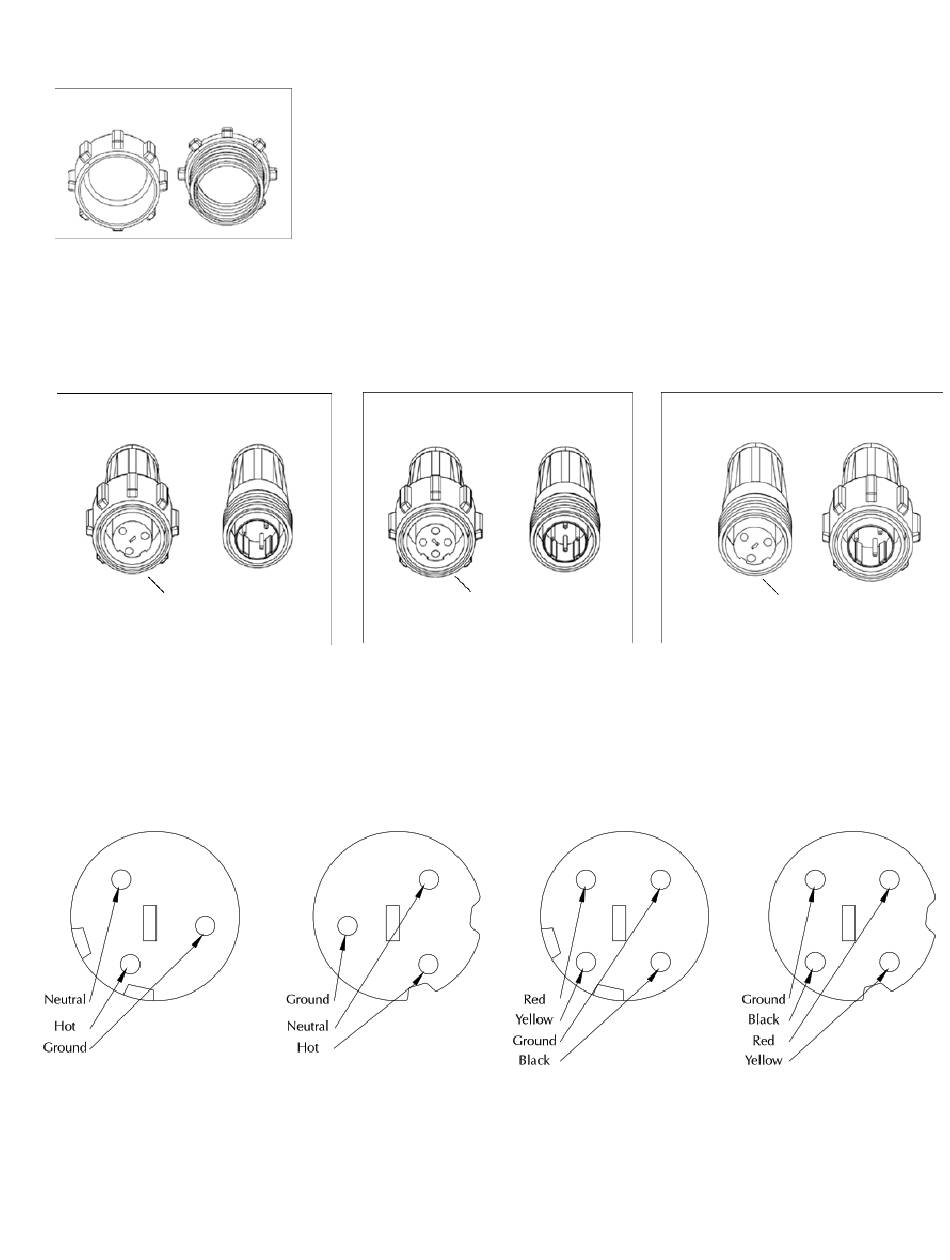

CONNECTOR CAPS
WARNING: Do not use grease on connectors. No tools are required for tightening.
3 WIRE PUMP CORD
MOTOR LEAD CONNECTOR
FROM THE FOUNTAIN
PUMP CORD CONNECTOR FROM
THE CONTROL PANEL
2 Wire with Ground
Motor Lead Connector
& Light Set Connector
6

CORD

CORD CAPS
Blue quick disconnect caps are used to protect the quick disconnects during handling and to keep them dry if
submerged while unconnected to mating quick disconnects.

CONNECTOR IDENTIFICATION

4 WIRE PUMP CORD
MOTOR LEAD CONNECTOR
FROM THE FOUNTAIN
PUMP CORD CONNECTOR FROM
THE CONTROL PANEL

WIRE IDENTIFICATION

2 Wire with Ground
Pump Cord Connector &
Light Cord Connector
Aqua Control, Inc. 60Hz / 50Hz Combo Series Instruction Manual
LIGHT CORD CONNECTOR FROM
THE CONTROL PANEL
3 Wire with Ground
Motor Lead Connector
LIGHT CORD
LIGHT SET CONNECTOR FROM
THE LIGHTS
3 Wire with Ground
Pump Cord Connector
