Aqua Control COMBO Series Instruction Manual page 3

1. Nozzle will be preinstalled on the unit.
2. For Maintenance or repair disassemble the nozzle in the following order.
a. Sky Geyser Nozzle
b. Threaded Adapter
c. Remove silicone from around the Inner Discharge Tube and Multi-nozzle Casting mating surface. Make sure to apply silicone when reassembling.
d. Multi-nozzle Casting – make sure to retain the O-ring that goes between the Multi-nozzle Casting and Head.
3. To put the Nozzle back together, use the above order in reverse.
4. When reassembling the nozzle, use petroleum jelly and apply it generously to the O-ring on the flange of the nozzle. Spread it evenly over the O-ring. Never
use the petroleum jelly on the electrical quick disconnects.

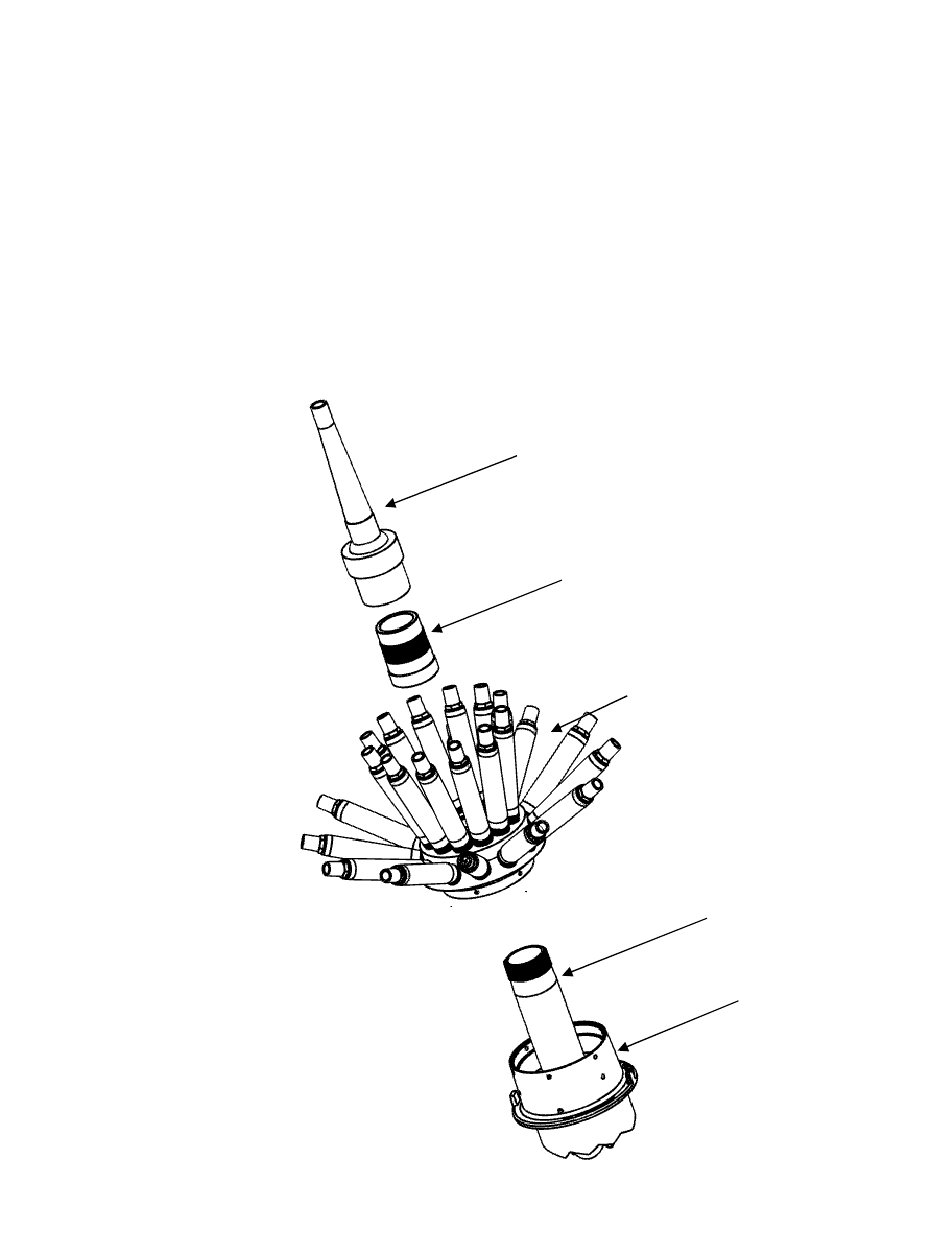

NOZZLE TYPE 1 – MULTIPLE NOZZLE CASTING/SPRAY CONE
Aqua Control, Inc. 60Hz / 50Hz Combo Series Instruction Manual
NOZZLES
Sky Geyser Nozzle
Threaded Adapter
Nozzle
Inner Discharge Pipe
* DO NOT REMOVE*
Head
3
