COMBO SERIES FRESHWATER & SALTWATER - HORIZONTAL
1. Open the light set box and remove the plastic bag
containing brackets and hardware. The package contains
(1) one straight float bracket, (2) two angled float
brackets, (6) six hex head bolts, (4) four lock washers,
and (4) four hex nuts for each light in the set.
2. Combo horizontals have two sets of floats, one on either
side of the nozzle. The floats must be turned so that the
(2) two eyebolts are at the outsides of the unit, away
from the nozzle. The lights need to be attached
symmetrically around the nozzle in the center, the same
number of lights on each upper float and in the same
position if possible. Attach one of the angled float
brackets to the top of the float at one of the threaded
inserts. Place a lock washer on a screw and put the screw
through the middle hole or the hole furthest from the
angle on the bracket.
If this is a saltwater unit, place a small rubber washer
from the float hardware package onto the bolt. Thread
the screw into the insert and tighten. Repeat this step
for each light in the set, placing the brackets
symmetrically around the nozzle.
3. Attach the remaining angled float brackets to the bot-
tom of the float directly below the brackets attached in
step 2, using the same hardware as in step 2. If you used
the middle hole on the brackets in step 2, use the same
hole in step 3.
4. Attach a flat float bracket to each set of angled brackets
using a 3/4" hex bolt, lock washer, and hex nut at each
angled bracket.
5. Take the light canisters with light brackets attached out of
the box. Stretch out the light leads to make sure they are
not tangled.
6. Loosen the (2) two hex head bolts that attach the light
bracket to the light and slide the bracket off the light.
7. Remove the (2) two hex head bolts, (2) two lock washers,
and (2) two hex nuts from the center of the light U-
bracket. Use this hardware to attach the light U-
bracket(s) to the flat float bracket(s). The slots in the
light bracket need to be pointed up towards the top of
the unit. The light U-bracket is shown attached at the
optimum height if the unit is floating at the
recommended depth. (See flotation pg. 11 for adding
weights.) If the unit is floating higher when running and
is not going to be weighted down, then the light bracket
will need to be attached lower. The lights must be 2"
below the surface of the water when the unit is running.
8. Reattach the light canisters to the light brackets by set-
ting the bolts back into the slots. Retighten the bolts.
This step must be done at the shoreline or after the unit is
floating. DO NOT transport the unit from the shop to the
installation with the lights attached.
9. If this is a saltwater unit, plug the remaining threaded
inserts on the float with the hard- ware in the float
hardware package. Place a lock washer then flat
washer then rubber washer onto the bolt and thread
into the insert. If weight pins are used, a rubber washer
must go between the flat washer and float insert.
10. The unit is ready to be floated after the cord
connection(s) have been made.

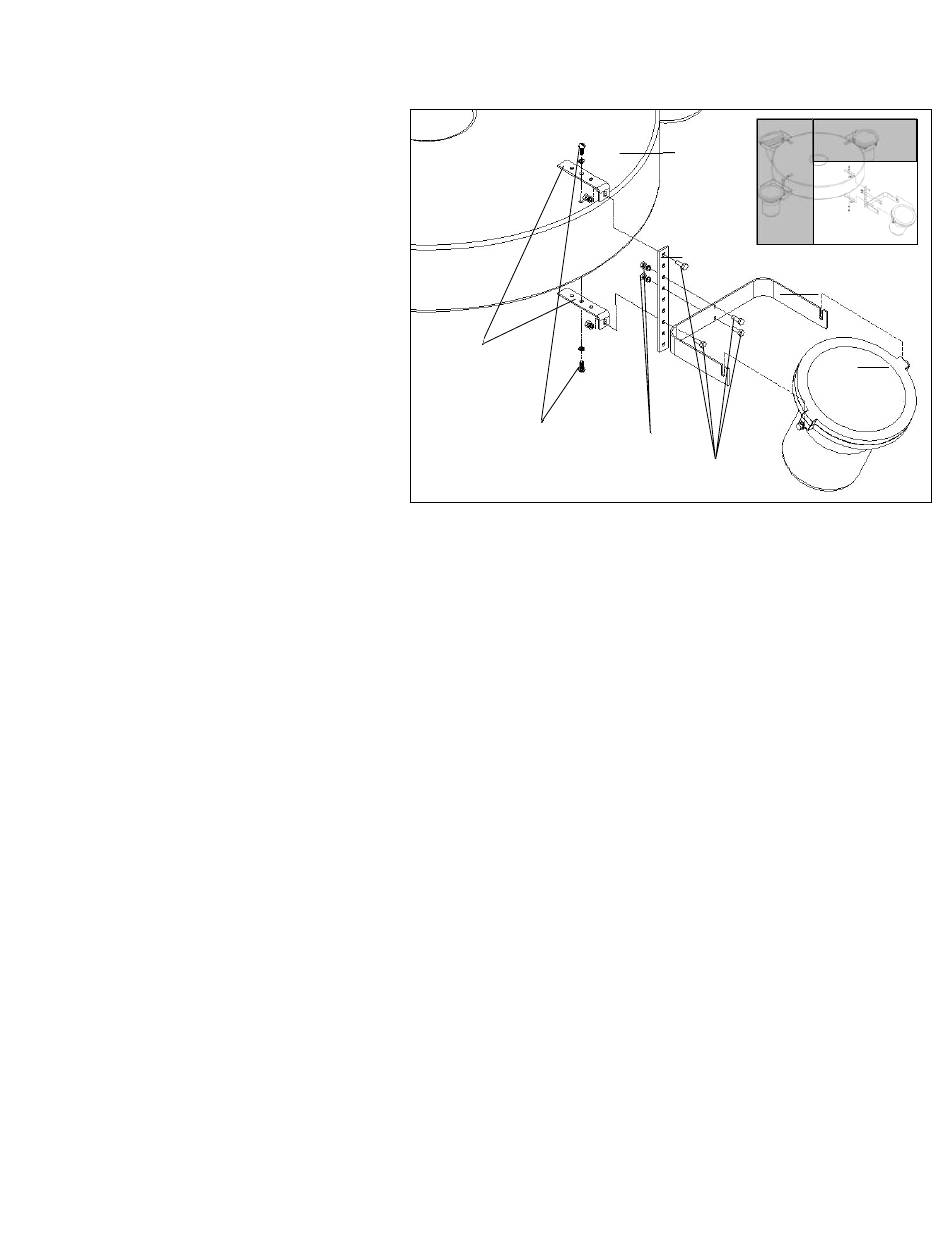

LIGHT SET ASSEMBLY
ANGLED
FLOAT
BRACKETS
ROUND HEAD
SCREWS
Aqua Control, Inc. 60Hz / 50Hz Combo Series Instruction Manual
COMBO SERIES FRESHWATER
FLOAT
FLAT
BRACKET
HEX NUTS
HEX BOLTS
U-BRACKET
LIGHT
5
