AFN Pacific SATNET on Intelsat 18
AFN7500HD Decoder Settings and Channel Guide
This guide contains the AFN7500HD decoder settings changes for the Pacific Satellite Network
(SATNET) service and new AFN Channel Guide. If you use a satellite dish that is three meters in

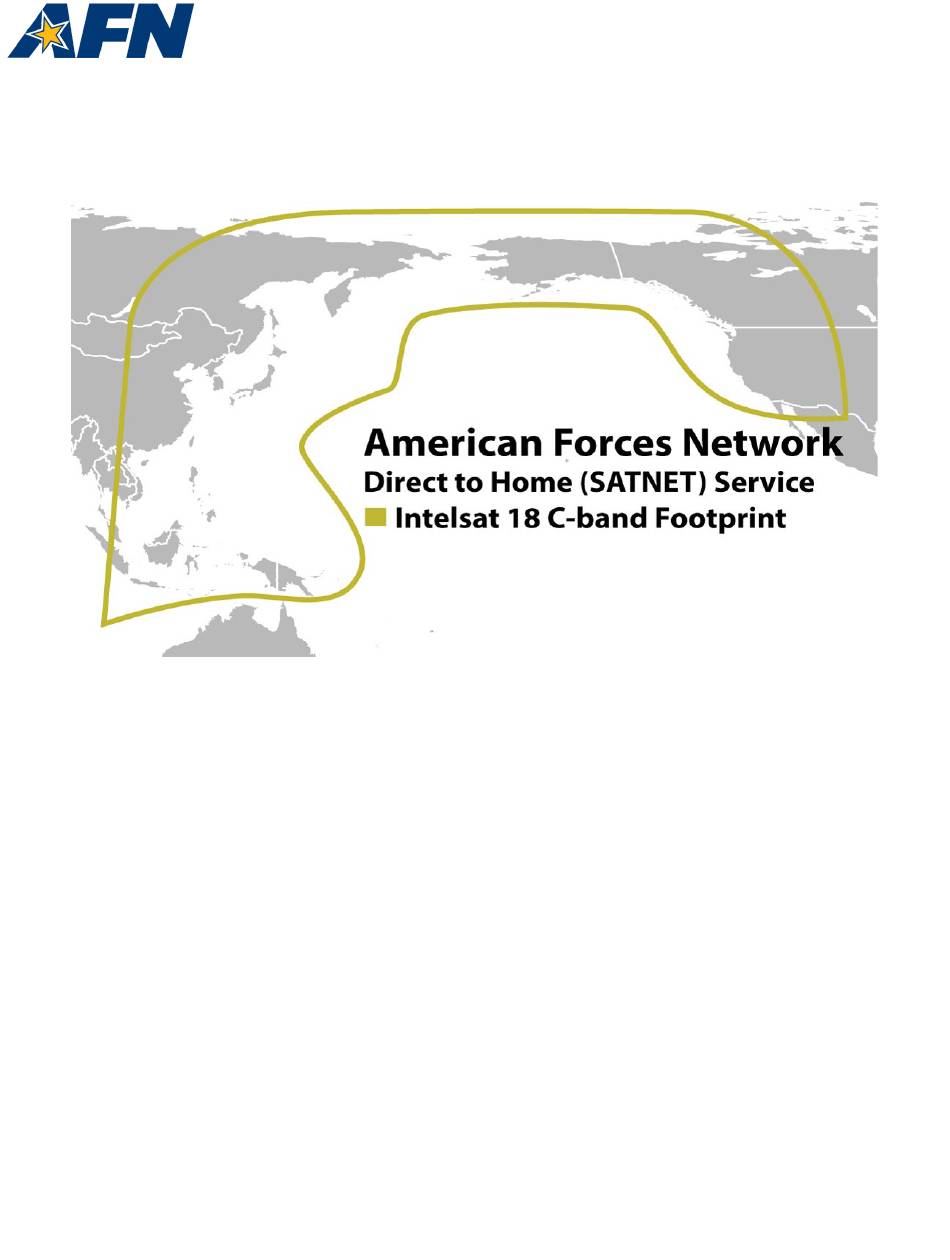

diameter, receive the eight-channel SATNET programming service and live within the area identified in
the map below, you need these decoder settings in order to get the AFN HD service. Refer to page two
for the decoder settings for AFN customers in the area below.
Important information about this satellite feed
Satellite Name: Intelsat 18
Satellite Orbital Location: 180°
Transponder: North Hemi (NHCL)
Band: C-band
Satellite Dish Low Noise Blocker (LNB) Technical Specifications
a. Left-hand circular feedhorn
b. 20° Kelvin Low Noise Blocker
Current as of 20231219
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AFN AFN7500HD
Summary of Contents for AFN AFN7500HD
- Page 1 SATNET programming service and live within the area identified in the map below, you need these decoder settings in order to get the AFN HD service. Refer to page two for the decoder settings for AFN customers in the area below.
- Page 2 To set up your decoder you must access the decoder settings “Satellite Setup” menu. Using the circular navigation wheel on your AFN7500HD remote control, access the “Main Menu” and scroll to the “Settings” menu, then select “Installation” as shown below.
- Page 3 The Configure Transponder page is where you enter the four settings you need for this satellite footprint. Use the circular navigation wheel on your AFN7500HD remote control to cycle through the settings, in the left column, for Modulation, Frequency, Polarization, and Symbol. Enter the settings as depicted below.
- Page 4 AFN Pacific SATNET on Intelsat 18 AFN7500HD Decoder Settings and Channel Guide The next screen will show a progress bar. When configuration is complete, the next screen will show that the decoder is acquiring the AFN services. Current as of 20231219...
- Page 5 You can either press Menu twice, or press Exit, and your TV will go to programming … and you’re done! Problems? Contact our AFN Broadcast Center Technologists at +1 (951) 413-2339; or email: sathelpdma@mail.mil. Current as of 20231219...
- Page 6 AFN Pacific SATNET on Intelsat 18 AFN7500HD Decoder Settings and Channel Guide This programming is available to AFN Direct to Home and AFN Satellite Network (SATNET) customers in the Pacific and East Asia. AFN Pacific Channel Guide TV Services Radio Services...
