AFN Atlantic Direct to Home on Eutelsat 9B

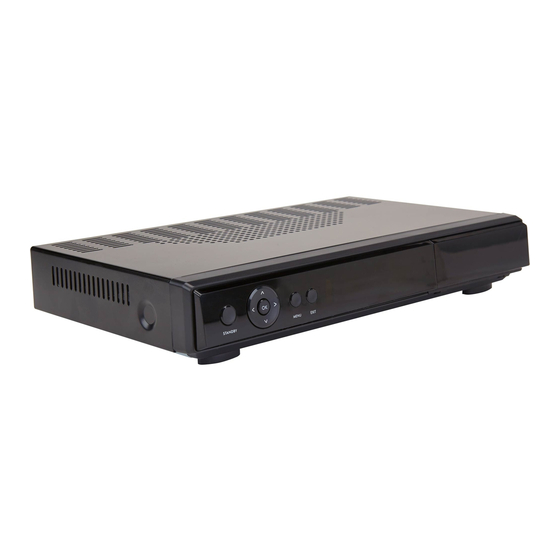

AFN7500HD Decoder Settings and Channel Guide
This guide contains the AFN7500HD decoder settings for the Atlantic Direct-to-Home (DTH) service and
the new AFN Channel Guide. If you use a satellite dish between 60 centimeters and 1.8 meters in
diameter, receive the eight-channel DTH programming service and live within the area identified in the

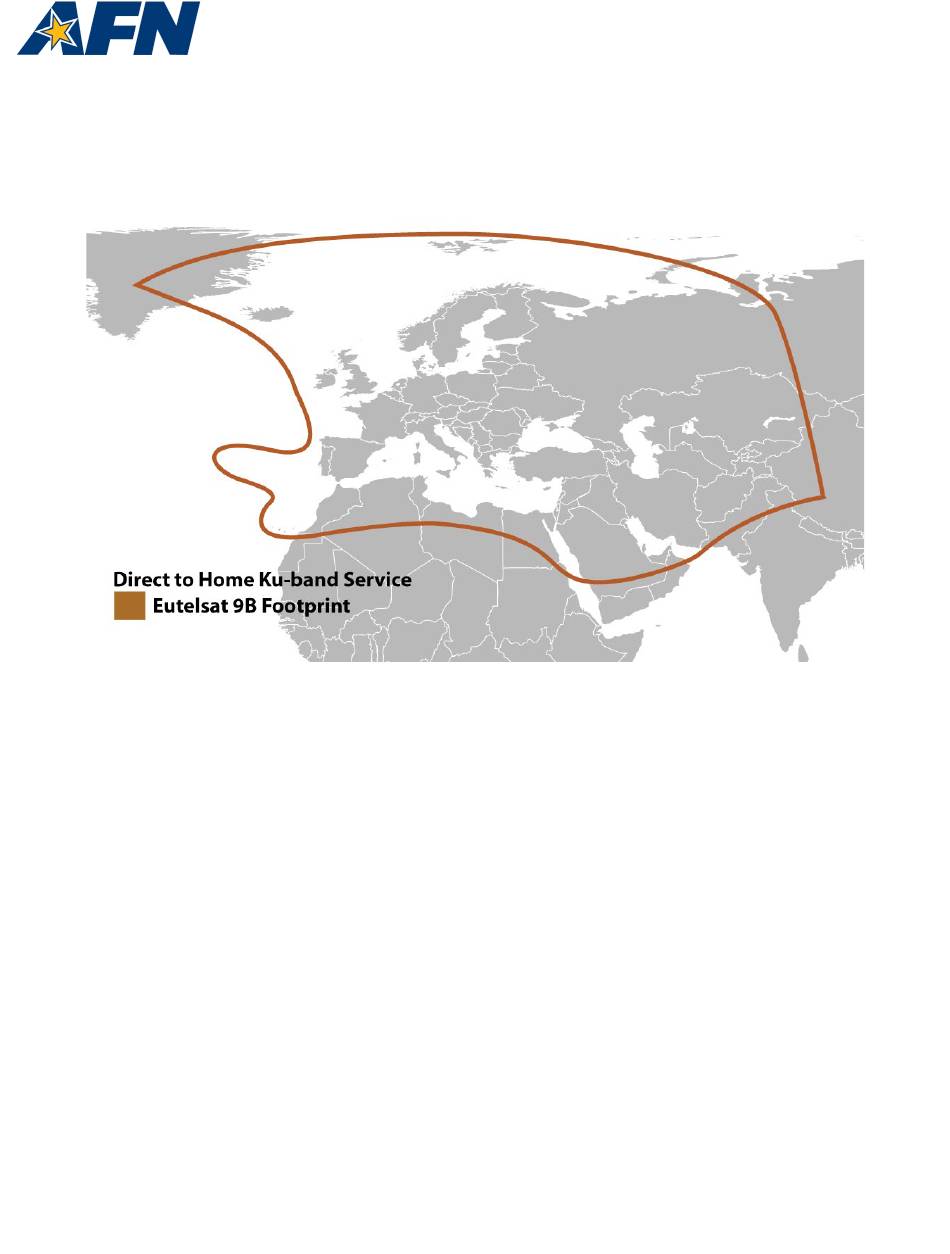

map below, you need these decoder settings in order to get the AFN HD service. Refer to page two for
the decoder settings for AFN customers in the area below.
Important information about this satellite feed
Satellite Name: Eutelsat 9B
Satellite Orbital Location: 9° East
Transponder: Wide Beam
Band: Ku-band
Satellite Dish Low Noise Blocker (LNB) Technical Specifications
a. Linear HDTV DVB-S2 Compliant LNBF with an operating range between 950-2150 MHz
b. LQ Freq of 9.75 and 10.6
c. 13-18 volt 22 khz LNB for a 60 centimeter to 1.8 meter satellite dish
AFN Atlantic DTH on Eutelsat 9B AFN7500HD Decoder Settings Guide (20200715)
