Atlantic Ocean Region Direct to Sailor on Intelsat 35e

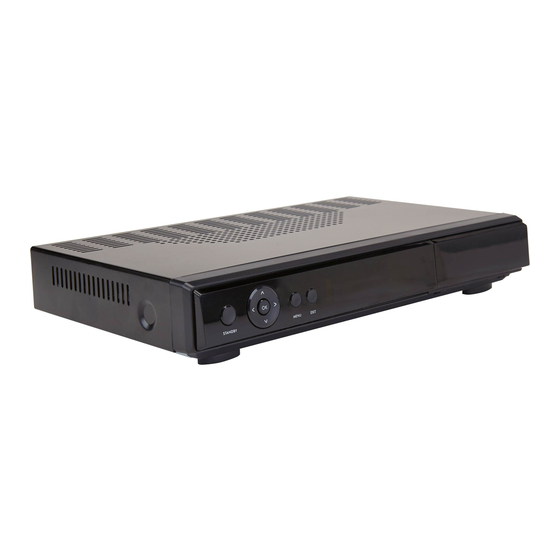

AFN7500HD Decoder Settings and Channel Guide
This guide contains the AFN7500HD decoder settings for the Atlantic Ocean Region Direct-to-Sailor

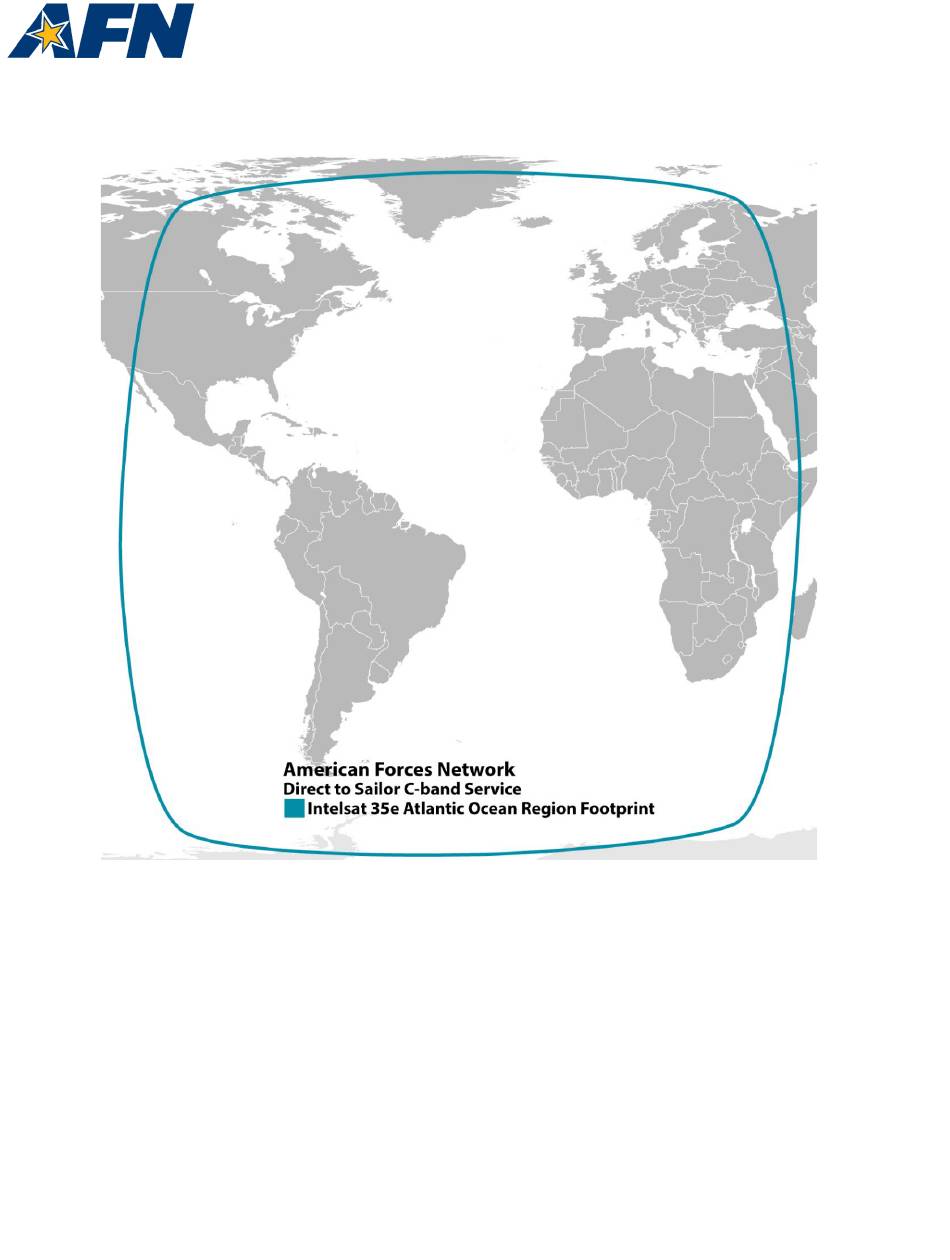

(DTS) Service and new AFN Channel Guide. If you live within the area identified in the map below you'll
use the decoder settings in this guide to receive the four-channel DTS programming service.
Important information about this satellite feed
Satellite Name: Intelsat 35e
Satellite Orbital Location: 34° West
Transponder: Global
Band: C-band
Satellite Dish and Low Noise Blocker (LNB) Technical Specifications
Dish size:
Feedhorn:
LNB:
LNB Operating Range:
Current as of 20210201
1.5 meter diameter parabolic satellite dish
Left-hand circular feedhorn
20° Kelvin Low Noise Blocker
3.40-4.20GHz
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFN7500HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AFN AFN7500HD

Summary of Contents for AFN AFN7500HD

  • Page 1 This guide contains the AFN7500HD decoder settings for the Atlantic Ocean Region Direct-to-Sailor (DTS) Service and new AFN Channel Guide. If you live within the area identified in the map below you’ll use the decoder settings in this guide to receive the four-channel DTS programming service.
  • Page 2 To set up your decoder you must access the decoder settings “Satellite Setup” menu. Using the circular navigation wheel on your AFN7500HD remote control, access the “Main Menu” and scroll to the “Settings” menu, then select “Installation” as shown below.
  • Page 3 The gray bar, displayed below, highlights the current selection. The left and right arrows on the gray bar allow you to scroll through the various satellites used by AFN to deliver programming worldwide. You need to select the DTS ATL IS35E satellite to load the settings you need. Once the satellite is selected.
  • Page 4 The Configure Transponder page is where you enter the four settings you need for this satellite footprint. Use the circular navigation wheel on your AFN7500HD remote control to cycle through the settings, in the left column, for Modulation, Frequency, Polarization, and Symbol. Enter the settings as depicted below.
  • Page 5 Atlantic Ocean Region Direct to Sailor on Intelsat 35e AFN7500HD Decoder Settings and Channel Guide The next screen will show a progress bar. When configuration is complete, the next screen will show that the decoder is acquiring the AFN services. Current as of 20210201...
  • Page 6 You can either press Menu twice, or press Exit, and your TV will go to programming … and you’re done! Problems? Contact our AFN Broadcast Center Technologists at DSN: (312) 348-1339; commercial: +1 (951) 413-2339; or email: sathelpdma@mail.mil.
  • Page 7 AFN Music Service AFN Music Service AFN music service DTS AFN|prime programming is a hybrid of shows from the DTH AFN|prime and AFN|spectrum channels. Four different AFN music services rotate on this channel daily. All times GMT. 0700-1000 ‘Today’s Best Hits’...
