PROSPERO
PRP‑UC15L‑IP
en
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROSPERO PRP-UC15L-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch PROSPERO PRP-UC15L-IP

Summary of Contents for Bosch PROSPERO PRP-UC15L-IP

  • Page 1 PROSPERO PRP‑UC15L‑IP User manual...

  • Page 3: Table Of Contents

    PROSPERO Table of contents | en Table of contents Safety Short information Equipment overview Accessories Installation Delivery conditions Installation method Wiring Operation Maintenance Technical data Dimensions Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...

  • Page 4: Safety

    13. Use only the accessories/fittings specified by the manufacturer. Installation of any equipment should follow the manufacturer's instructions and should utilize the manufacturer's recommended mounting accessories. 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 5 Do not allow any liquid to spill into the unit. Caution! To avoid electric shock, do not open the housing. Consult only qualified service personnel regarding maintenance matters. Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 6 This is a Class A product and operation of this device may cause radio interference in a residential environment. 24. Use only at altitudes up to 2000 meters. Use only in non-tropical climates. 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...

  • Page 7: Short Information

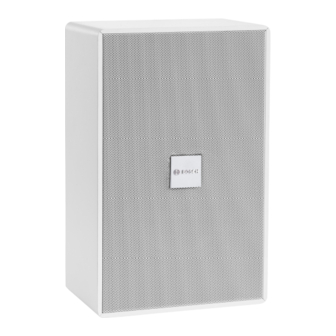

    The rear panel provides local audio input and high- priority exam mode input ports, and includes two sets of mounting brackets for optional horizontal or vertical wall mounting. The Bosch logo on the front panel can be rotated to match different mounting orientations.

  • Page 8: Equipment Overview

    100 V audio input Alternate 100 V connector constant voltage broadcast audio input Power supply Connect 24 V DC/2 A interface power adapter 100M Network interface Connecting to a network switch 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 9 Fault warning Blinking yellow: indicator unauthorized Solid yellow: device failure Loudspeaker Suitable for interface connecting PRP- UC15L loudspeaker Mounting bracket Bracket for wall mounting, horizontal or vertical mounting available Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...

  • Page 10: Accessories

    | Accessories PROSPERO Accessories Quantity Components Cabinet loudspeaker, 15 W, IP Safety and user information leaflet Terminal block (set) 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...

  • Page 11: Installation

    Rotate the front panel logo to the correct orientation. Notice! Expansion bolts and screws for installation should be prepared by the installer 62.5 62.5 2-⌀6 2-⌀6 Figure 5.1: Selection and positioning of the mounting method Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 12 | Installation PROSPERO Figure 5.2: Organize speaker wiring Figure 5.3: Hanging to the wall 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 13 PROSPERO Installation | en Figure 5.4: Rotating logo Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...

  • Page 14: Wiring

    | Wiring PROSPERO Wiring Figure 6.1: Power supply connection 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 15 PROSPERO Wiring | en Figure 6.2: Network connection Figure 6.3: 100 V audio input connection Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 16 | Wiring PROSPERO Figure 6.4: Local analog audio input 1 connection 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 17 PROSPERO Wiring | en Figure 6.5: Local analog audio input 2 connection Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 18 | Wiring PROSPERO Figure 6.6: Loudspeaker connection The PRP-UC15L-IP speaker can be connected to one PRP-UC15L 15 W loudspeaker. 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...

  • Page 19: Operation

    Press and hold the device reset button for 5 seconds, then release the device to reboot and return to the factory default configuration. Icon Indicator and control Description Device reset button Reset factory default settings Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...

  • Page 20: Maintenance

    | Maintenance PROSPERO Maintenance IP speakers do not require any special maintenance. To maintain cleanliness and a neat appearance, use a soft cloth to clean the speaker cabinet. 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...

  • Page 21: Technical Data

    1x 100 V high priority input 2x Line level input Interface 2x 2-pin Phoenix connector 2x 3-pin Phoenix connector Maximum input level 6 dBu Input impedance >7 kΩ Mechanical Speaker Material Wooden case, metal grille Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 22 RAL 9017 Traffic black Mounting Wall-mounted, optional horizontal or vertical orientation Environmental Operating temperature (°C) -5°C — 45°C Storage and transportation temperature (°C) -40°C — 70 C Operating relative humidity, non-condensing <95% (%%) 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...

  • Page 23: Dimensions

    PROSPERO Dimensions | en Dimensions Figure 10.1: Dimensions in mm Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 24 | Dimensions PROSPERO 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 25 PROSPERO Dimensions | Bosch Security Systems B.V. 2024-10 | V1.00 | F.01U.429.439 User manual...
  • Page 26 | Dimensions PROSPERO 2024-10 | V1.00 | F.01U.429.439 Bosch Security Systems B.V. User manual...
  • Page 28 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202410241207...
