TD-W8961ND
1) Assign VLAN PVID for each Interface

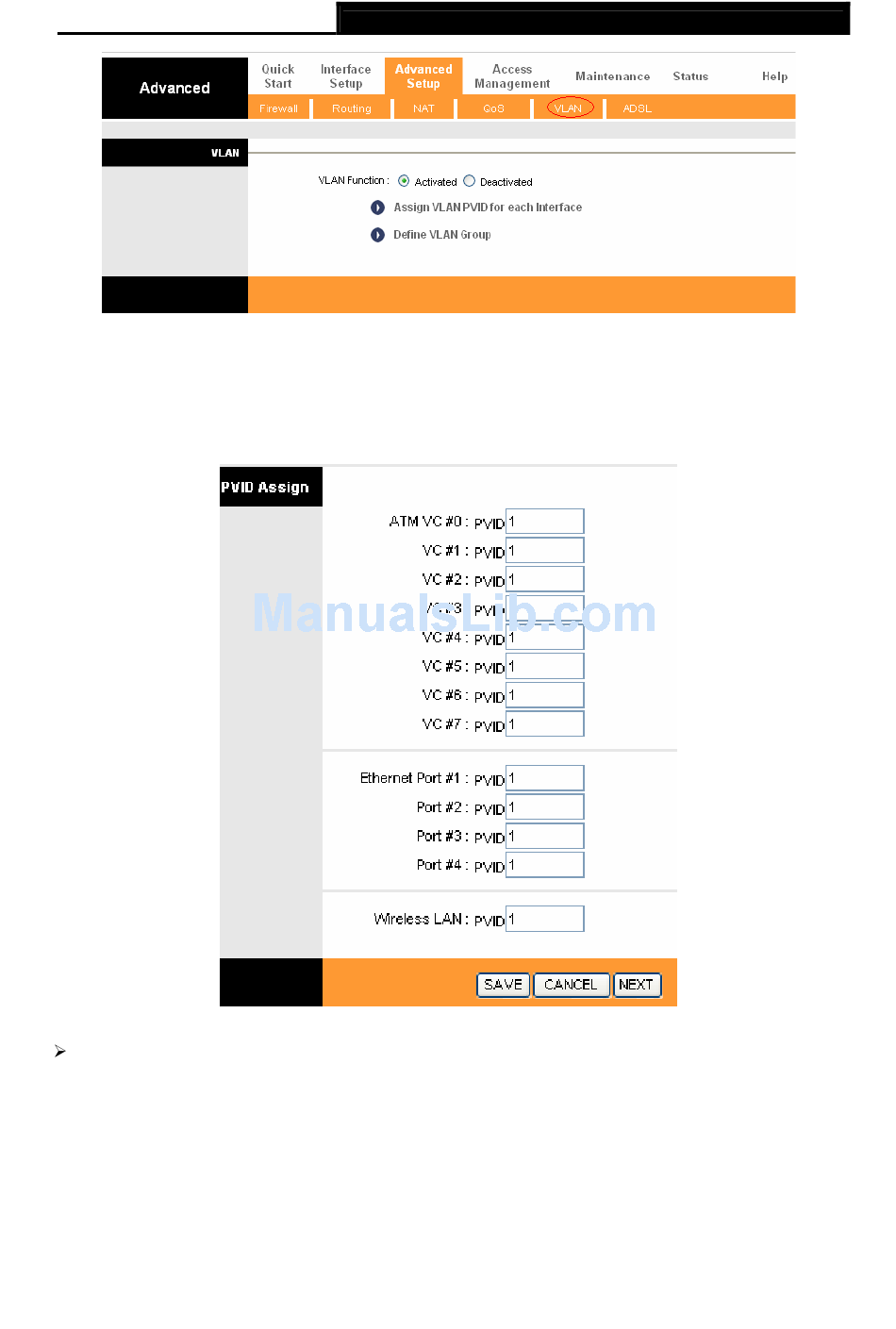

Click Assign VLAN PVID for each Interface in Figure 4-33, you can assign the PVID for each
interface in the next screen (shown in Figure 4-34).
PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to
untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
2) Define VLAN Group
Click Define VLAN Group in Figure 4-33, you can define VLAN groups in the next screen (shown
in Figure 4-35).
300Mbps Wireless N ADSL2+ Modem Router User Guide
Figure 4-33
Figure 4-34
45
