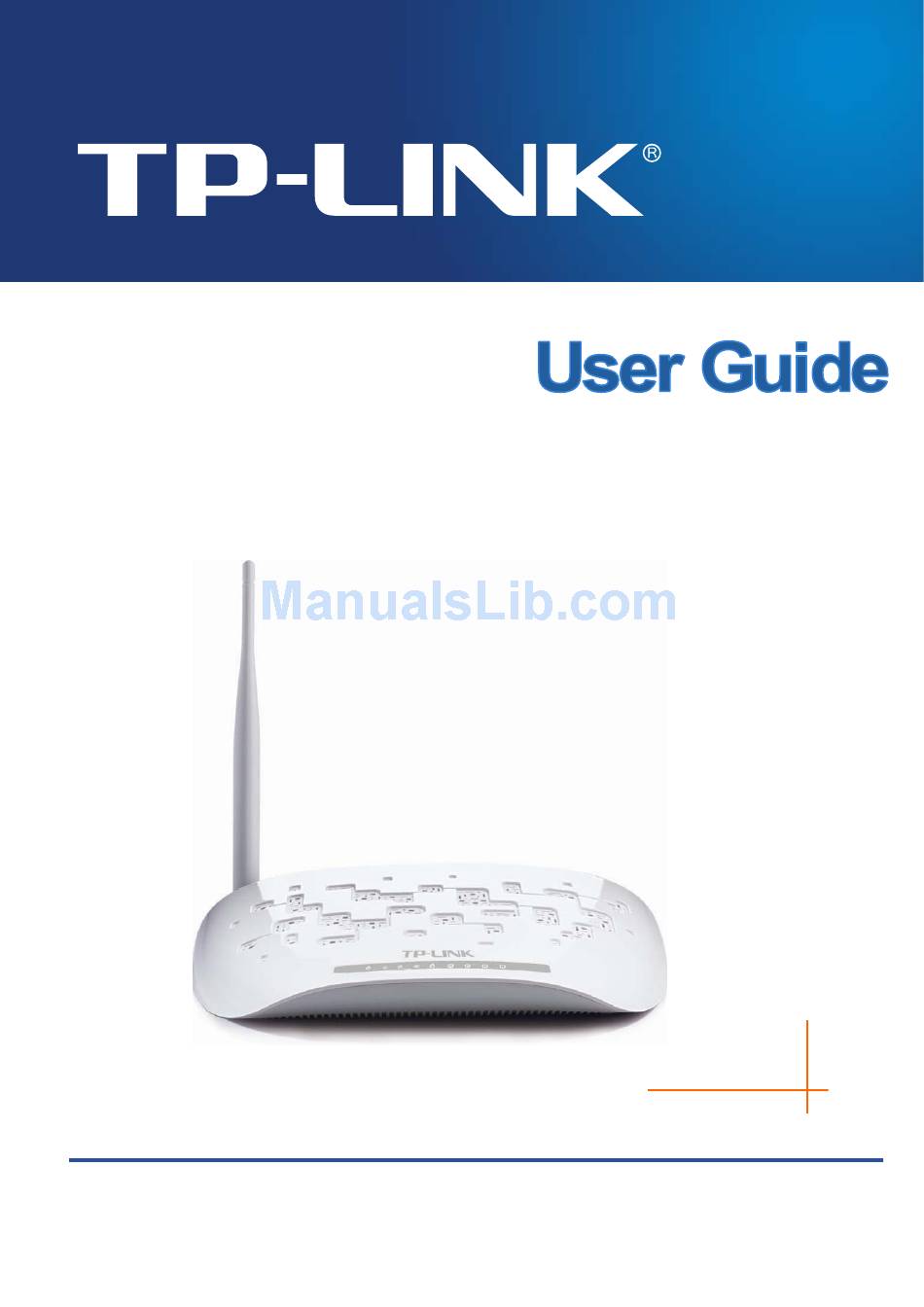

Page 1
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) Rev: 3.0.1 1910010747...
Page 2
Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Canadian Compliance Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired...
TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: 150Mbps Wireless N ADSL2+ Modem Router(Annex B) Model No.: TD-W8951NB Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...
Package Contents The following contents should be found in your package: One TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) One Power Adapter for TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex Quick Installation Guide One RJ45 cable Two RJ11 cables...
The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet or IEEE 802.11n/ IEEE 802.11g/ IEEE 802.11b wireless network. The TD-W8951NB connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address.
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List). 1.3 Conventions The modem router or device mentioned in this User Guide stands for TD-W8951NB without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Chapter 2. Hardware Installation 2.1 The Front Panel Figure 2-1 The LEDs locate on the front panel. They indicate the device’s working status. For details, please LED Explanation: Name Status Indication The modem router is powered on.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Note: 1. If the ADSL LED is off, please check your Internet connection first. Refer to 2.4 Connecting the Modem Router for more information about how to make Internet connection correctly. If you have already made a right connection, please contact your ISP to make sure if your Internet service is available now.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Method one: With the modem router powered on, use a pin to press and hold the Reset button for at least 5 seconds. And the modem router will reboot to its factory default settings.
Method one: Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of TD-W8951NB, and insert the other end into the wall socket. Method two:You can use a separate splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time.
Page 16
Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of TD-W8951NB. Connect the other end to the MODEM port of the external splitter. Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s Ethernet port or a regular hub/switch port, and the other end to the LAN port on the TD-W8951NB.
Chapter 3. Quick Installation Guide 3.1 Configure PC After you directly connect your PC to the TD-W8951NB or connect your adapter to a Hub/Switch which has connected to the modem router, you need to configure your PC’s IP address. Follow the steps below to configure it.
Page 18
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 3-2 Step 3: Select General tab, highlight Internet Protocol (TCP/IP), and then click the Properties button. Figure 3-3...
Page 19
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Step 4: Configure the IP address as Figure 3-4 shows. After that, click OK. Figure 3-4 Note: You can configure the PC to get an IP address automatically, select “Obtain an IP address automatically”...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 3-5 If the result displayed is similar to the screen shown below, it means that your PC has not connected to the modem router. Figure 3-6 You can check it follow the steps below:...
Page 21
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 3-7 Step 1: Select the Quick Start tab, then click RUN WIZARD, and you will see the next screen. Click the NEXT button. Figure 3-8 Step 2: Configure the time for the modem router, and then click the NEXT button.
Page 22
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 3-10 Step 4: Configure the following options provided by your ISP: Username, Password, VPI, VCI and Connection Type. Then click NEXT. Figure 3-11 Step 5: Configure the rules for the WLAN, and click NEXT.
Page 23
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 3-12 Note: If the Access Point is activated, the wireless function will be available even without the external antenna because of an additional printed antenna. To adopt the wireless security protection measures, please refer to 4.3.3...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Chapter 4. Software Configuration This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-2 Note: Click the other submenus System Log or Statistics in Figure 4-2, and you will be able to view the system log and traffic statistics about the modem router.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-3 The modem router can keep logs of all traffic. You can query the logs to find what happened to the Router. Click the CLEAR LOG button to clear the logs.
Page 27
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-4 Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network traffic over different ports. Select Ethernet, and you will see the statistics table as below.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Select ADSL, and you will see the statistics table as below. Statistics Table: Transmit total PDUs The total PDUs transmitted over the ADSL port. Transmit The total errors occurred over the ADSL port when data...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide 4.3 Interface Setup Choose “Interface Setup”, you can see the next submenus: Internet, LAN and Wireless. Figure 4-5 Click any of them, and you will be able to configure the corresponding function.
Page 30
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-6 ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
Page 31
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide • VPI: Identifies the virtual path between endpoints in an ATM network. The valid range is from 0 to 255. Please input the value provided by your ISP. • VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols).
Page 32
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Default Route: If enable this function, the current PVC will be considered as the default gateway to internet from this device. TCP MTU Option: Enter the TCP MTU as your desire.
Page 33
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Note: Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x), such as 192.168.1.100. The modem router will not accept the IP address if it is not in this format.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Password: Enter your password for your PPPoA/PPPoE connection. Encapsulation: For both PPPoA/PPPoE connection, you need to specify the type of Multiplexing, either LLC or VC Mux. Bridge Interface: Activate the option, and the modem router can also work in Bridge mode.
Page 35
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-11 Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is private to your internal network and cannot be seen on the Internet.
Page 36
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide means the ADSL modem router will only send but will not accept RIP packet. • Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide be able to obtain IP address automatically although the DHCP function is enabled. All the ports are checked by default. • DNS Relay: If you want to disable this feature, you just need to set both Primary and secondary DNS IP to 0.0.0.0.
Page 38
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-14 Access point Settings: These are the settings of the access point. You can configure the rules to allow wireless-equipped computers and other devices to communicate with a wireless...
Page 39
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide • Access point: Select Activated to allow wireless station to associate with the access point. • Channel: Select your region and the channel you want to use from the drop-down List of Channel.
Page 40
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide There are two options, “20 MHz” and “20/40 MHz”. If bigger bandwidth is selected, device could transmit and receive data with higher speed. • Extension Channel: If “20/40 MHz” is selected, this option will be displayed.
Page 41
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-16 WEP-128Bits To configure WEP-128Bits settings, select the WEP-128Bits option from the drop-down list. The menu will change to offer the appropriate settings. 128-bit is stronger than 64-bit. Figure 4-17 WPA-PSK To configure WPA-PSK settings, select the WPA-PSK option from the drop-down list.
Page 42
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide • TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for each packet transmitted. • AES (Advanced Encryption Standard) - A security method that uses symmetric 128-bit block data encryption.
Page 43
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide establish a wireless connection between wireless adapter and modem router using either Push Button Configuration (PBC) method or PIN method, please select the one you want. • WPS progress: Show the current WPS progress.
Page 44
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide The WPS Configuration Screen of Wireless Adapter Method Two: Step 1: Press the WPS button on the front panel of the modem router or click Start WPS button in Figure 4-21.
Page 45
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide The WPS Configuration Screen of Wireless Adapter Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS configuration. The WPS Configuration Screen of Wireless Adapter...
Page 46
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-22 Method One: Enter the PIN into my modem router Step 1: For the configuration of the wireless adapter, please choose “Enter a PIN into my access point or a registrar” in the configuration utility of the WPS, and get the PIN code on the screen as below, then click Next.
Page 47
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-23 Method Two: Enter the PIN from my modem router Step 1: Get the Current PIN code of the modem router from AP self PIN code in Figure 4-23 (each modem router has its unique PIN code.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide is the same for all stations in your wireless network. Type the desired SSID in the space provided. • Authentication Type: Select an authentication type from the drop-down list, which allows you to configure security features of the wireless LAN interface.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-25 Firewall: Select this option can automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack. SPI: If you enable SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Destination IP Address: This parameter specifies the IP network address of the final destination. IP Subnet Mask: Enter the subnet mask for this destination. Gateway IP Address: Enter the IP address of the gateway. The gateway is an immediate neighbor of your ADSL modem router that will forward the packet to the destination.
Page 51
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Note: For VCs with single IP, they share the same DMZ and Virtual servers; for VCs with multiple IPs, each VC can set DMZ and Virtual servers. Furthermore, for VCs with multiple IPs, they can define the Address Mapping rules;...
Page 52
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-30 Rule Index: The Virtual server rule index for this VC. You can specify 10 rules in maximum. All the VCs with single IP will use the same Virtual Server rules.
Page 53
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Click the BACK button to return to the previous screen. Click the CANCEL button to cancel the configuration which is made just now. 4.4.3.3 IP Address Mapping Select Multiple for numbers of IPs in Figure 4-28, and choose “Advanced Setup→NAT→IP Address Mapping(for Multiple IP Service)”.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Step 2: Select the Rule index for the rule as shown in Figure 4-31. Step 3: Select the rule type you want from the drop-down list. Step 4: Enter the local and public IP addresses in the corresponding fields.
Page 55
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-32 QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and DiffServ). Summary: Click the button to view the configurations of QoS. Rule: Configure the rules for QoS. If the traffic complies with the rule, then the modem router will take the corresponding action to deal with it.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide • Physical Ports: Select the port whose traffic flow are controlled by the rule. • Destination MAC & IP & Mask & Port Range: Enter the IP information about the Destination host for the rule.
Page 57
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they can communicate as if they were attached to the same LAN, when in fact they are located on a number of different LAN segments.
Page 58
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-34 PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to untagged frames or priority tagged frames (frames with null (0) VID) received on this port.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-35 VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum. VLAN ID: This indicates the VLAN group. ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-36 ADSL Mode: Select the ADSL operation mode which your ADSL connection uses. ADSL Type: Select the ADSL operation type which your ADSL connection uses. 4.5 Access Management Choose “Access Management”, you can see the next submenus: Figure 4-37 Click any of them, and you will be able to configure the corresponding function.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-38 ACL: If Activated, the IP addresses which are contained in the Access Control List can access to the modem router. If Deactivated, all IP addresses can access to the modem router.
Page 62
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-39 Filter Type Selection: Select the filter type for the configuration below. IP/MAC Filter Set Index: Select the Set index for the IP Filter entry. This index can match with six IP / MAC Filter Rule Indexes.
Page 63
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Direction: Select the direction for this IP Filter rule. There are three filtering directions: Both, Incoming, Outgoing. Note: Incoming means that IP traffic which is coming into the modem router, and the Outgoing means that IP traffic which is going out the modem router.
Page 64
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Select the “IP” as the Rule Type on the Filter screen, then you can configure the specific rule for the example. Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then select the Interface “PVC0”, and select the Direction “Both”...
Page 65
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide After you complete the IP filter rules for the example, the Filter list will show as follows. You can enter the IP / MAC Filter Set Index to view the information about the rule.
Page 66
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Rule Type: Select MAC for the MAC Filter rule. Active: Select “Yes” to make the rule to take effect. MAC Address: Enter the MAC address for the rule. Rule Unmatched: If the current rule can not match, and you select Forward, the modem router will skip the rule and transmit directly.
Page 67
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Step 5: Go to Step 2 to configure the next rule: Block the PC with MAC address 00-0A-EB-00-07-5F to access the Internet. Note: After you complete the MAC filter rules for the example, the Filter list will show as follows. You can enter the IP / MAC Filter Set Index to view the information about the rule.
Page 68
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide 4.5.2.4 URL Select Application Filter as the Filter type (shown in Figure 4-42), and then you can configure the filter rules based on URL. Figure 4-42 Filter Type Selection: Select the URL Filter for the next configuration.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Step 2: Select the Index for the rule, and then enter the website in the URL field. Step 3: Finally, Select Yes to active the rule, and then click the SAVE to save the entry.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-44 UPnP: Activate or Deactivate the UPnP function. Only when the function is activated, can the UPnP take effect. Auto-Configure: If you activate the function, then the UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide 4.5.6 CWMP Choose “Access Management→CWMP”, you can configure the CWMP function in the screen (shown in Figure 4-46). The modem router offers CWMP feature. The function supports TR-069 protocol which collects information, diagnoses the devices and configures the devices automatically via ACS (Auto-Configuration Server).
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide 4.6 Maintenance Choose “Maintenance”, you can see the next submenus: Figure 4-47 Click any of them, and you will be able to configure the corresponding function. 4.6.1 Administration Choose “Maintenance→Administration”, you can set new password for admin in the screen (shown in Figure 4-48).
Page 73
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide dates. NTP Server automatically Select NTP Server automatically as the Synchronize time, you only need to set the time zone. Figure 4-49 Note: The ADSL modem router built-in some NTP Servers, when the modem router connects to the Internet, the modem router will get the system time automatically from the NTP Server.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-50 Manually Select Manually as the Synchronize time, you need to set the date and time corresponding to the current time. Figure 4-51 4.6.3 Firmware Choose “Maintenance→Firmware”, you can upgrade the firmware of the modem router in the screen (shown in Figure 4-52).
Page 75
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-52 To upgrade the modem router's firmware, follow these instructions below: Step 1: Type the path and file name of the update file into the “New Firmware Location” field. Or click the Browse button to locate the update file.
Page 76
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-53 Step 2: Save the file as the appointed file (shown in Figure 4-54). TD-W8951NB Figure 4-54 To restore the modem router’s settings: Step 1: Click the Browse button to locate the update file for the device, or enter the exact path in “New Romfile Location”...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide 4.6.4 SysRestart Choose “Maintenance→SysRestart”, you can select to restart the device with current settings or restore to factory default settings in the screen (shown in Figure 4-55). Figure 4-55 4.6.5 Diagnostics Choose “Maintenance→Diagnostics”, you can view the test results for the connectivity of the...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-56 4.7 Help Choose “Help”, you can view the help information for configuration of any function.
Page 79
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Figure 4-57 Note: Click the tab, and you will be able to get the corresponding information.
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Appendix A: Specifications General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE Standards and Protocols 802.3u, TCP/IP, PPPoA, PPPoE, SNTP, HTTP, DHCP, ICMP, NAT, ITU Annex B Safety &...
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Appendix B: Troubleshooting T1. How do I restore my modem router’s configuration to its factory default settings? With the modem router powered on, press and hold the RESET button on the rear panel for 8 to 10 seconds before releasing it.
Page 82
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Click Network Connections Right-click Local Area Connection Click Properties Double-click Internet Protocol (TCP/IP)
Page 83
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK Click OK...
Page 84
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide For Windows Vista OS Go to Start > Settings >Control Panel, and then you will see the following page. Click View network status and tasks Click View status Click Properties...
Page 85
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
Page 86
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide For Windows 7 OS Go to Start > Settings > Control Panel, and then you will see the following page. Click View network status and tasks Click Change adapter settings...
Page 87
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide Double-click Internet Protocol Version 4 (TCP/IPv4) Select Obtain an IP address automatically Select Obtain DNS server address automatically Click OK...
Page 88
TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router(Annex B) User Guide 2) Configure your IE browser Open your IE browser, click Tools tab and you will see the following screen. Click Internet Options Select Never dial a connection Click OK Now, try to log on to the Web-based configuration page again after the above settings have been configured.
Page 89
Login. 5) Please feel free to contact our Technical Support if the problem still exists. Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support...
