Quick Installation Guide

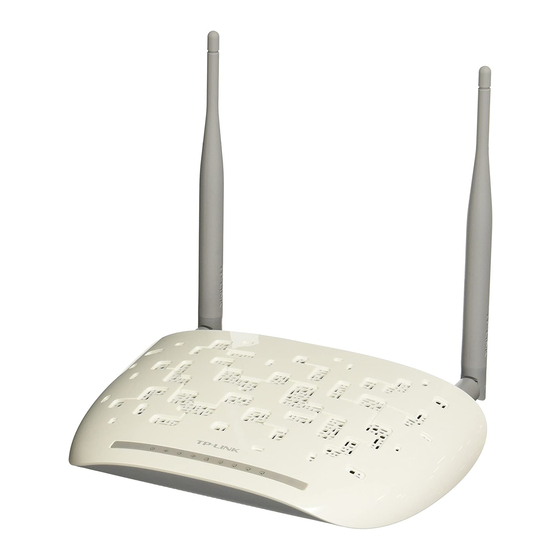

300Mbps Wireless N ADSL2+ Modem Router
TD-W8961ND / TD-W8961NB / TD-W8961N
* TD-W8961ND is used for demonstration in this QIG.

Connecting the Hardware

If you don't need the phone service, just skip step 1 and directly connect the
modem router to the phone jack with a phone cable, then follow steps 3 and
4 to complete the hardware connection.
Power adapter
Modem Router
3
Turn on the modem router.
2
Connect the modem router to the
ADSL splitter.
ADSL splitter
Connect to the phone (Optional)
4
Verify that the hardware connection
is correct by checking these LEDs.
Power
ADSL
On
On
On/Flashing
Notes
1. The ADSL LED takes about 1 to 2 minutes to stabilize.
2. If the Wireless LED
is off, please press the WiFi ON/OFF
button on the rear panel for 2 seconds, then check the
LEDs again in a few seconds.
Phone jack
1
Connect the ADSL splitter
to the phone jack.
Wireless

Advertisement

loading

Summary of Contents for TP-Link TD-W8961ND

  • Page 1: Connecting The Hardware

    Quick Installation Guide 300Mbps Wireless N ADSL2+ Modem Router TD-W8961ND / TD-W8961NB / TD-W8961N Phone jack * TD-W8961ND is used for demonstration in this QIG. Connect the ADSL splitter to the phone jack. Connecting the Hardware If you don’t need the phone service, just skip step 1 and directly connect the modem router to the phone jack with a phone cable, then follow steps 3 and 4 to complete the hardware connection.
  • Page 2 Configuring the Modem Router FAQ (Frequently Asked Questions) A Quick Start window will pop up automatically when logging in for the first time; otherwise, select Quick Start from the menu. Click NEXT to continue, then select your Time Zone and click NEXT. Q1.
