Enter The Pin From Your Ap Device - TP-Link TD-W300KIT User Manual

2. Open the Router's Web-based Utility and click QSS link on the left of the main menu. Then
Figure 4-4 will appear. Click Add device, then you can see Figure 4-11 Select Enter the
new device's PIN and enter the PIN value of the adapter shown in figure 4-9, click Connect.
3. When Figure 4-9 appears, the QSS configuration is complete.

4.2.2 Enter the PIN from your AP device

1. Open the QSS Utility and you will see Figure 4-7 . Click Next to continue. Then Figure 4-12
will appear. Select the third option and enter the PIN value which is labeled on the bottom of
the Router. Click Next.
TL-WN821N 300Mbps Wireless N USB Adapter

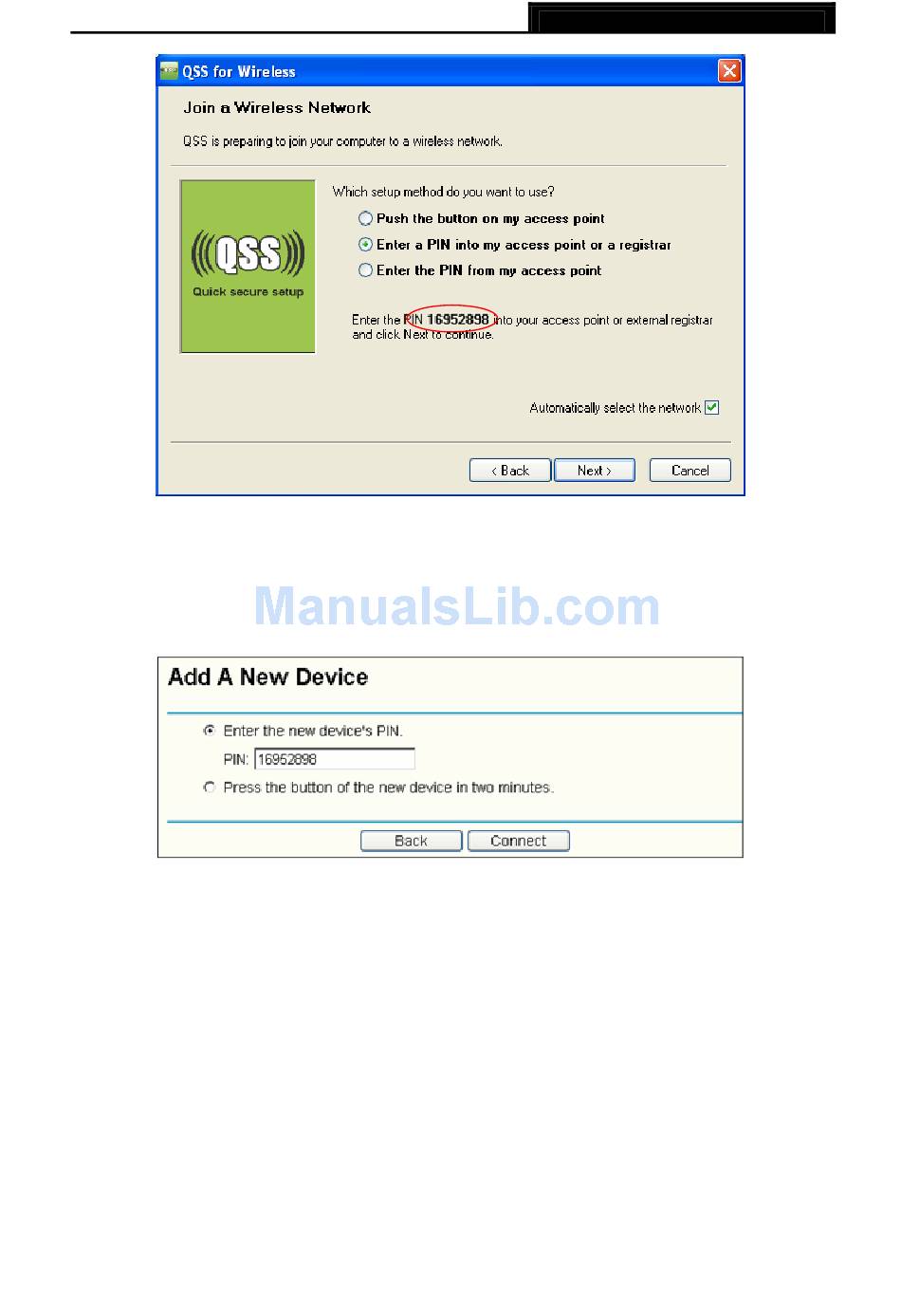

Figure 4-10
Figure 4-11
38
