2. Open the Router's Web-based Utility and click QSS link on the left of the main menu. Then
Figure 4-4 will appear. Click Add device, then you can see
new device's PIN and enter the PIN value of the adapter shown in Figure 4-10, click
Connect.
3. When Figure 4-9 appears, the QSS configuration is complete.

4.2.2 Enter the PIN from your AP device

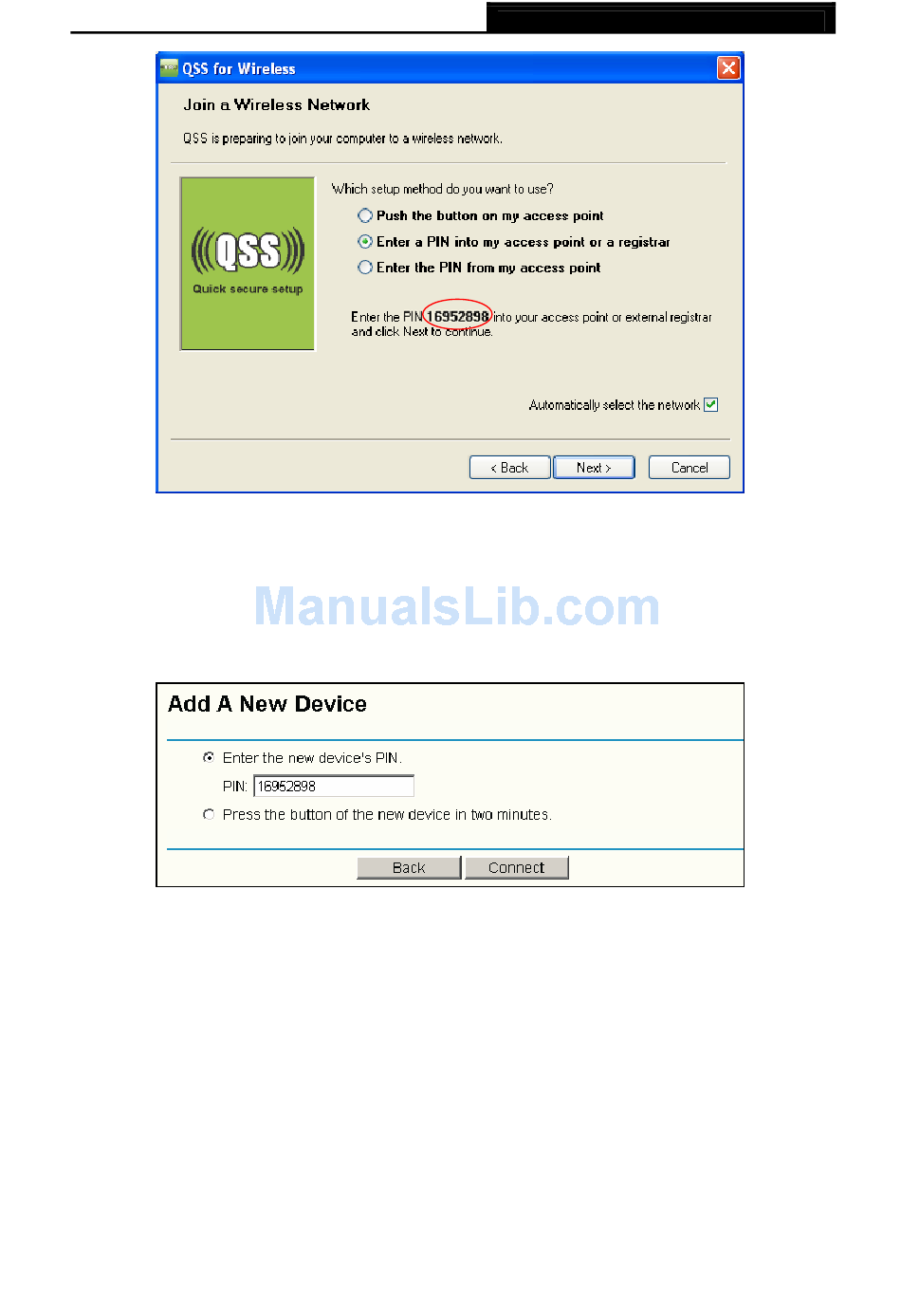

1. Open the QSS Utility and you will see Figure 4-7 . Click Next to continue. Then Figure
4-12will appear. Select the third option and enter the PIN value which is labeled on the
bottom of the Router. Click Next.
TL-WN721N 150Mbps Wireless N USB Adapter
Figure 4-10
Figure 4-11
37
Figure 4-10 Select Enter the
