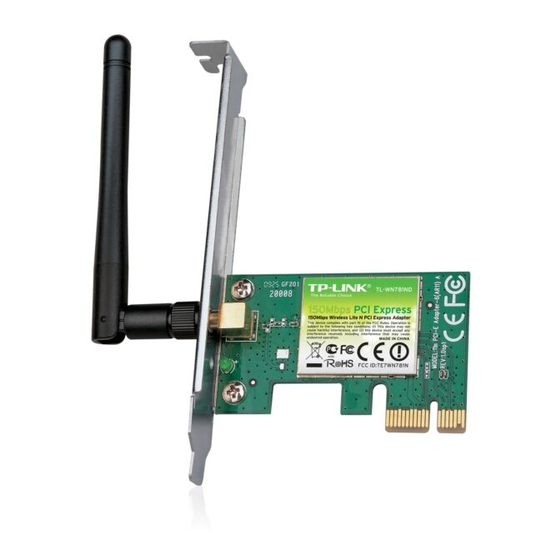

TP-Link TL-WN781ND
ENG (Установка)
Перейти в карточку товара
8 800 775 98 98

Advertisement

Table of Contents

   Also See for TP-Link TL-WN781ND

   Related Manuals for TP-Link TL-WN781ND

   Summary of Contents for TP-Link TL-WN781ND

  • Page 1 Инструкция для TP-Link TL-WN781ND ENG (Установка) Перейти в карточку товара 8 800 775 98 98...
  • Page 2 Power down your computer and unplug its power cord; Open the case and locate an available PCI-E slot on the motherboard; Insert the PCI Express Adapter into the PCI-E slot. Make sure that all of its pins are touching the slot's contacts. You may have to apply a bit of pressure to slide the adapter all the way in.
  • Page 3 This is the default setup wizard of Windows XP. For a smoother installation, please click “Cancel” and insert the provided TP-LINK Resource Click Cancel After inserting the provided Resource CD into your CD-ROM drive, the Setup Wizard will automatically pop up on your computer’s screen.
  • Page 4 Click Next Choose Install Driver Only Click Next Follow the step-by-step instructions to finish the driver installation. If prompted to ‘The software has not passed Windows Logo testing to verify its compatibility with Windows XP’, click Continue Anyway to continue. Click Finish...
  • Page 5 Connecting to the Wireless Router/Access Point If the Wirless Router/Access Point supports Wi-Fi Protected Setup (WPS) Note function, you are recommanded to use the QSS (Quick Secure Setup) to quickly connect to your wireless network. Please refer to the Appendix Connecting to the Wireless Router by QSS.
  • Page 6 Network key. It will connect to your network automatically. Installing Adapter Driver You may see the Found New Hardware Wizard when computer boots up. This is the default setup wizard of Windows Vista. For a smoother installation, please click “Cancel” and insert the provided TP-LINK Resource Click Cancel...
  • Page 7 After inserting the provided Resource CD into your CD-ROM drive, the Setup Wizard will automatically pop up on your computer’s screen. Choose Install Driver&Utility Click Next Follow the step-by-step instructions to finish the driver installation. If prompted to ‘Windows can’t verify the publisher of this driver software’, click Install the driver software Anyway to continue.
  • Page 8 Connecting to the Wireless Router/Access Point If the Wirless Router/Access Point supports Wi-Fi Protected Setup (WPS) Note function, you are recommanded to use QSS (Quick Secure Setup) to quickly connect to your wireless network. Please refer to the Appendix Connecting to the Wireless Router by QSS.
  • Page 9 If you don’t know the wireless network key, please consult the network Note administrator or log on to the setup page of your Wireless Router/Access Point with an Ethernet cable to check the wireless security settings. Please refer to the manual of your Wireless Router/Access Point or consult the manufactory’s technical support for more details.
  • Page 10 Installing the QSS Driver Click Install QSS Follow the step-by-step instructions to finish the QSS installation. Click Finish...
  • Page 11 Connecting to the Wireless Router Double click the icon on the desktop to open the QSS Utility, and this page will display. Click Next Select Enter the PIN from my access point Input the PIN printed on the back of the Router Click Next...
  • Page 12 Wait for the Adapter to connect to the Wireless Router. Click Finish to complete the connection. Click Finish...
  • Page 13: Technical Support

    Global Australia & New Zealand Tel: +86 755 26504400 Tel: AU 1300 87 5465 E-mail : support@tp-link.com NZ 0800 87 5465 Service time:24hrs, 7days a week E-mail: support@tp-link.com.au Service time: Monday to Friday Singapore 9:00 AM to 9:00 PM AEST...
  • Page 14 TP-Link TL-WN781ND ENG (Установка) Описание Отзывы...
