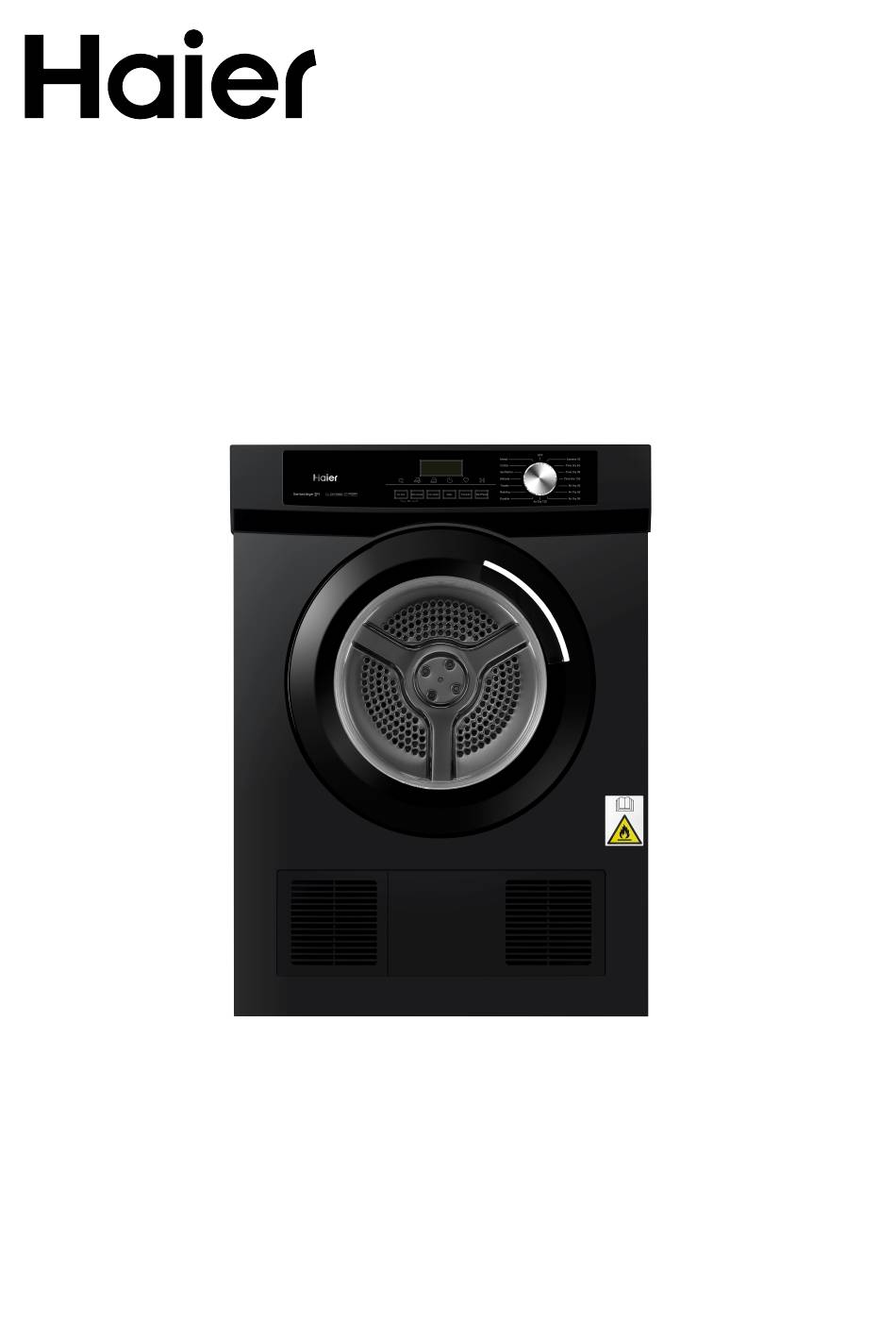

- Page 1 INSTALLATION INSTRUCTIONS USER GUIDE Vented clothes dryer Model: HD80-V939S...
-
Page 3: Table Of Contents
CONTENTS SAFETY AND WARNINGS INSTALLATION INSTRUCTIONS CONTROL PANEL DRYING CYCLES USING YOUR DRYER CLEANING YOUR DRYER BEFORE YOU CALL FOR SERVICE TROUBLESHOOTING IMPORTANT! SAVE THESE INSTRUCTIONS Please read these instructions carefully before using your tumble dryer. The instructions contain important information which will help you get the best out of the device and ensure safe and proper installation, use and maintenance. -
Page 4: Safety And Warnings
SAFETY AND WARNINGS Meaning of symbols on the dryer Warning: Risk of fire/Flammable materials Read the instructions ! WARNING! Fire Hazard fabrics that have washed with water. use heat t rubber textured ‘Air Dry’. dr er bef re the dr er r ces c st be bef re each... - Page 5 SAFETY AND WARNINGS Do not operate this product without the lint filter in place or allow lint to accumulate in or around the dryer. This dryer is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless given supervision or instruction concerning the use of the dryer by a person responsible for their safety.
-
Page 6: Spontaneous Combustion
These materials can, when heated, produce fire by spontaneous combustion. The maximum mass of dry textiles depends on your model, The HD80-V939S model is rated at 8kg. Do not overload your dryer. -
Page 7: Stacking Installation
SAFETY AND WARNINGS Your dryer has been designed to be able to be stacked on the top of a front load washing machine, ensure the washing machine is the same width as your dryer. Stacking installation Stacking bracket includes: Tools and parts required: Drill and 2.9mm bit 2 x Stacking bracket Phillips head screwdriver... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS Please read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections carefully before using your dryer. Unpacking 1 Remove all the packaging. 2 Tilt the dryer backwards and ‘walk’ it off the base one foot at a time. 3 Remove all packaging and accessories from inside the drum and ensure you remove protective covers from the door and console. - Page 9 INSTALLATION INSTRUCTIONS Venting Correct installation is very important for all dryers to ensure maximum efficiency and safety. IMPORTANT! Never run the dryer unless the airflow system is free from obstruction. There must be adequate ventilation to avoid the back flow of gases into the room from appliances burning fuels, including open fires, when operating the dryer.
- Page 10 INSTALLATION INSTRUCTIONS Free standing The dryer stands on the floor and can easily be moved into position. 1 Move the dryer into the desired position. Do not lift the dryer by the top panel. 2 Have a minimum clearance on all sides of at least 20mm.
- Page 11 INSTALLATION INSTRUCTIONS Mounting dryer on wall 1 Determine the position of the dryer on the wall and mark the bracket position. A minimum of 50mm is needed between the top of the dryer and the ceiling for ease of installation. If mounting above a washing machine, allow sufficient room to open the lid of the washer.
- Page 12 INSTALLATION INSTRUCTIONS Before a rear venting option is installed the dryer must be changed from the front venting factory setup. Remove the outlet grille from the front left-hand side and replace with the outlet cover from the rear left-hand side. These covers should be gently pried at the sides to prevent damage.
- Page 13 Do not touch or operate the dryer with wet hands or with bare feet. Do not operate this dryer if it has been damaged during transport. Contact your Haier trained and supported service technician. WARNING! The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
-
Page 14: Control Panel
CONTROL PANEL 11 12 13 14 15 16 1.Dry level button Press the Dry Level button to change the end dry level of the program. H1:Damp/Dry - This setting is recommended for garments that will be finished with an iron treatment. H2:Dry - This setting is recommended for the majority of garments;... - Page 15 CONTROL PANEL 5.Favourite button Choose a program and the desirable modifiers, then start the cycle. Press Favourite for 3 seconds to save the personalised options. The selection will become the default setting for that program and the Favourite icon will be ON on the display to indicate it. To restore the default parameters, select “Iron ready”and“Dry level”...
-
Page 16: Drying Cycles
— Time Dry garments Timed cycle that uses cold air to freshen — Air Dry garments *DEFAULT DRY LEVEL : Extra-Dry-H-3 ; Dry-H-2 ; Damp-H-1 Registration Cycle HD80-V939S Cotton,Dry level H-3 is the recommended energy saving cycle for everyday drying. -
Page 17: Using Your Dryer
USING YOUR DRYER IMPORTANT! Preparing your load Loading the dryer IMPORTANT! ryer, as this may damage your dryer and clothes. cause an electrical hazard. your dryer unless the care label specifically states it is safe to do so. uctions on the care label. your dryer. - Page 18 USING YOUR DRYER Activate the dryer Turn the knob to the program to power on your dryer. Select your desired drying cycle by turning the control dial. Set dry level Select your desired dry level by pressing the button,there are three drying temperatures you can choose from: H-1：The highest drying level and longer program running time...
-
Page 19: Cleaning Your Dryer
CLEANING YOUR DRYER IMPORTANT! If you wish to stop the dryer before the cycle has finished you MUST remove the clothes IMMEDIATELY and spread them out to cool. DO NOT leave the clothes in the dryer or bunched up in a clothes basket. Take extreme care as the drum and the load items may be extremely hot. -
Page 20: Before You Call For Service
Record the fault code and call your Haier trained and supported service technician to arrange service. If a fault code is being displayed, you can still turn your dryer off by pressing ‘Power’... -
Page 21: Troubleshooting
TROUBLESHOOTING The following is a list of problems you may encounter when using this appliance and some suggestions that may help to correct the problem. If you still have problems, please contact your Haier Repairer. PROBLEM POSSIBLE CAUSES WHAT TO DO... - Page 22 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Dryer is beeping, Dryer has a fault. Refer to page 18. displaying unfamiliar light patterns and/or a message on the digital display. Noises. Dryer is overloaded. Remove some items from the dryer. Dryer has a fault. Continuous beeping or a musical series of beeps with a message displayed on digital display.
- Page 23 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Linting. Lint filter not cleaned or replaced. Ensure the lint filter is cleaned after every cycle and replaced correctly. Refer to pages 17 and 18. Loads not sorted correctly. Dry lint givers separately from lint receivers. Dry similar colours together eg light coloured items with light coloured items, dark items with dark items.
- Page 24 Press ‘Power’ button to activate your dryer. Press it again to switch the dryer off. ‘Key Lock’ can be used to lock the buttons on your dryer.This will avoid accidental button presses. There are two drying settings with your dryer, Sensor Dry and Time Dry. The default cycle is “Normal –...
