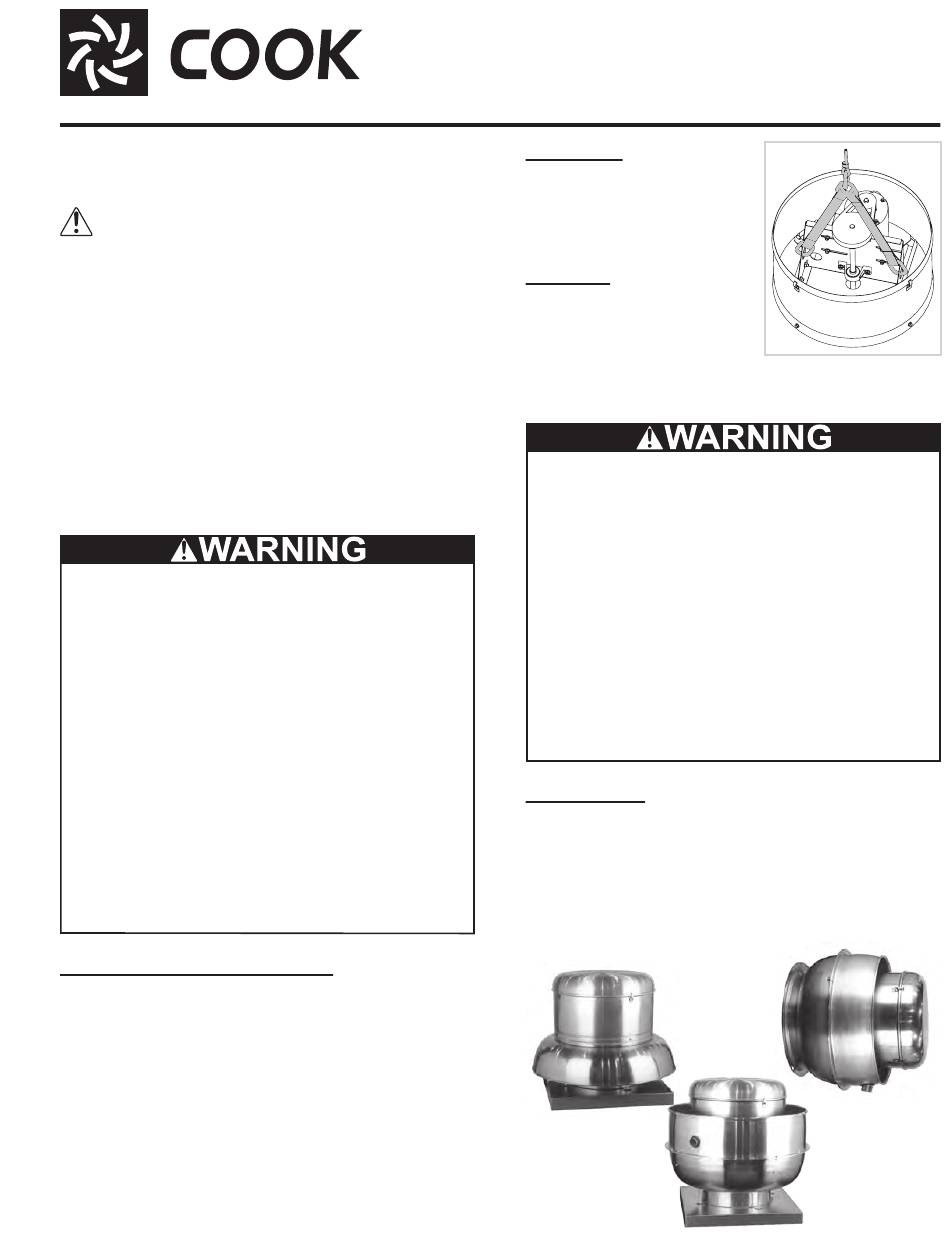

Loren Cook AC Installation, Operation And Maintenance Manual

Centrifugal roof & wall exhausters

Advertisement

Quick Links

®
This publication contains the installation, operation and
maintenance procedures for standard units of the AC &
VCR: Centrifugal Roof and Wall Exhausters.
Carefully read this publication and any
supplemental documents prior to any
installation or maintenance procedure.
Loren Cook Company's AC catalog & VCR catalog
provide additional information describing the equipment,
fan performance, available accessories and specification
data.
For additional safety information, refer to AMCA
publication 410-96, Safety Practices for Users and
Installers of Industrial and Commercial Fans.
All of the publications listed above can be obtained
from Loren Cook Company by phoning (417) 869-6474,
extension 166; by FAX at (417) 832-9431; or by e-mail at
info@lorencook.com.
For information and instructions on special equipment,
contact Loren Cook Company at (417) 869-6474.
Rotating Parts & Electrical Shock Hazard:
Disconnect electric power before working on unit.
Follow proper lockout / tagout procedures to ensure
the unit cannot be energized while being installed or
serviced.
A disconnect switch should be placed near the fan
in order that the power can be swiftly cut off, in case
of an emergency and in order that maintenance
personnel are provided complete control of the
power source.
Grounding is required. All field-installed wiring
must be completed by qualified personnel. All field
installed wiring must comply with National Electric
Code (NFPA 70) and all applicable local codes.
Failure to follow these instructions could result in
death or serious injury.
Receiving and Inspection
Carefully inspect the fan and accessories for any
damage and shortage immediately upon receipt of fan.
Turn the wheel by hand to ensure it turns freely and
does not bind.
Inspect dampers (if included) for free operation of
all moving parts.
Check dampers (if included) for free operation of all
moving parts.
Record on the Delivery Receipt any visible sign of
damage.
Centrifugal roof & wall exhausters
Installation, operation, and maintenance manual
Handling
Lift the fan by the lifting
lugs provided under top cap.
NOTICE! Never lift by the
shaft, motor or housing.
Storage
If the fan is stored for
any length of time prior to
installation, store it in its
original shipping crate and
protect it from dust, debris and
the weather.
Code Requirements & Environmental Effects:
The attachment of roof mounted fans to the roof
curb as well as the attachment of roof curbs to
the building structure must exceed the structural
requirements based on the environmental loading
derived from the applicable building code for the
site. The local code official may require variations
from the recognized code based on local data.
The licensed engineer of record will be responsible
for prescribing the correct attachment based on
construction materials, code requirements and
environmental effects specific to the installation.
Failure to follow these instructions could result in
death or serious injury.
Installation
If the fan was delivered with the motor unmounted, see
the maintenance sections for belt and pulley installation.
Wall Exhausters
If the fan is a wall mount unit and a grease terminator
or grease trough was not purchased, a 1-1/16 inch
diameter drain hole should be inserted on the bottom side
of the unit for drainage.
ACE
1
AC / VCR
Lifting lugs
ACW
ACRU,
ACSC & VCR

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC and is the answer not in the manual?

Questions and answers

Summary of Contents for Loren Cook AC

  • Page 1 Installation, operation, and maintenance manual ® This publication contains the installation, operation and Handling maintenance procedures for standard units of the AC & Lift the fan by the lifting VCR: Centrifugal Roof and Wall Exhausters. lugs provided under top cap.
  • Page 2: Smoke Control

    If your fan is a wall exhauster with a round base, a mounting template is shipped with the fan. Use the Downblast template to locate the necessary lag screws or anchor bolts on the wall. The fan can then be lifted and attached easily.
  • Page 3 Use the following diagrams to wire the motor. Typical Damper Motor Schematic Single Speed, Single Phase Motor Motor When ground is required, attach Ground A to ground A or B with no. 6 thread forming screw. To reverse, interchange T-1 and T-4. Transformer** Transformer** Line...
  • Page 4: Operation

    Wheel-to-Inlet Clearance The correct wheel-to-inlet clearance is critical to Electrical Shock & Fire Hazard: proper fan performance. This clearance should be verified before initial start-up since rough handling during Insulate Unused Leads Separately. shipment could cause a shift in fan components. Refer to wheel/inlet drawing for correct overlap.
  • Page 5: Maintenance

    Inspection Maintenance Inspection of the fan should be conducted at the first Fan Bearings 30 minute, 8 hour and 24 hour intervals of satisfactory operation. During the inspections, stop the fan and NOTICE! The fan bearings are provided prelubricated. inspect as instructed. Any specialized lubrication instructions on fan labels supersedes information provided herein.
  • Page 6 Motor Services Replace Pulleys / Belts Should the motor prove defective within a one-year period, contact your local Loren Cook representative 1. Clean the motor and fan shafts. or your nearest authorized electric motor service 2. Loosen the motor plate mounting bolts to relieve the representative.
  • Page 7: Troubleshooting

    Figure 1 Bearing Replacement The fan bearings are pillow block type ball bearings. 1. Remove the old bearing. 2. Remove any burrs from the shaft by sanding. 3. Slide new bearings onto the shaft to the desired location and loosely mount bearings onto the bearing support.
  • Page 8 Excessive Vibration and Noise ACE-B • Damaged or unbalanced wheel. • Belts too loose; worn or oily belts. • Speed too high. • Incorrect direction of rotation. Make sure the fan rotates in same direction as the arrows on the motor or belt drive assembly.
  • Page 9 ACW-D 70-100 ACW-B 13 20 ACW-D 120-180 ACW-D Parts ACW-B Parts Description Description Part 180- 70-101 120-195 120-165 Brace Brace Brace — — Post (4) Post (4) Post (4) Post (4) Post (8) — — Isolator (4) — — Power Assembly —...
  • Page 10 ACRU-D 70-100 Item ACRU-D VCRD ACRU-B VCR, VCR-HP & VCR-XP 100 120 270 - 270-490 (100- — Insulation — — Cut Off (HP & XP only) Top Cap Clip (4) Top Cap Top Cap Top Cap Clip (8) Clip (8) Clip (4) Upper Post (4) Upper...
  • Page 11 ACSC Item Model Replacement Part # Parts Description Size 275352 Top Cap Cylinder 120-135 275353 150-165 275355 180-195 275357 210-225 275359 275361 275362 275363 275364 275365 275366 275367 275368 254714 120-135 254715 150-165 254716 180-195 254717 210-225 254718 254719 Spun Support 254720 Plate (Round) 254721...
  • Page 12: Limited Warranty

    254437 Upon receipt by Loren Cook Company of your written complaint, you will be notified, 415798 within thirty (30) days of our receipt of your complaint, in writing, as to the manner...
