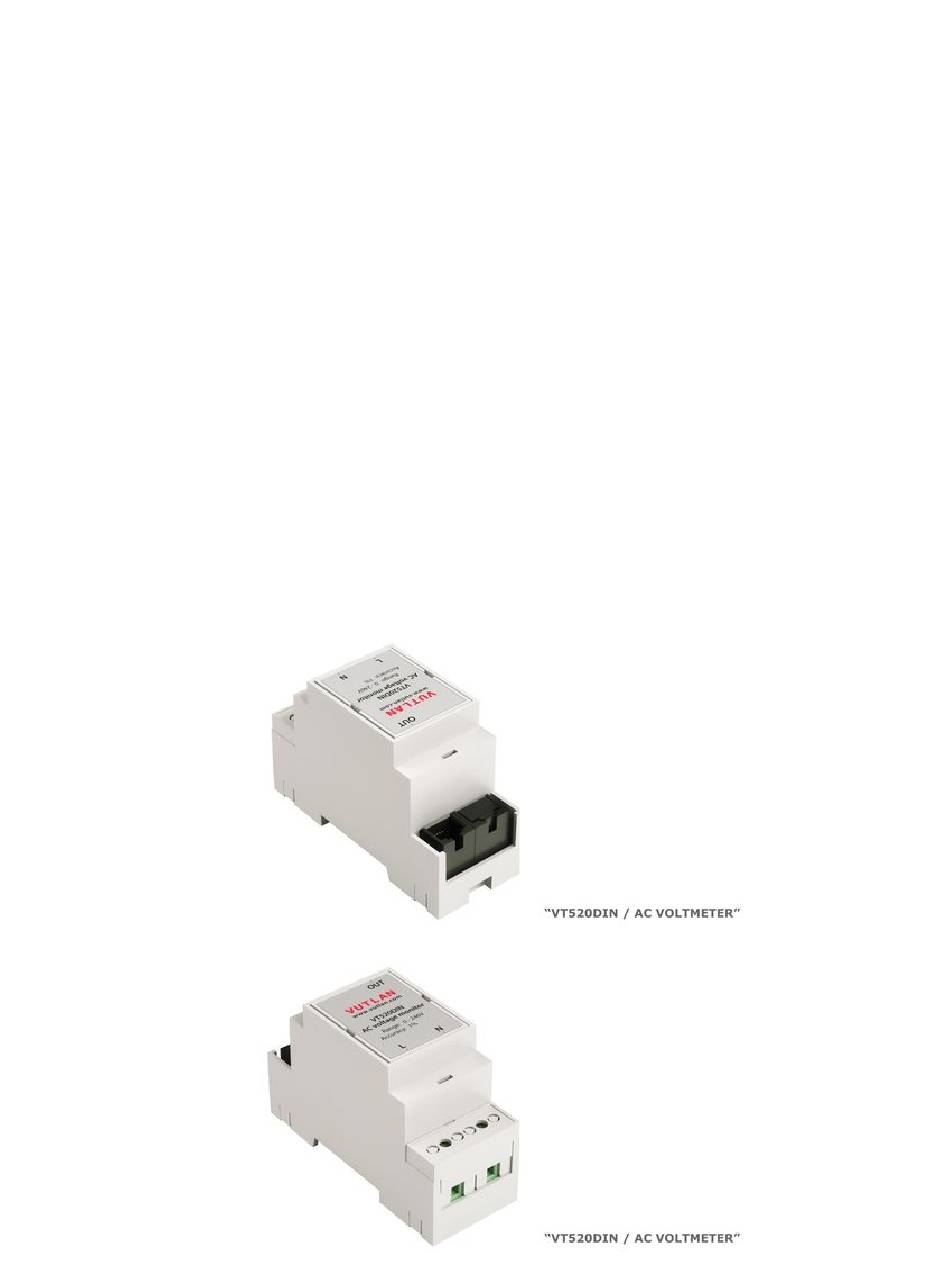

It has a high accuracy of 1%. Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. It is an analog plug-and-play sensor. The maximum amount of sensors and maximum length can be extended using the VT408 / Sensor extension unit.
Page 3
Package includes: Package content Description Quantity Voltmeter 1 pc plastic guard 1 pc DIN rail / wall clip 1 pc...
Safety instructions Carefully READ and FOLLOW the safety precautions outlined below BEFORE working with the voltmeter. Only qualified electrical workers should install this equipment. Such work should be performed only after reading this entire set of instructions. NEVER work alone. Before performing visual inspections, tests, or maintenance on this equipment, disconnect all sources of electric power.
Page 7
Mounting 1. The device is mounted onto a DIN rail 35mm bar. 2. Insert the wall clip / DIN rail clip into the enclosure.
Page 8
3. Insert/press the enclosure onto the DIN rail bar. 4. In case You need to unmount it, pull the wall clip / DIN rail guard with the screwdriver and pull the enclosure outwards.
Page 9
Wiring 1. Switch OFF the power of the AC line and follow other instructions from the section "Safety instructions". 5. Follow power cable specifications for the next step. Strip length Wire cross- Screw head section Specifications Terminal 6 - 7 mm, 0.23 - 2.5 mm², 0.09 Flat block...
7. Connect the device with the Vutlan monitoring system using a 6P4C RJ11 cable (cable is supplied). 9. Turn the AC line power back ON. Connecting analog sensors VT520DIN is an analog plug-and-play sensor. It is connected to an analog port of any Vutlan monitoring system. This section includes child pages: VT410 / DC voltage monitor...
Page 11
VT594 / BMS leak water sensor VT595 / Leak sensor & WLC / Leak detection cable VT520DIN / AC Voltage monitor (link) Connecting analog sensors Connect the analog sensor by a supplied RJ-11 (6P4C) cable to any analog port "A1 .. A8" or "Sensor" port. The determination of the sensor type and connection will occur automatically.
Page 13
1- Orange, 2- White Blue, 3- Blue, 4 - White Orange Colors are true for this telephone cable. Both ends match the colors and pinouts (identical). Please refer to the RJ connectors comparison table: Maximum cable length test ok = tested x = failed Model 100m...
Page 14
VT550 Wind velocity meter VT560 Smoke detector VT570 PIR sensor VT590 Spot water detector VT591 Water leak sensor Extending the number of analog sensors Using CAN extension "VT408 / Sensor extension unit" it is possible to increase the number of analog sensors connected to the monitoring unit up to 80 sensors.
Page 15
VT510 / Humidity sensor □ VT520 / AC Voltage detector □ VT520DIN / AC Voltmeter □ VT530 / Access sensor ■ VT540 / Vibration sensor □ VT550/ Wind speed meter □ VT560 / Smoke sensor ■ VT570 / PIR sensor □...
Page 16
Additional articles of interest Sensor configuration Adding logic schemes UNDEFINED Connection wiring/cable pinouts Cable 6P4C RJ11 Used for connecting the device with The transducer and the transceiver are installed together. Mount the transducer using M4 screws and M4 nuts. The distance between mounting holes is 50 mm. Mount the current transceiver using M4 screws and M4 nuts.
Settings tab To configure a sensor, go to "Main menu" >> "System tree" and click on the sensor element in the tree. A modal window with sensor properties will pop up. Change the needed settings and click "OK" or "Apply" at the bottom of the "Properties"...
Page 18
In the picture above, the "Current value" equals 41.0 and is represented by the small triangle. Currently, the triangle is green because it is situated in the "Normal" range. Hence the sensor says that the "Current state" is "Normal". This value is used by the system's "Logic schemes"...
Sometimes the temperature may stay at 25.5 °C and jump up and down by 0.1-0.3 °C. In this case, You will get too many notifications that the sensor is showing a Warning or Normal state. In this case, we need to use a Hysteresis. If the type “time”...
The following table describes potential problems and their possible causes. It also describes checks you can perform or possible solutions for each. After referring to this table, if you cannot resolve the problem, contact your local Vutlan sales representative for assistance.
Vutlan monitoring system. Frequently asked questions Question Answer What is max A for VT520 and There are no ampers through VT520/VT520DIN. VT520DIN? It has a 140K resistor on the input. Copyright: Vutlan s.r.o. (LLC) Remote Infrastructure Monitoring and Control 43 ul.Svornosti, 821 06 Bratislava,...
