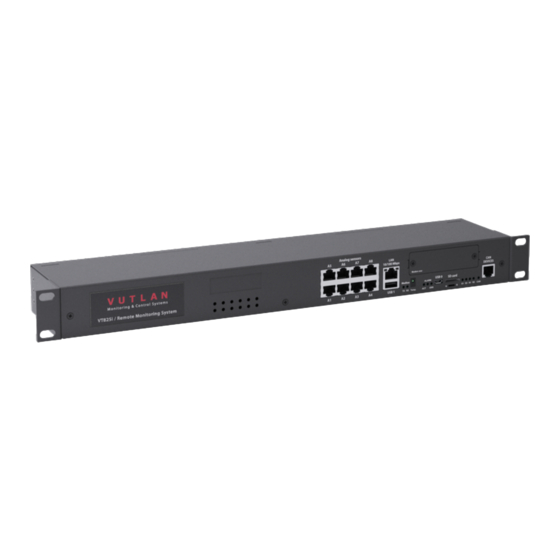

VT825i & VT825ii / Remote Monitoring Unit
Documentation page:
https://vutlan.atlassian.net/wiki/spaces/DEN/pages/2713911301
/VT825i+VT825ii+Data+Center+Monitoring+Unit
Product page:
https://vutlan.com/devices/162-55-vt825i-remote-monitoring-unit.html
Brochure: product version 1.2
Function and purpose

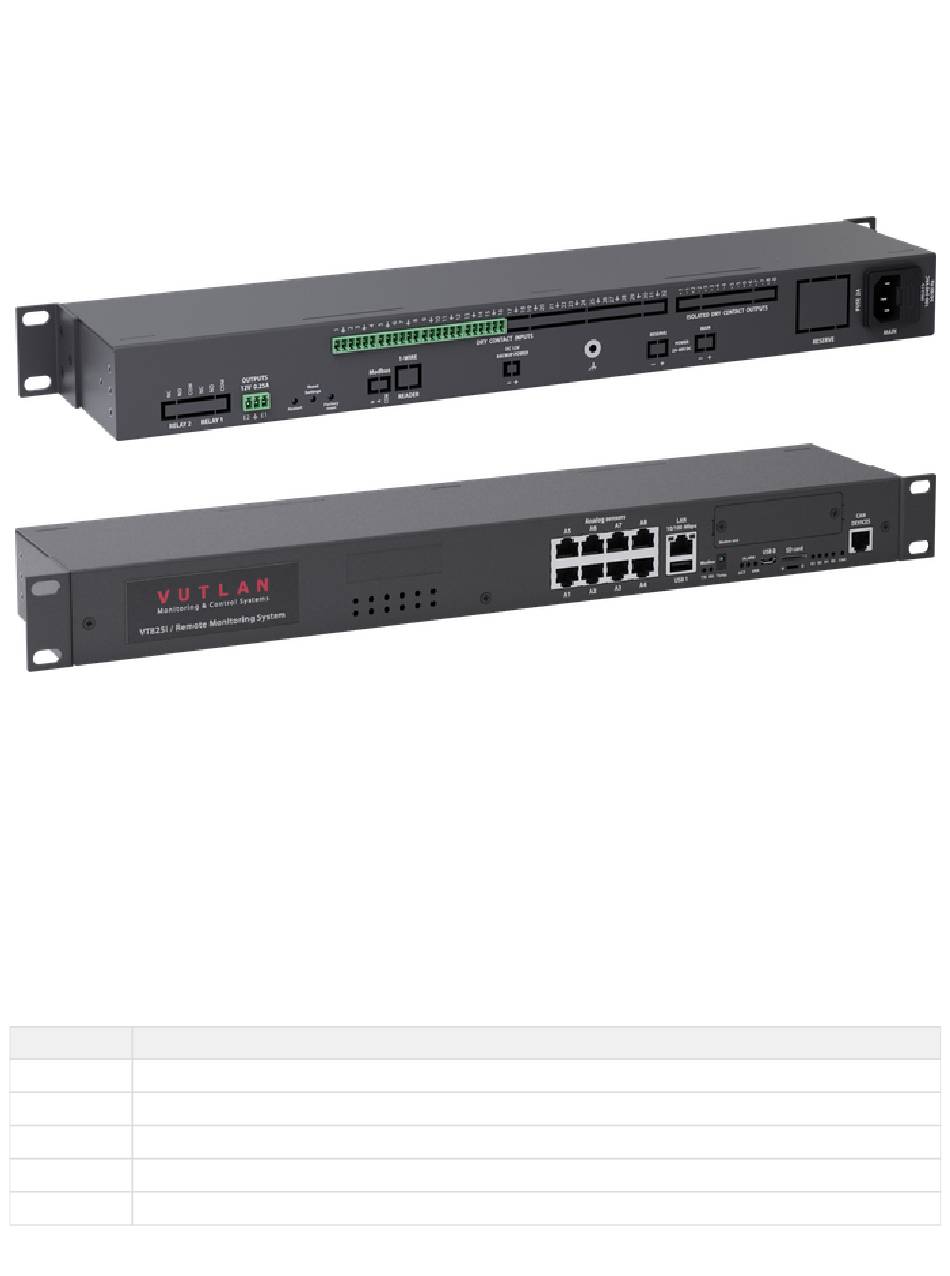

The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used
as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 1000
different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual
sensors, logic schemes, different types of notification, and control panels. Has a slot for an LTE modem for an ethernet
connection reservation.
Two order options:
VT825i has only x1 power inlet.
VT825ii has x2 power inlets, providing a redundant power supply for A&B power distribution.
Order options / Dimensions
System
Description
VT825i
x1 230V AC power inlet.
VT825ii
x2 230V AC power inlets, providing a redundant power supply for A&B power distribution.
VT825iDC
x1 230V AC and x1 24-48V DC power inlets.
VT825DC
x1 24-48V DC power inlet.
VT825DCDC
x2 24-48V DC power inlets.
