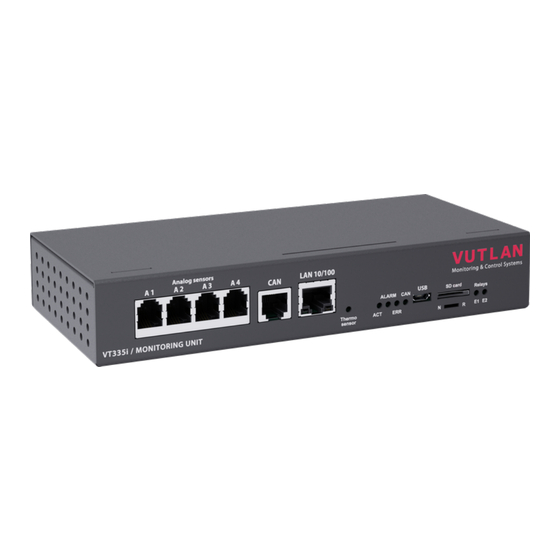

VT335i / Remote Monitoring Unit
Documentation page:
https://vutlan.atlassian.net/l/c/gTr18F3Q
Product page:
https://vutlan.com/remote-monitoring-units/164-vt335i-monitoring-unit.html
Function and purpose
The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used
as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 700
different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts. Has built-in Web interface with virtual
sensors, logic schemes, different types of notification, and control panels. Has a slot for an LTE modem for an ethernet
connection reservation.
VT335i is a new model and it replaces VT335S. New features include:
two times more powerful processor.
ability to handle more elements (+200)
slightly smaller dimensions
slot modem
power reservation
USB camera higher max. resolution
Physical Description

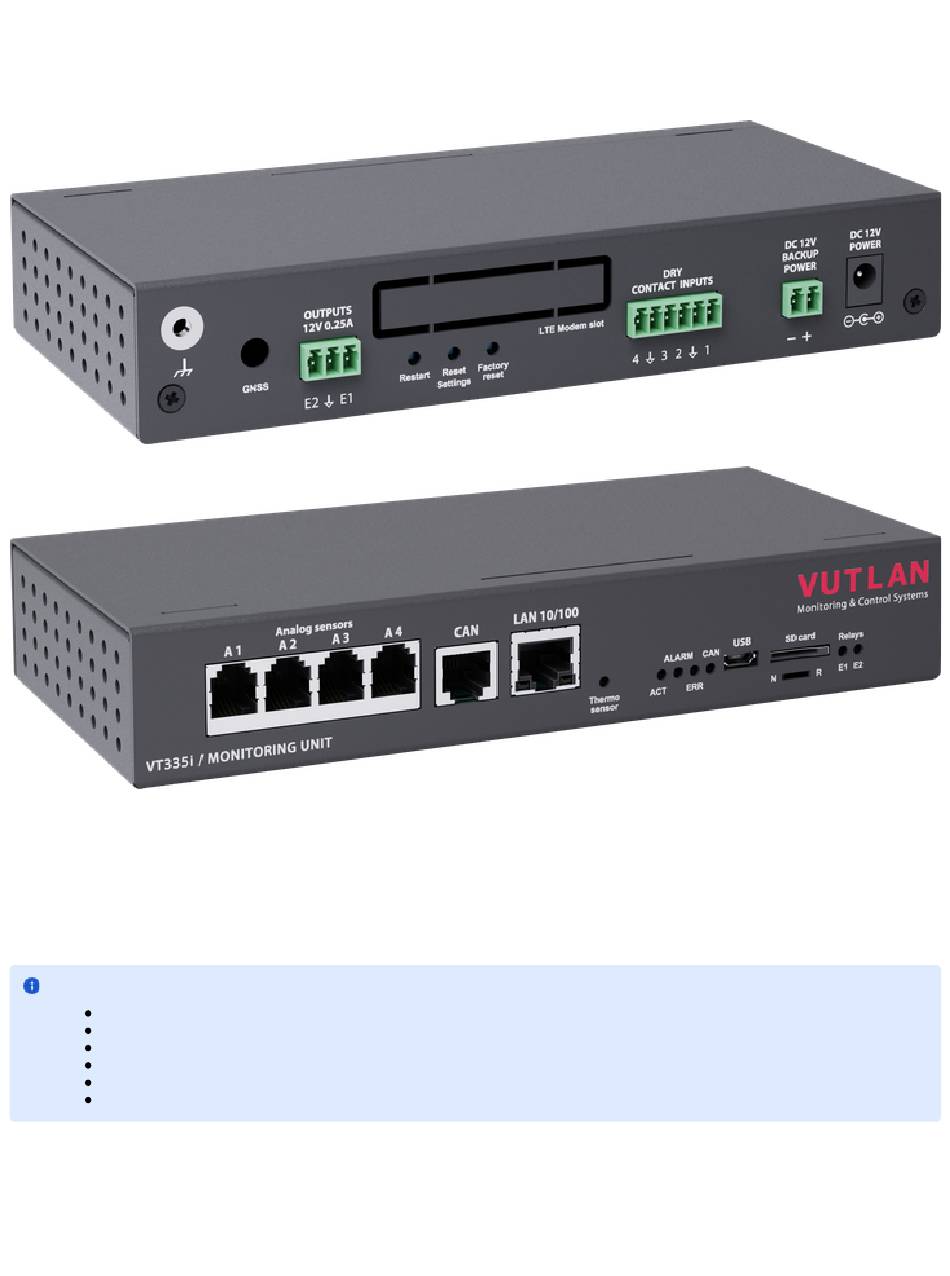

Front panel:
Advertisement
Table of Contents
Related Manuals for Vutlan VT960i
Summary of Contents for Vutlan VT960i
- Page 1 VT335i / Remote Monitoring Unit Documentation page: https://vutlan.atlassian.net/l/c/gTr18F3Q Product page: https://vutlan.com/remote-monitoring-units/164-vt335i-monitoring-unit.html Function and purpose The unit is used for environmental monitoring (e.g. temperature, humidity, voltage, leakage, smoke, airflow). It is also used as an I/O controller (e.g. door control, fans, generator, control panels, UPS, circuit breakers, alarms). Can use up to 700 different elements - notifications, triggers, timers, logic schemes, sensors, dry contacts.
- Page 2 Back panel: 1. " Analog sensors: A1 A8 " - x8 RJ12 6P4C analog sensor inputs with auto-sensing. Read instructions at " Analog sensors connection ", " Sensor configuration ". 2. " " - digital connector RJ12 6P4C for the connection of CAN sensors/extensions/devices on a CAN bus. Modules can be chained together.
-
Page 3: Connection Overview Diagram
7. " " - micro USB-port 2.0 is needed for USB camera recording, USB Flash for system logs, and the system restore. Read instructions at " Connecting USB camera ", " USB camera settings. How to save a video ", " Saving system logs on USB flash drive "... - Page 4 Drawing dimensions Installing LTE slot modem Product page: https://vutlan.atlassian.net/l/c/17p817yG Datasheet page: https://vutlan.atlassian.net/wiki/spaces/DEN/pages/2309947438/VT790+LTE+modem...
-
Page 5: Installation
Usage Can be installed in VT960i v3, VT960ii v3, VT855i v2.6, VT855ii v2.6, VT825i v2.6, VT825ii v2.6, VT335i monitoring systems. Description 4G LTE slot modem for Vutlan monitoring units. Allows to receive and send SMS messages. Provides Ethernet over 4G LTE. - Page 6 Step 2 Plug the VT740 slot modem shown on the picture into the opening. The board should slide into the guide rails (marked as “1”) and plug into the jack (marked as “2”). Step 3 3.1 Screw the main LTE antenna into “...
-
Page 7: Configuring The Modem
Please read the following section for the configuration instructions: Online documentation page link: Setting up a modem The direct page link for users with paper documentation: https://vutlan.atlassian.net/wiki/spaces/DEN/pages/1016347/Setting+up+a+modem Accessories “ VT124 / DIN rail holder ” for mounting on DIN rail. VT124 is ordered separately. The package includes a holder and... - Page 8 2. “ VT123 / Wall mounting brackets ” for mounting onto the wall. The package includes 2 brackets and screws. 3. “ VT122i / 19” holder ” for mounting onto a 19” 1U rackmount. Inventory Make sure that the contents of the delivery meet the following configuration. Report a missing or damaged component to your supplier.
- Page 9 Monitoring unit VT335i. 12V adapter. RJ-45 3m patch cable OTG Micro USB cable adater Terminal plug 6 pins, 3.5 mm - 1 pc Terminal plug 3 pins, 3.81 mm - 1 pc...
- Page 10 Terminal plug 2 pins, 3.81 mm -1pc Self-adhesive rubber foot - 4 pcs Configuration manual Warranty card...
-
Page 11: Technical Details
Technical details VT325, VT335i, VT336, VT825i, VT825ii, VT855i, VT855ii, VT960i, VT960ii are the monitoring units and can not connect to each other. For scalability please use extension units and embedded boards. All units except produced in DC / DC version. - Page 12 Logic schemes ● ● ● ● ● ● Modbus TCP/IP: read / write ● ● ● ● ● ● VT960i VT855i VT825i VT335i VT336 VT325 Power Power input: 90-230V 90-230V 90-230V Power input DC: ÷ ÷ ÷ □...
-
Page 13: Other Connectors
Modbus: (Max. 32 sensors, Max. line □ □ ● length 1000m) Reader 1-Wire □ □ □ Extension possible Video VT960i VT855i VT825i VT335i VT336 VT325 Video cameras: AV, USB, x4 IP USB, x1 IP USB, x1 IP USB, x1 IP USB, x1 IP... -
Page 14: Environmental Characteristics
● ● ● ● ● ● devices displayed in a hierarchy Event log panel: 500 logs List of latest sent SMS messages: Supported Vutlan environmental sensors Temperature, Outdoor Temperature, ● ● ● ● ● ● Humidity, Water leakage, Wind speed meter, Access sensor, Door...
