Summary of Contents for Vutlan HAT-100Q1

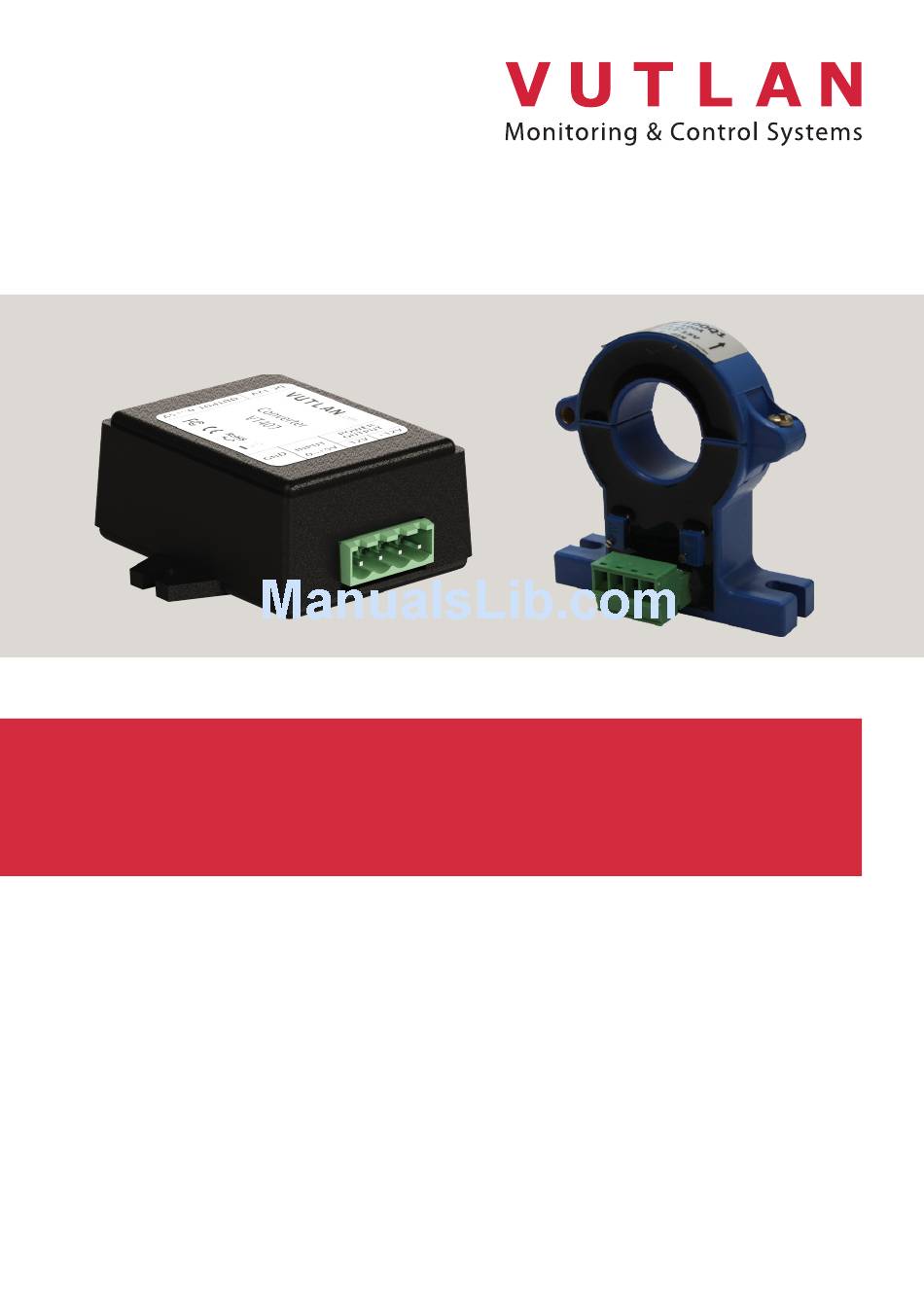

- Page 1 Quick Installation & Configuration manual AC Measurement HAT-100Q1 & VT407...
-
Page 2: Functional Description
Installation Manual AC measurement Functional description & • Max. distance for AC current transducer from monitoring unit is 50 meters. components Installation Function Simple open loop AC current transducer HAT- The transducer and the transceiver installed 100Q1 can measure AC currents in range of together. -
Page 3: Technical Specifications
Technical specifications VT407 / HAT-100Q1 Dimensions 68 × 47 x 26 mm HAT-100Q1 / AC current transducer Weight 160 g Dimensions 60 × 61 × 16 mm Inputs RJ-12 / RJ-11 Weight 150 g Operating Min. -10° C, Max.80° C... - Page 4 www.vutlan.com/forum/...
