VT460 / Smoke, humidity, temperature sensor (v8.1)
c
Function and purpose
Physical description
Drawings
Installation procedure
Notes on assembly
Installation
Connecting sensor
Configure the sensor
Testing the sensor
False alarms
Technical specifications
VT460
Safety instructions
Connecting CAN sensors
Configuring CAN sensors
Datasheet page:
https://vutlan.atlassian.net/l/cp/aJLea5p1
Product page:
https://vutlan.com/can-sensors/27-vt460-smoke-humidity-and-temperature-sensor.html
Version: 8.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vutlan VT460
Summary of Contents for Vutlan VT460
- Page 1 VT460 / Smoke, humidity, temperature sensor (v8.1) Function and purpose Physical description Drawings Installation procedure Notes on assembly Installation Connecting sensor Configure the sensor Testing the sensor False alarms Technical specifications VT460 Safety instructions Connecting CAN sensors Configuring CAN sensors Datasheet page: https://vutlan.atlassian.net/l/cp/aJLea5p1...
-
Page 3: Function And Purpose
Function and purpose VT460 is a smoke, humidity, and temperature sensor. VT460 has a high smoke sensitivity precise temperature, and humidity measurement. The detector responds to the appearance of the smoke of the low concentration. CAN devices and sensors can be chained together. Up to 10-32 CAN devices can be connected in a chain. You can... -

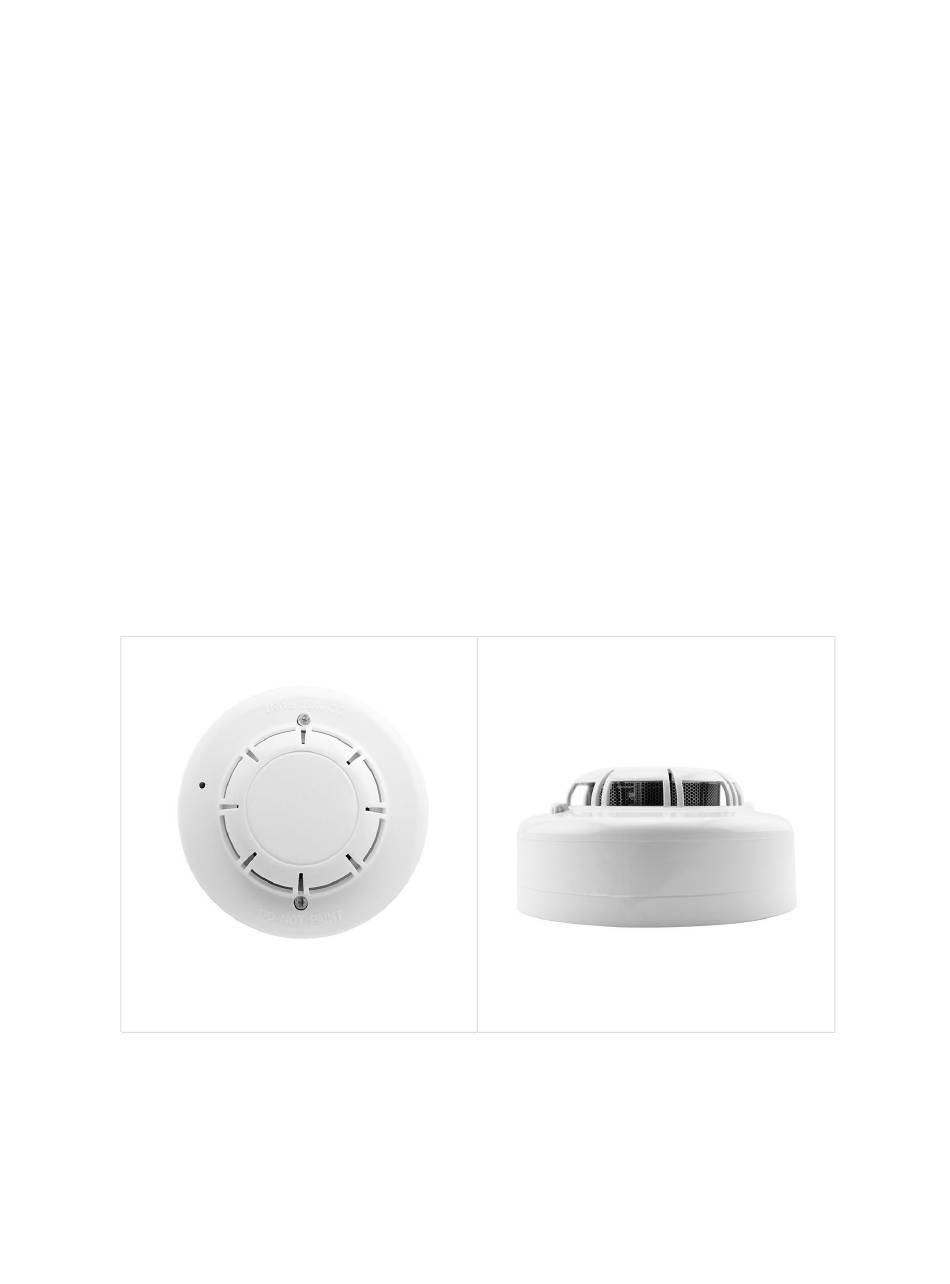

Page 4: Physical Description
Physical description... - Page 5 Temperature & humidity sensor Termination switch (Termination should be “ON” if the sensor is the last sensor in a CAN bus chain.) The sensor can not be used on its own. It must be used together with Vutlan monitoring systems.
- Page 6 Drawings...
-
Page 7: Installation Procedure
Installation procedure Notes on assembly It is vital to ensure that the smoke alarm is always assembled with the sensor head pointing downwards. In any other position, there is no guarantee that smoke will be detected. The smoke alarm must also be positioned so that it is ventilated with an adequate amount of air and the ventilation slots are not covered. - Page 8 Uncover the smoke detector head from the base. Attach the smoke sensor base to the mounting plate using the M4 x 10 screws provided. Replace the sensor head onto the base and secure it by twisting it until it locks home. Secure the mounting plate to the enclosure frame using the 4.8 x 19 screws.
-
Page 9: Connecting Sensor
Now we need to switch TR to position OFF for all sensors except the last sensor. And switch TR to the position for the last sensor. Depending on the version of VT460, please choose the below picture to help you accomplish that. Diagram Description... - Page 10 a) The last sensor in the CAN bus chain connection should have a Termination switch in the “ON” position. b) All other sensors should have the Termination switch in the “OFF” position.
-
Page 11: Configure The Sensor
Configure the sensor In the current example, we will connect x2 VT460 sensors connected in a chain. Once connected, Configuration Red LEDs at the back of the sensors will light up. After connecting the sensor to the CAN bus chain go to Vutlan Web Interface >>... - Page 12 Once the sensors are configured, they will appear in the window. Configuration Blue LED at the back of the sensors should light up. You should see both VT460 sensors in the CAN configuration panel. Operation White LEDs at the front of the sensor will blink every few seconds. This means the sensor is ready for...
-
Page 13: Testing The Sensor
After a while, depending on how much you sprayed, the sensor will automatically return to Normal mode. False alarms Avoid high-frequency noise and the impact of dust on the sensor, the noise and dust cause false alarms. Technical specifications VT460 Ports / RJ connectors x2 6P4C RJ-12 ports Type... -
Page 14: Safety Instructions
If a higher IP protection category is required for a special application, the smoke alarm must be installed in an appropriate housing or an appropriate enclosure with the required IP protection category. Connecting CAN sensors Page linked https://vutlan.atlassian.net/wiki/spaces/DEN/pages/1016276/CAN+devices+connection Configuring CAN sensors https://vutlan.atlassian.net/wiki/spaces/DEN/pages/1016351/CAN+configuration+panel+setting+up+CAN Copyright: Vutlan s.r.o. Remote Infrastructure Monitoring and Control 43 ul.Svornosti, 821 06 Bratislava, Slovak Republic, E.U. www.vutlan.com...
